Section15SUSPENSION
Subsection 01 (DIRECT ACTION SUSPENSION)
REMOVAL
Shock Absorber

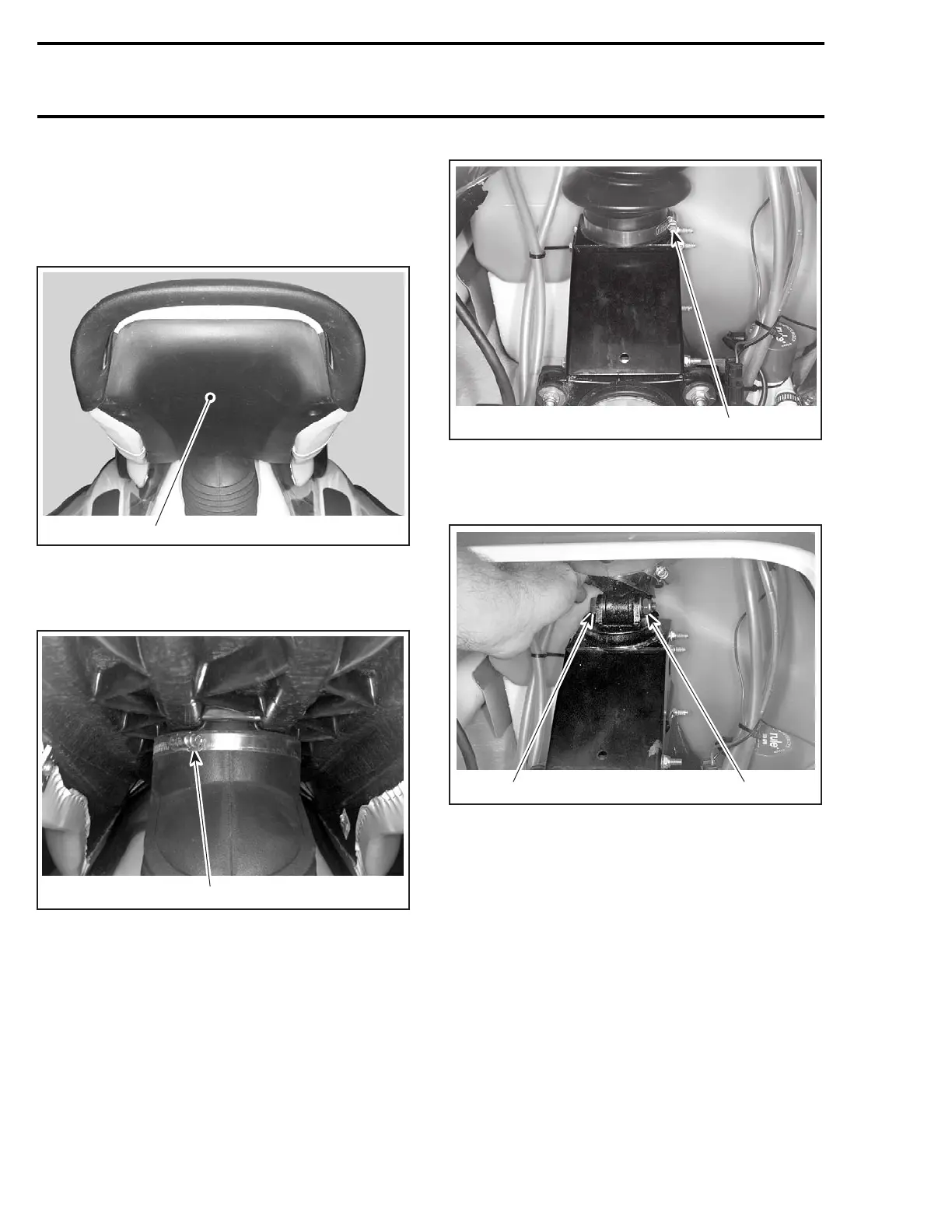

Loosen 4 screws and remove bottom cover of
seat.
F08L11A
1
1. Remove cover
Loosen gear clamp no. 2 of outer boot no. 3,then
pull outer boot downward.
F08L12A
1
1. Loosen gear clamp
Remove rear access panel from body.
Loosen lower gear clamp no. 4, then push inner
boot no. 5 upward.
F08I03B
1
1. Loosen gear clamp
Remove bolt no. 6 and lock nut no. 7 from shock
absorber lower support no. 8.
F08Q03A
2
1
1. Bolt
2. Lock nut
Tilt seat upward.
Loosen upper gear clamp no. 9 of inner boot no. 5.
