Section 16 HULL/BODY
Subsection 01 (ADJUSTMENT AND REPAIR)
SEAT REMOVAL
XP DI Models

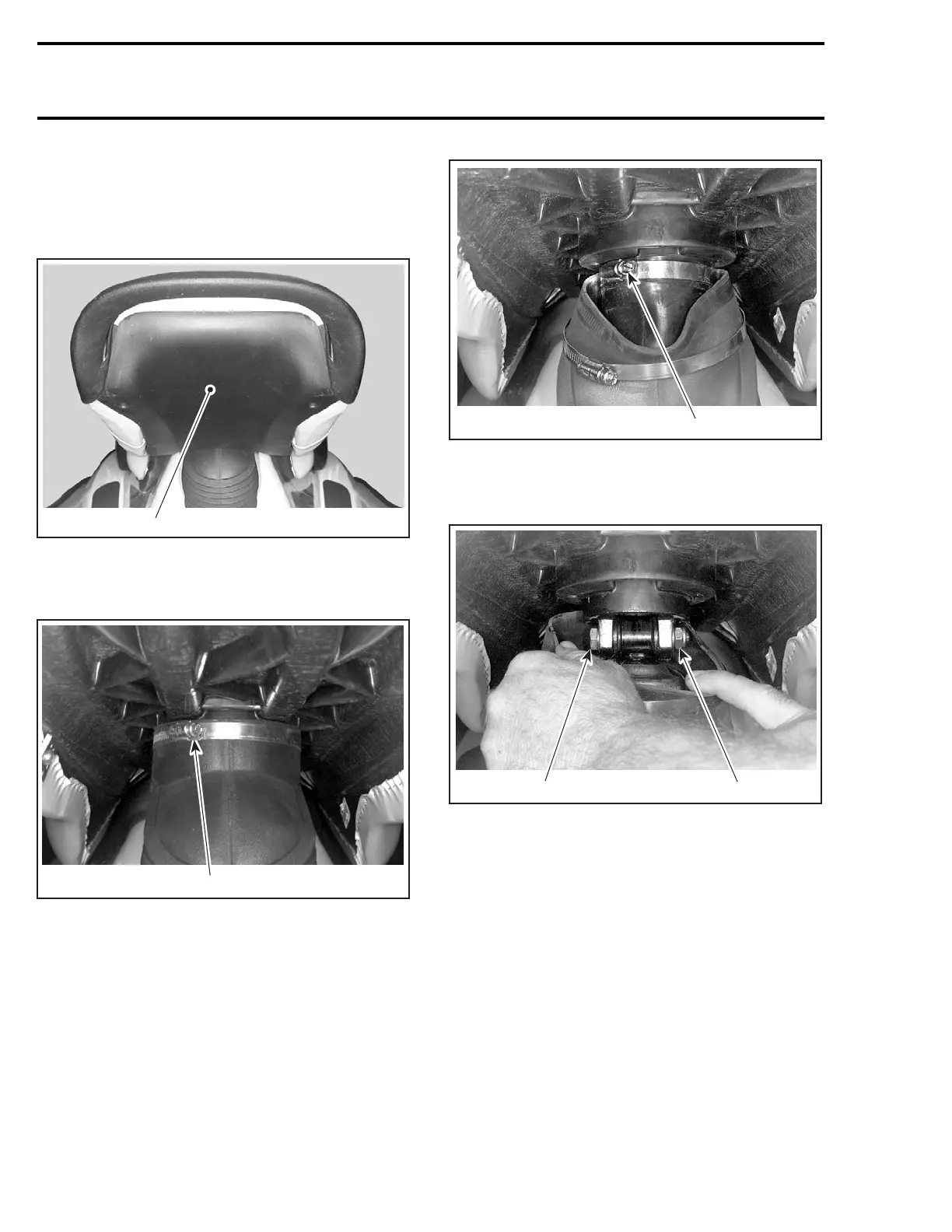

Loosen 4 screws and remove bottom cover no. 17
of seat.
F08L11A
1
1. Remove cover
Loosen gear clamp of outer boot; then, pull outer
boot downward.
F08L12A
1
1. Loosen gear clamp
Loosen gear clamp of inner boot; then, pull boot
downward.
F08L13A
1
1. Gear clamp
Remove bolt and lock nut from shock absorber
upper support.
F08Q04A
2
1
1. Bolt
2. Lock nut
Remove protective caps no. 18 and loosen screws
no. 19 to remove eyelet no. 20 on each side of
seat.
752 smr2004-Complete Line Up
