SeaDoo GTX 4-TEC Supercharged User Manual

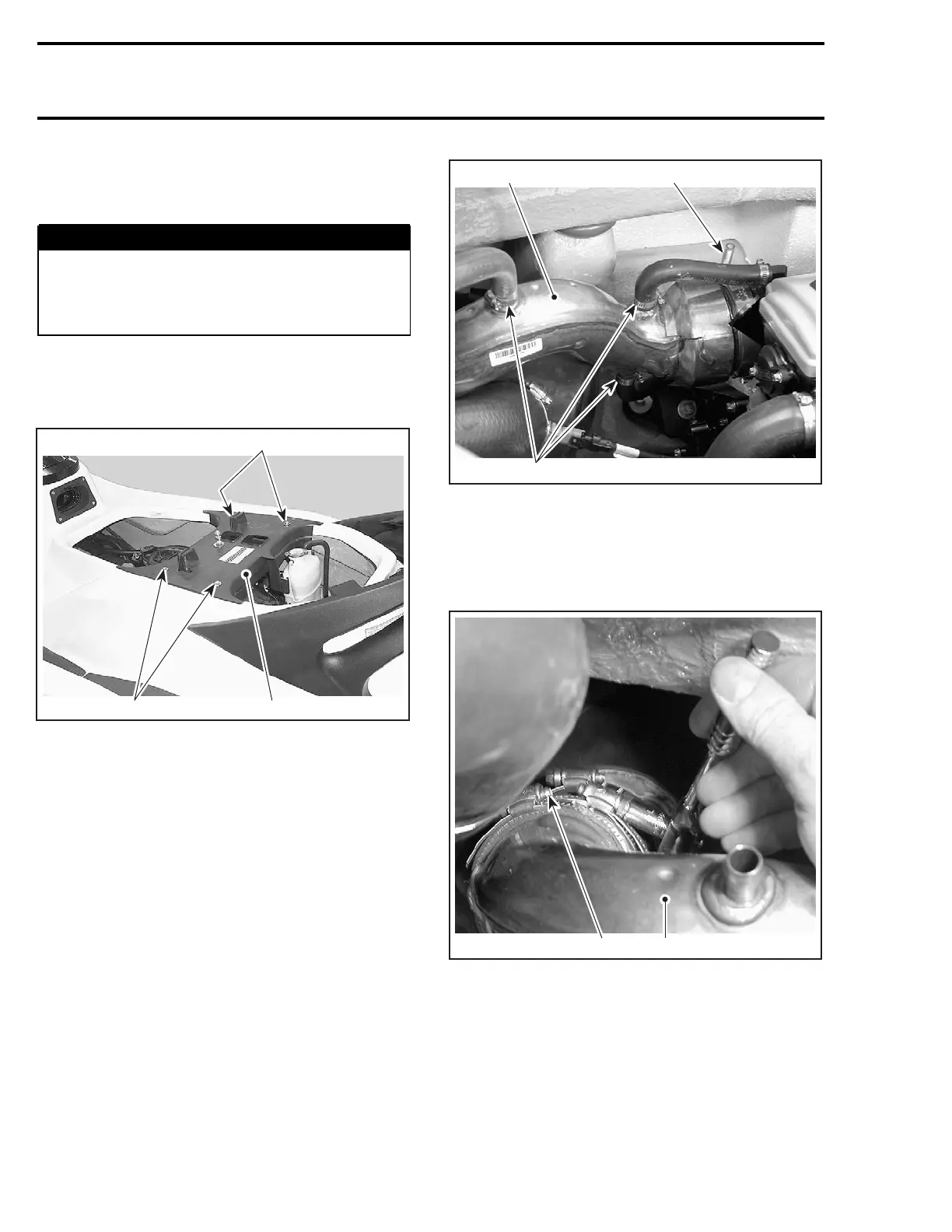

Section 05 ENGINE (4-TEC)
Subsection 03 (EXHAUST SYSTEM)
EXHAUST PIPE
Removal

WARNING
Certain components in the engine compart-
ment may be very hot. Direct contact may
result in skin burn. Let exhaust system cool
down prior to removing parts.
GTX 4-TEC Series
Remove seat and seat extension.
Remove seat support.
1
2
F18L2GA
2
1. Seat support
2. Remove screws
RXP 4-TEC Models
Remove seat.
Remove engine cover. Refer to HULL AND BODY.
All 4-TEC Engines
Disconnect the 3 cooling hoses from exhaust pipe
no. 1.
2
3
F18D0IA
1
1. Exhaust pipe
2. Gear clamp
3. Exhaust clamp
Loosen the exhaust hose clamp no. 3 to the top
portion of the hose between muffler no. 4 and the
exhaust pipe no. 1.
1
F18D0RA
2
1. Exhaust hose clamp
2. Exhaust pipe
Detach the strap no. 7 from the muffler using the
spring installer/remover (P/N 529 035 989).
210 smr2004-Complete Line Up
www.SeaDooManuals.net

SeaDoo GTX 4-TEC Supercharged Specifications

General

Seating Capacity	3
Model	GTX 4-TEC Supercharged
Displacement	1494 cc
Manufacturer	Sea-Doo
Category	Personal Watercraft
Fuel Type	Unleaded gasoline
