Section 07 ENGINE MANAGEMENT (DI)
Subsection 03 (DIAGNOSTIC PROCEDURES)

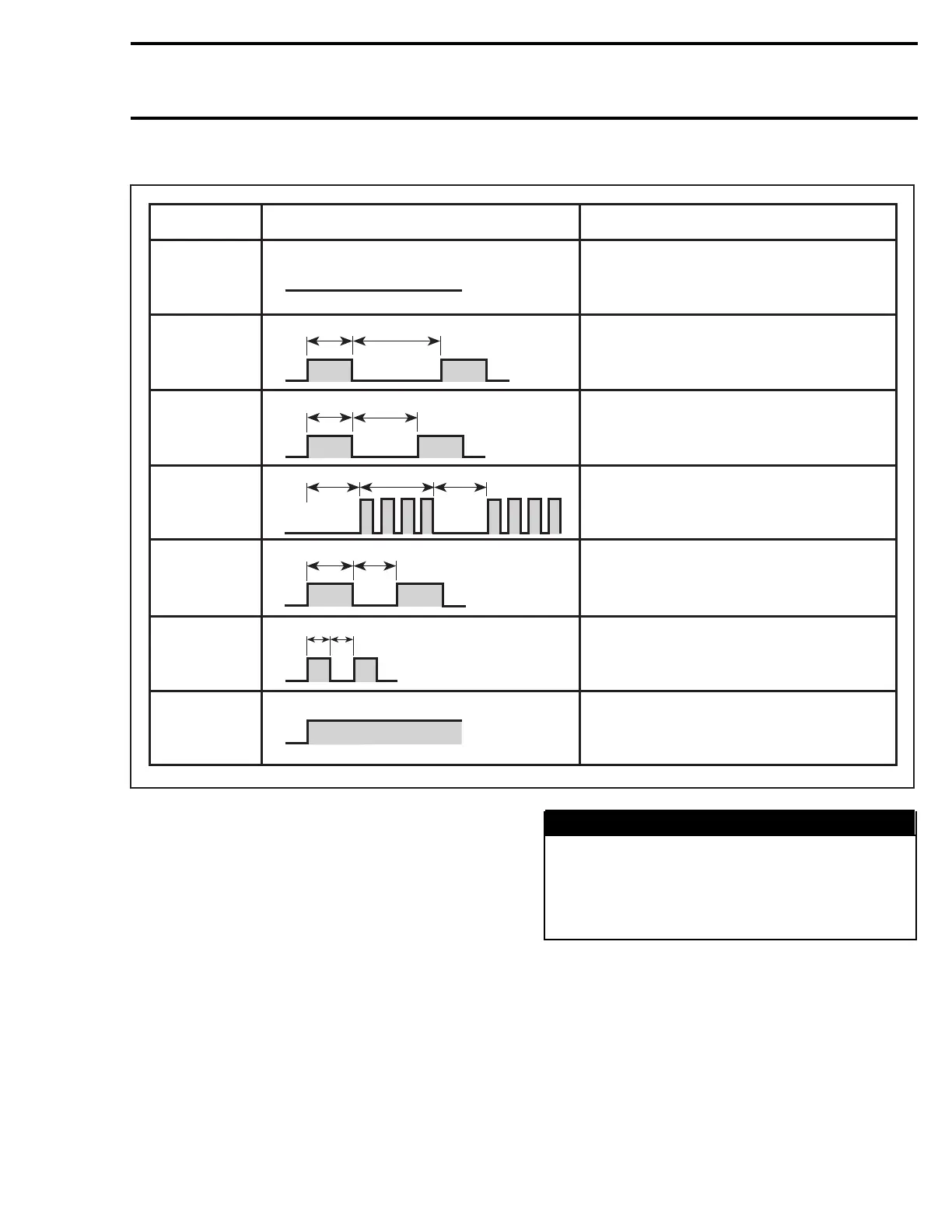

Buzzer Code
Always OFF
2 second beep every 15 minutes
2 second beep every 58 seconds
2 second beep every 2 seconds
Always ON (continuously beep)
1 second beep every second
BUZZER PATTERN
BUZZER
CODE
5
3
4
2
1
NOTE
6
7
4 short beeps every 3 seconds
2 SEC.
15 MIN.
58 SEC.
ON
OFF
2 SEC.
2 SEC. 2 SEC.
1 SEC.
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
1 SEC.
3 SEC.
4 short beeps
ON
OFF
3 SEC.
F18R0BS
VCK
(VEHICLE COMMUNICATION
KIT)
The VCK (Vehicle Communication Kit) (P/N 529
035 981) is the primary tool to diagnose fuel in-
jection related problems.
B.U.D.S. is designed to allow, among other things,
the programming of safety lanyard(s), entering
customer information, engine monitoring, sensor
inspection, diagnostic options and adjustment
such as the Throttle Position Sensor (TPS) and
the ignition timing setting.
For more information pertaining to the use of the
software B.U.D.S., use its help which contains de-
tailed information on its functions.
WARNING
If the computer you are using is connected
to the 110 Vac power outlet, there is a poten-
tial risk of electrocution when working in con-
tact with water. Be careful not to touch water
while working with the VCK.
