Section10FUELSYSTEM
Subsection 01 (FUEL CIRCUIT)
1
F18F0AA
1. Dart
REMOVAL
Fuel Filter
Carburetor-Equipped Models
Turn the fuel valve OFF then remove the seat.

WARNING
The engine must not be running and fuel
valve must be set to OFF position. Gasoline
is flammable and explosive under certain
conditions. Always work in a well ventilated
area.
Unscrew fuel filler cap no. 2 to remove any fuel
pressure in system.

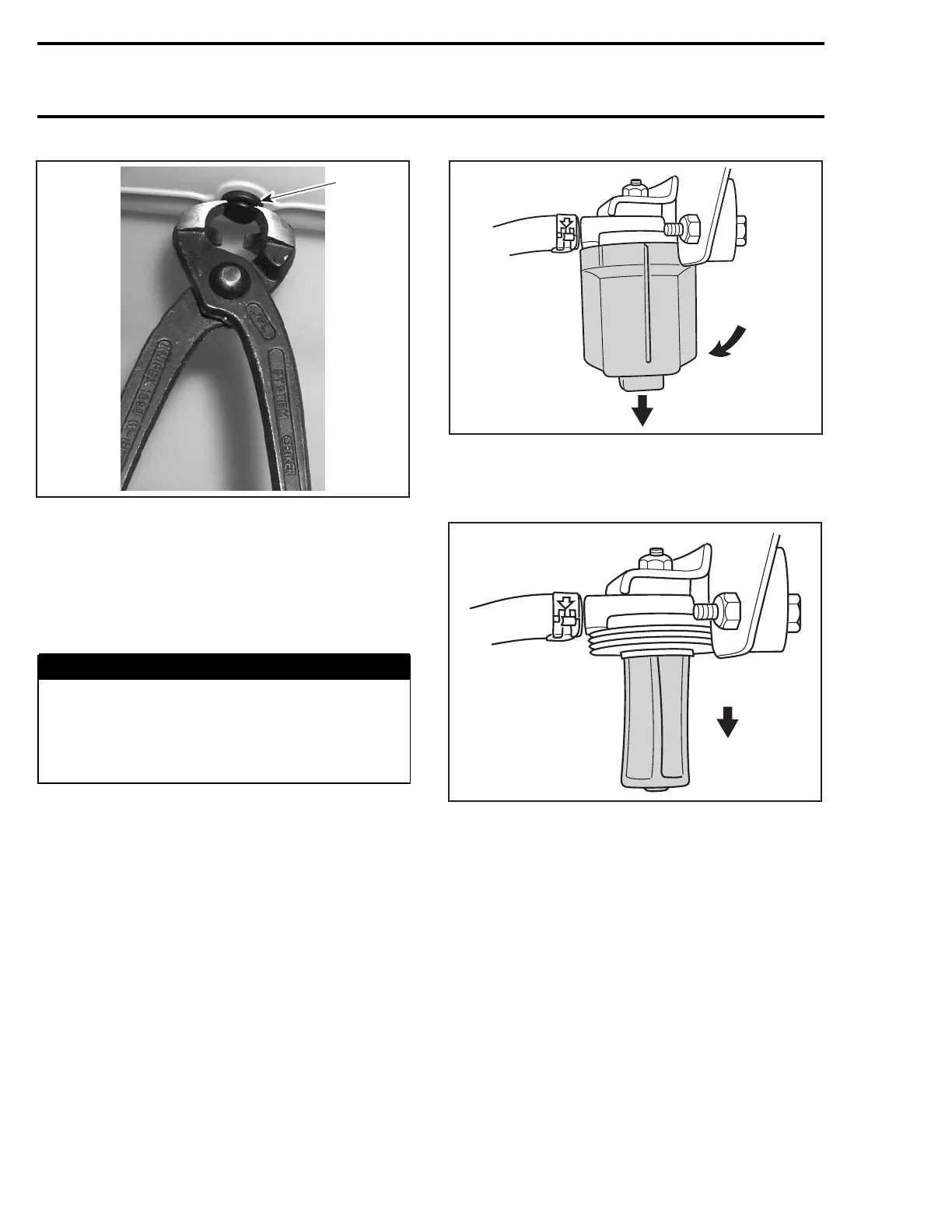

Unscrew the fuel filter bowl no. 3 counterclock-
wise then pull toward the bottom.
F01F01B
1
2
TYPICAL
1. Loosen counterclockwise
2. Pull
Pull fuel filter no. 4 toward the bottom.
F01F04A
TYPICAL
RFI and 4-TEC Models
The fuel pump assembly no. 5 has to be removed
from the fuel tank no. 6 to have access to the fuel
filter. Refer to the appropriate ENGINE MANAGE-
MENT section.
In-Line Filter
DI Models
A replaceable in-line filter no. 7 is located near the
fuel pump. Refer to ENGINE MANAGEMENT (DI)
section.
