Section 08 ENGINE MANAGEMENT (4-TEC)
Subsection 02 (COMPONENT INSPECTION AND ADJUSTMENT)
R1503motr184A
123

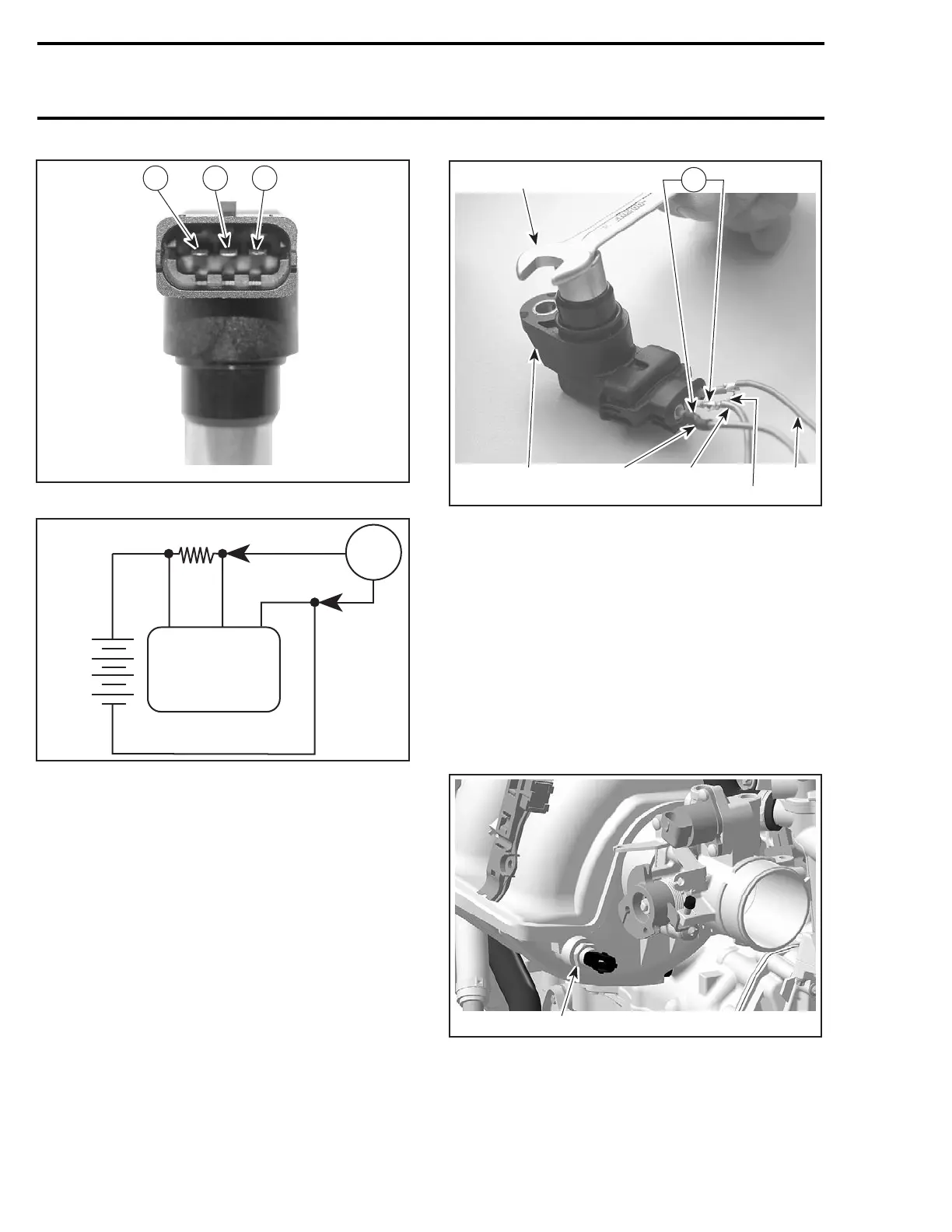

CAPS PIN-OUT
CAPS
1200 W
123
12 V
+
-
V
R1503motr208A
Voltmeter
Touch the CAPS with a conductor (ex.: screwdriv-
er) and look if the voltage at the multimeter switch-
es from 12 V to less than 1 V.
2
R1503motr207A
1 Pin 1 Pin 2
1200 W resistor
Pin 3
V
1. CAPS
2. Conductor
If the voltage is not good, replace the CAPS.
Replacement
Unscrew the retaining screw and replace the
CAPS. Ensure to reinstall O-ring.
Apply Loctite 243 (blue) on thread and torque to
6N•m(53lbf•in).
MANIFOLD AIR TEMPERATURE
SENSOR (MATS)
1
R1503motr171A
TYPICAL — INTAKE MANIFOLD
1. Manifold air temperature sensor (MATS)
426 smr2004-Complete Line Up
