Section 07 ENGINE MANAGEMENT (DI)
Subsection 02 (COMPONENT INSPECTION AND ADJUSTMENT)
WARNING
Always wipe off any fuel spillage from the wa-
tercraft. While dealing with fuel or fuel sys-
tem always work in well ventilated area.
F08R06A
Installation
For installation, reverse the removal process but
pay attention to the following.
Install the studded C-ring, if it had to be removed
during fuel pump removal procedure. Check for
cracks, bends or damage, replace if necessary.
WARNING
Always install new rubber washers under-
neath the nuts while installing the fuel pump.
Apply Loctite 243 on nut threads.

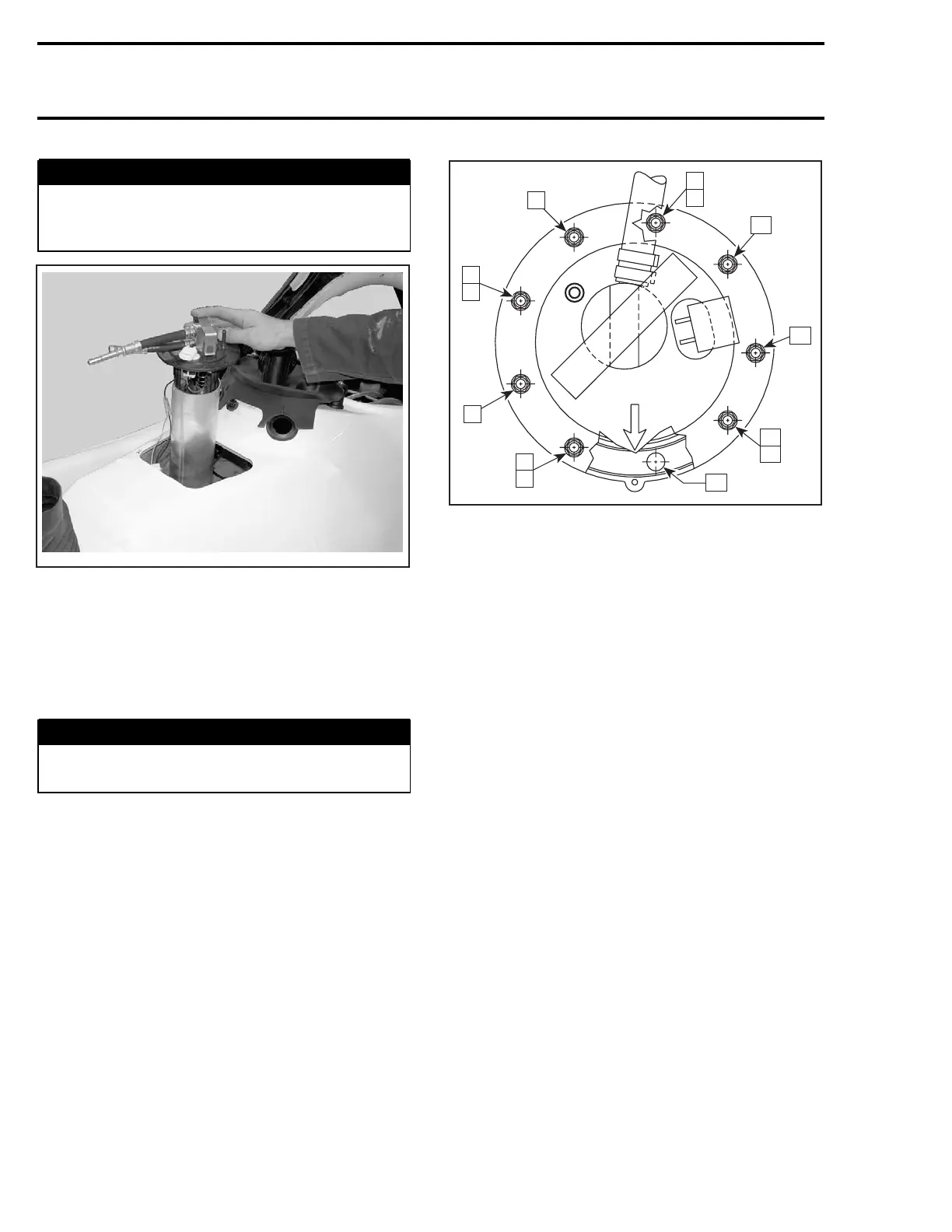

Install fuel pump on fuel tank and torque nuts to
2.5 N•m(22lbf•in).
Ensure to align the arrow with the dot on the gas-
ket towards the LH side of fuel tank.
10
11
9
2
12
5
1
6
7
3
8
4
13
F18F09B
TORQUE AS PER SEQUENCE
FUEL FILTERS
Fuel Pump Filter
Removal
The fuel pump assembly has to be removed from
the fuel tank to have access to the fuel filter. Refer
to the section above for more detail.
Remove fuel pump.
Turn fuel pump up side down. Using a small flat
screwdriver, remove the fuel filter by prying the
inner plastic ring.
354 smr2004-Complete Line Up
