Section 16 HULL/BODY
Subsection 01 (ADJUSTMENT AND REPAIR)
A
2
F17L0QA
1

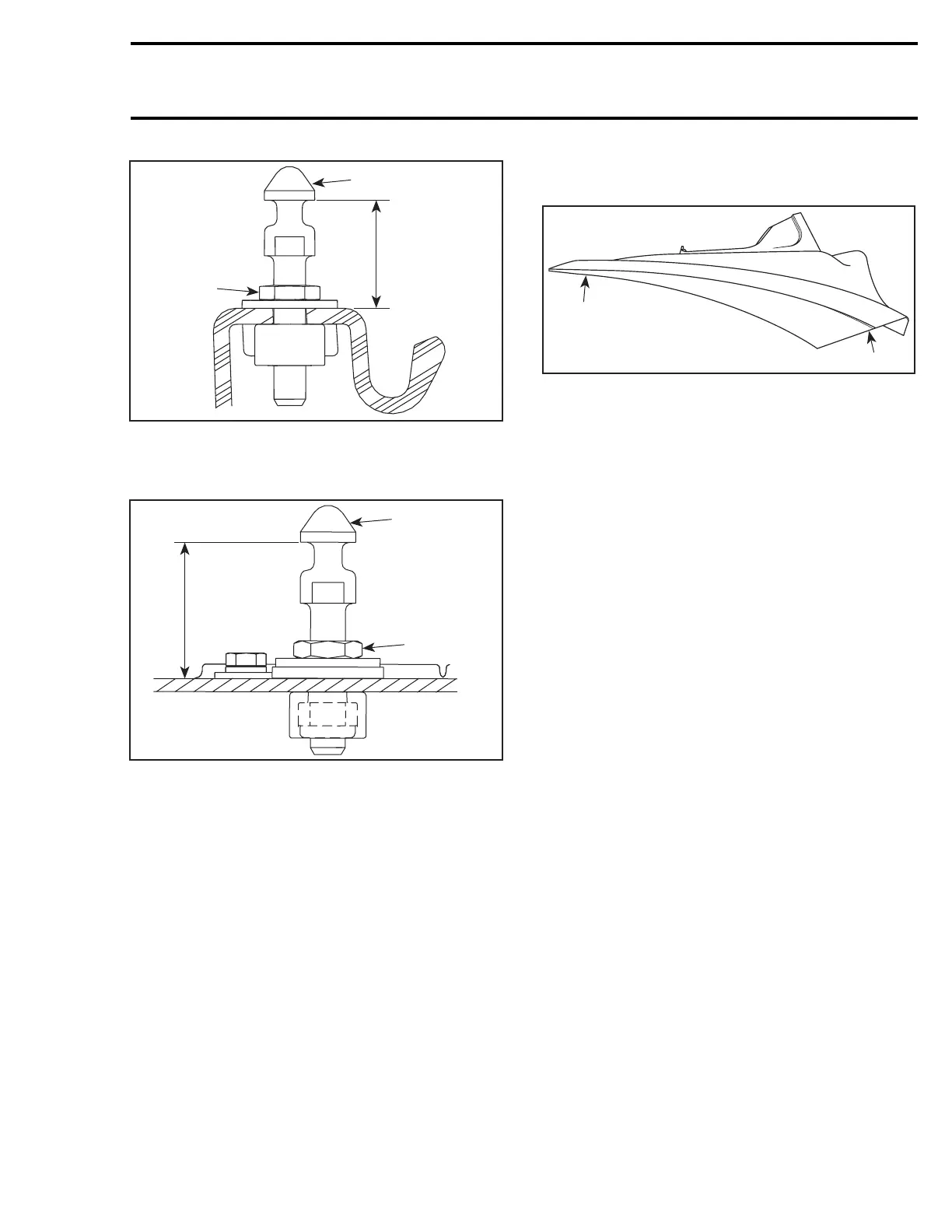

GTI SERIES — REAR SEAT
1. Lock pin
2. Adjustment nut (apply Loctite 243). Torque to 5 N•m(44lbf•
in)
A. 34 ± 1 mm (1-11/32 ± 3/64 in)
A
2
F16L0TA
1
RXP 4-TEC MODELS
1. Lock pin
2. Adjustment nut (apply Loctite 243). Torque to 5 N•m(44lbf•
in)
A. 36 ± 1 mm (1-35/64 ± 3/64 in)
STORAGE COMPARTMENT
INNER SHELL
Removal and Installation
GTI Series
To remove inner shell, proceed as follows:
CAUTION: Failure to follow this order may lead
to damaging inner plastic studs.
Remove retaining screws.
Gently pull on large end (rear end) and pull apart
towards the small end (front). See illustration.
1
F16L05A
2
1. Gently pull starting this end
2. Finish with this end
For installation, proceed as follows:
• Sand both inner and outer shells in area to be
glued (except GTI models).
• Clean to remove any dust with isopropylic alco-
hol. Let dry.
• Apply a 2 mm (3/32 in) bead of Loctite 454.
• Reinstall inner shell with its retaining screws.
• Tighten screws starting with the one at the
small end (front) and finish with rear end. Care-
fully hand tighten.
GTX 4-TEC
To remove inner shell, proceed as follows:
CAUTION: Failure to follow this order may lead
to damaging inner plastic studs.
– Open storage cover.
– Remove access panel.
– Disconnect multi-function connector.
smr2004-Complete Line Up 737
