Section 13 PROPULSION
Subsection 04 (VARIABLE TRIM SYSTEM)
F01J1WA
1
1

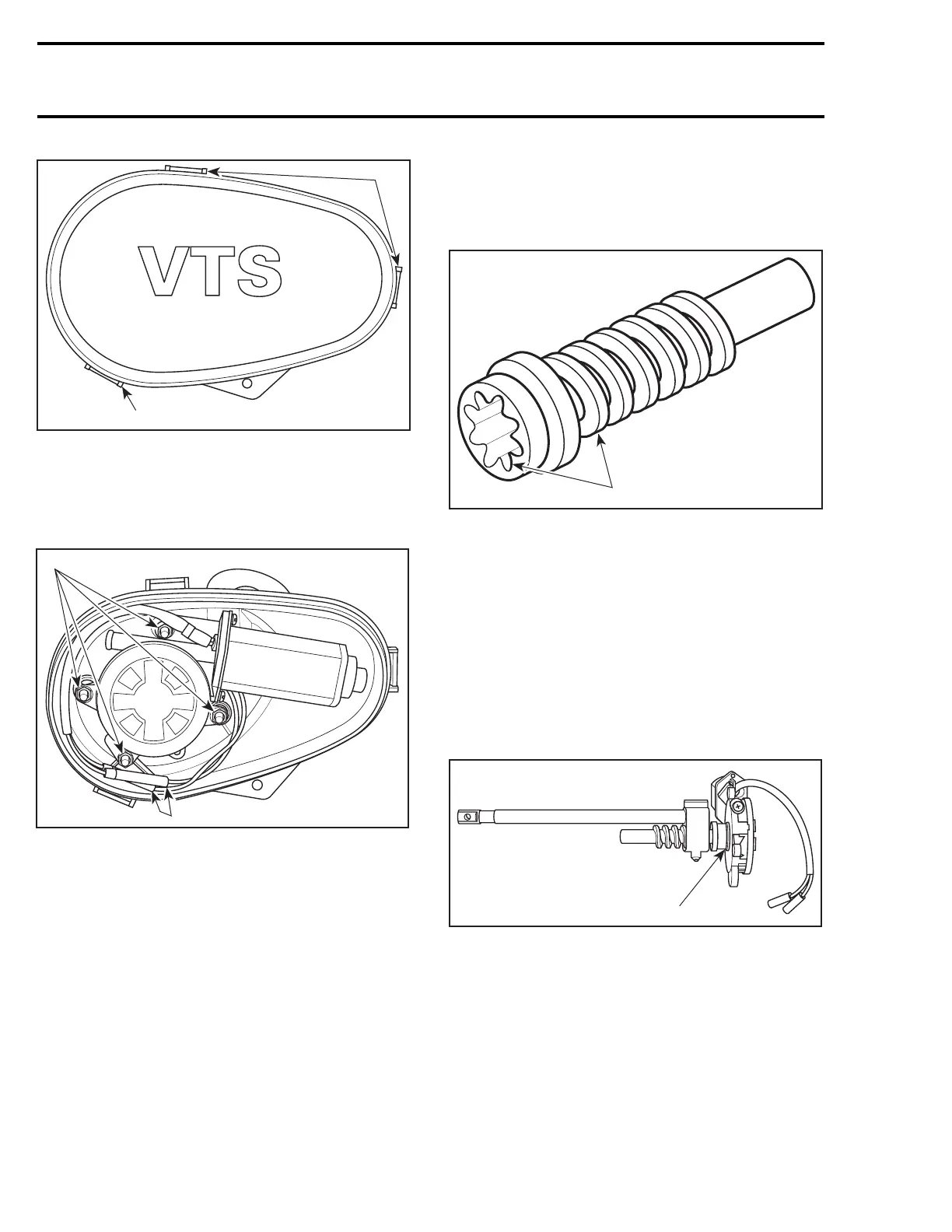

1. Press tabs to remove cover
Motor
Disconnect wires from motor no. 8.
Remove retaining nuts no. 11.
F01J1XA
1
2
1. Remove nuts
2. Disconnect wires
Pull on motor to remove it.
Worm and Sliding Shaft
Simply pull on worm no. 9 and sliding shaft no. 10
in order to remove them.
INSPECTION
Boot
Make sure boot no. 3 is in good condition. If it is
cracked or torn, replace boot.
Worm
Inspect threads and splines of worm no. 9 for
wear. If worm replacement is necessary, renew
also sliding shaft.
F01J25A
1
1. Inspect threads and splines
ASSEMBLY
Assembly is essentially the reverse of disassem-
bly procedures. However pay particular attention
to the following.
Motor, Worm and Sliding Shaft
Apply synthetic grease to worm.
Screw worm no. 9 to sliding shaft no. 10.
Mesh worm splines to gear of motor.
F01J2PA
1
1. Mesh worm spline to gear of motor
Install motor no. 8, worm and sliding shaft in VTS
housing.
682 smr2004-Complete Line Up
