Section 16 HULL/BODY
Subsection 01 (ADJUSTMENT AND REPAIR)
F08L1AA
A
1
XP DI MODELS
1. Lock pin. Torque to 4 N•m(35lbf•in)
A. 13.4 mm (17/32 in)

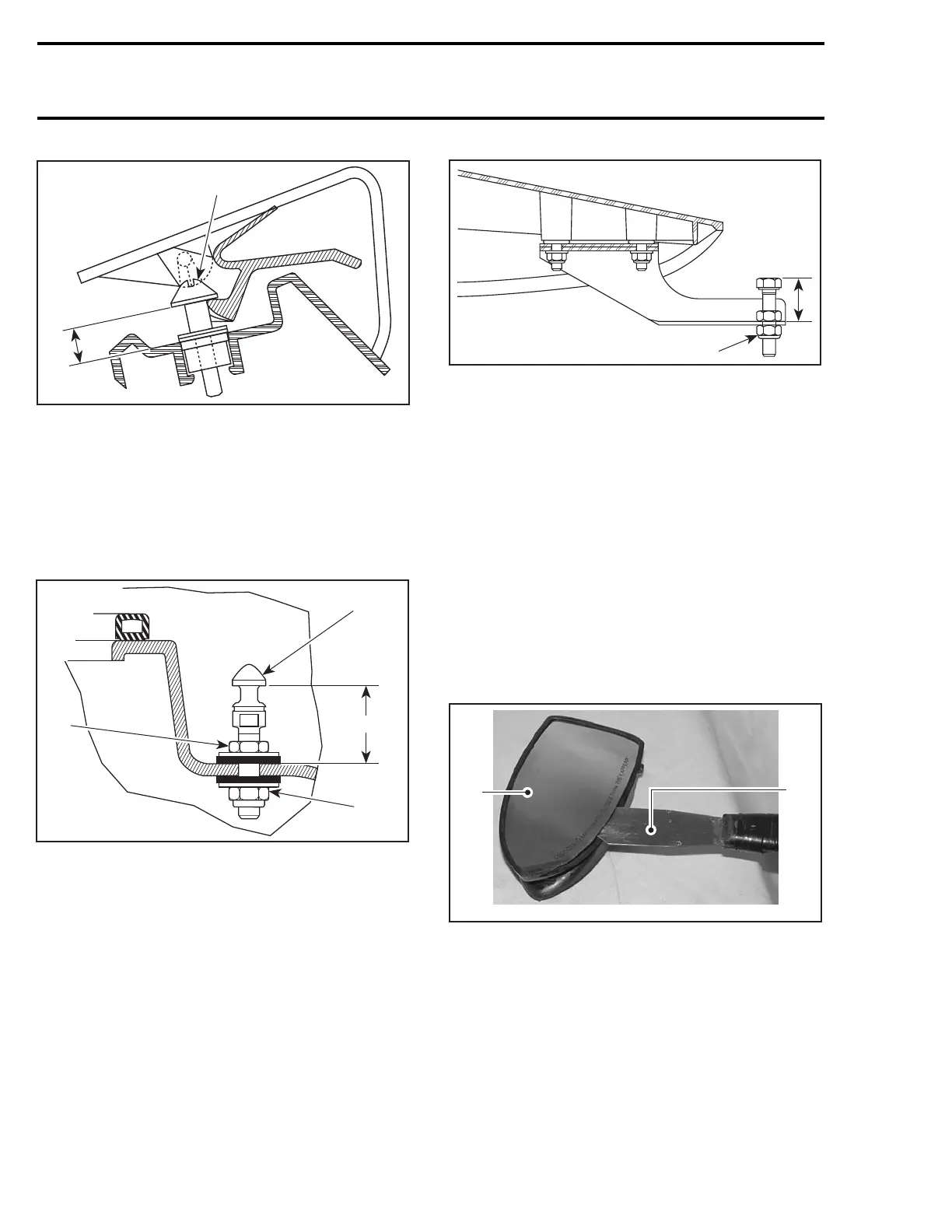

ACCESS PANEL ADJUSTMENT
XP DI Models
Adjust lock pin no. 3 of access panel as per follow-
ing specifications:
F08L1BA
1
2
3
A
1. Lock pin
2. Adjustment nut (Loctite 243)
3. Lock nut. Torque to 5 N•m(44lbf•
in)
A. 39 ± 1 mm (1-17/32 ± 3/64 in)
Adjust bolts no. 16 of access panel arms as per
following specifications:
F05L0VA
A
1
1. Lock nut. Torque to 22 N•m(16lbf•ft)
A. 20 ± 1 mm (25/32 ± 3/64 in)
MIRROR
GTI LE and GTI LE RFI
Place the mirror frame in hot water to “soften” the
material to allow mirror installation in its frame.
GTX 4-TEC Series and RXP 4-TEC Models
To remove mirror proceed as follows:
– Remove storage compartment inner shell from
storage cover as described earlier in this sec-
tion.
– Remove two hexagonal screws and flat wash-
ers.
– Remove defective mirror with a spatula.
1
F18L21A
2
1. Mirror
2. Spatula
– Place the mirror frame in hot water to “soft-
en” the material to allow mirror installation in
its frame.
– Reinstall storage compartment inner shell.
