Section 13 PROPULSION
Subsection 01 (JET PUMP)
F01J0VA
TYPICAL
F01J0WA
1
TYPICAL

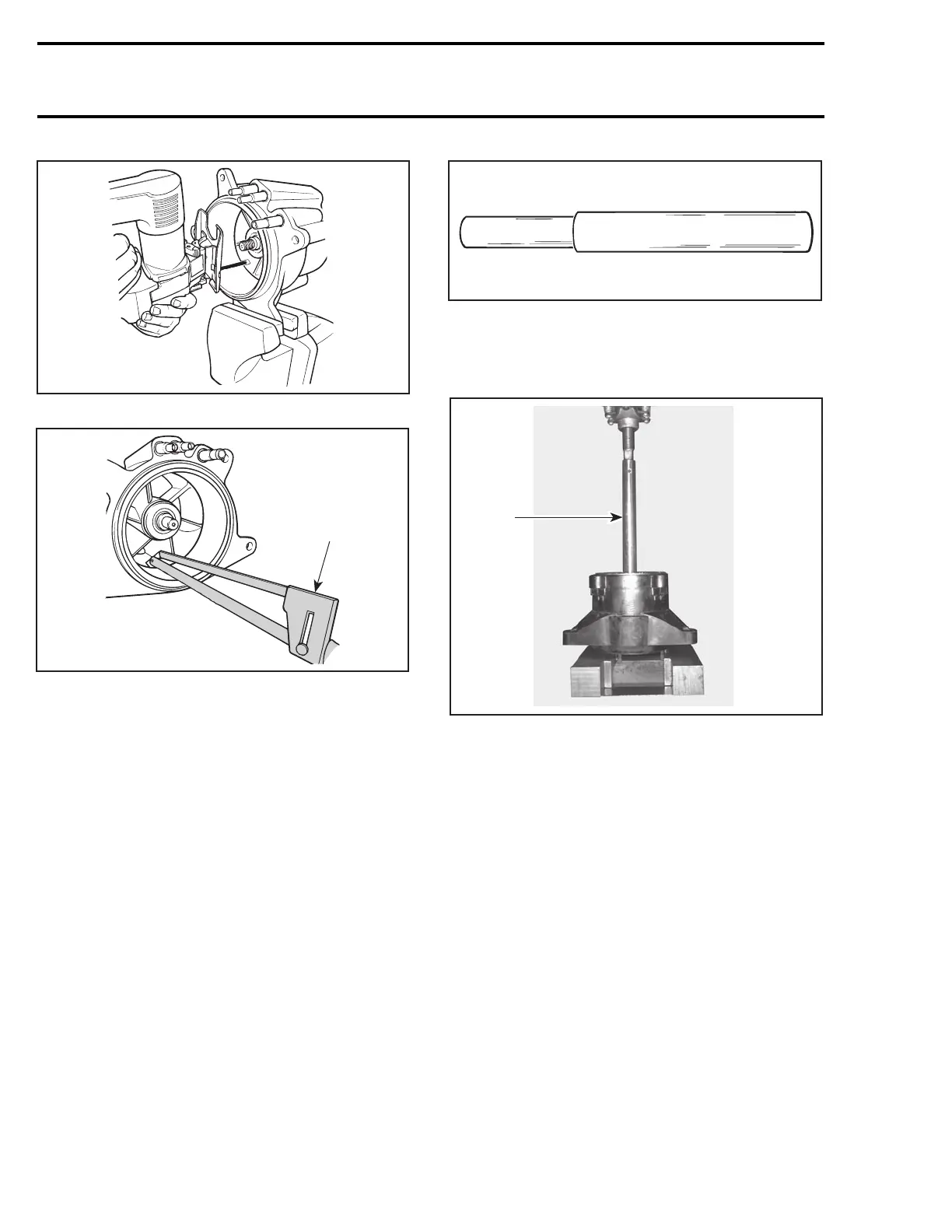

1. Snap-on HS3
After cutting ring, insert a screwdriver blade be-
tween jet pump housing and ring outside diame-
ter.
Push ring so that it can collapse internally.
Pull ring out.
Impeller Shaft
Remove shaft holder tool.
Remove impeller shaft no. 11 with thrust washer
and thrust bearing.
Seal and Needle Bearing
Remove seal no. 5 and bearings no. 6 and no. 8
at the same time using bearing/seal remover tool
(P/N 295 000 144).
F01J11A
Insert bearing remover then press tool using a ar-
bor press until seal and bearings are out. How-
ever, care should be taken not to damage bearing
journals.
F00J0MA
1
1. Bearing/seal remover tool
NOTE: It is always recommended to renew both
bearings, even if only one bearing needs to be
replaced.
CLEANING
Properly clean all threads.
Remove all O-rings and clean parts in a solvent.
Carefully check water passages and oil passages.
Blow low pressure compressed air through them
and make sure they are clear.
622 smr2004-Complete Line Up
