SeaDoo GTX 4-TEC Supercharged User Manual

Section 05 ENGINE (4-TEC)
Subsection 07 (CYLINDER HEAD AND VALVES)

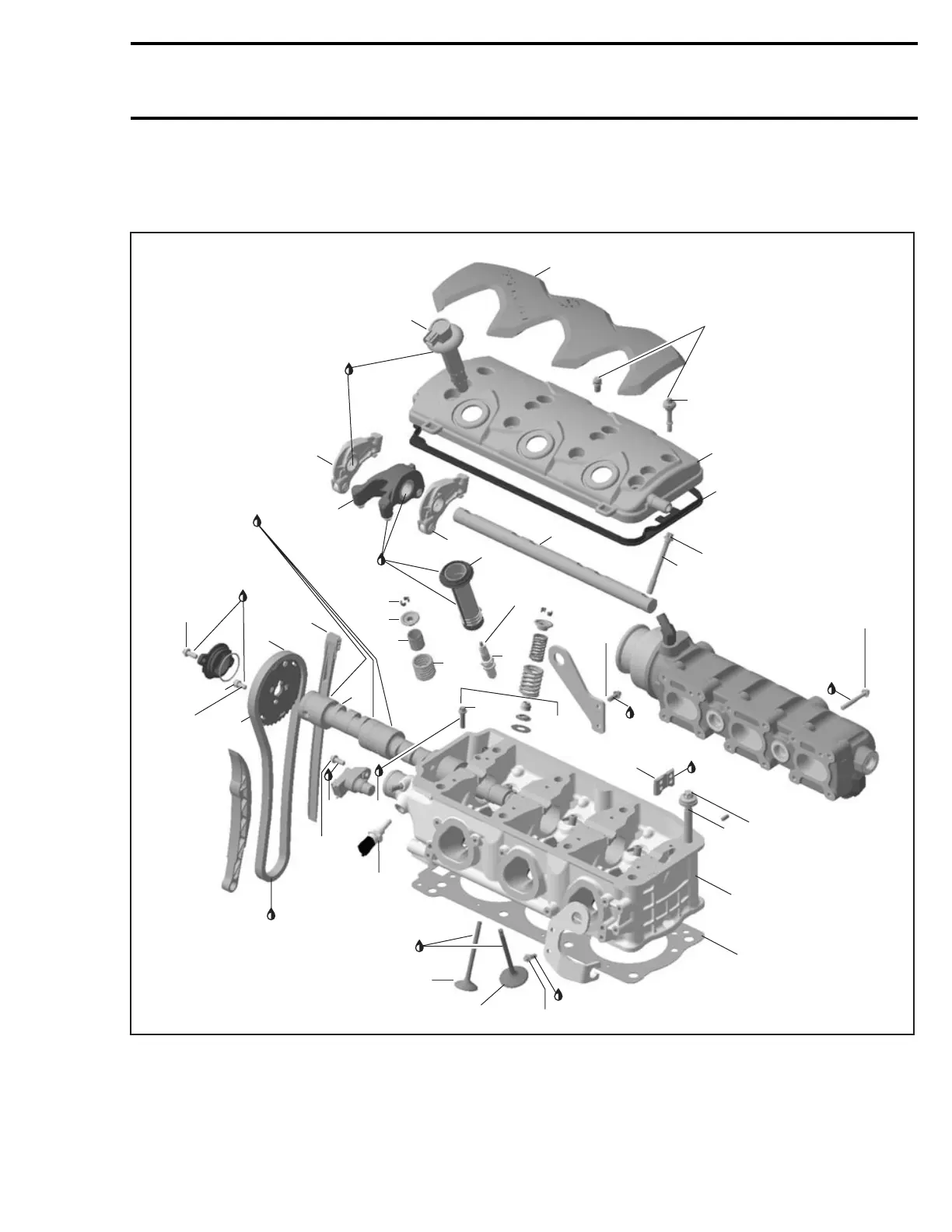

CYLINDER HEAD AND VALVES
NOTE: For cylinder head removal, it is not necessary to remove engine from vehicle.
Engine
oil
R1503motr245S
3
40 Nm (29.5 lbfft)
+ 120° + 90°
10 Nm
(89 lbfin)
Loctite
243
Engine oil
4
5
10
11
10
1
6
8
Loctite
243
10 Nm
(89 lbfin)
Engine
oil
17
18
19
Loctite 243
10 Nm (89 lbfin)
26
27
Engine oil
20
Loctite
243
10 Nm
(89 lbfin)
9
18 Nm
(159 lbfin)
24
23
16
2
10 Nm
(89 lbfin)
18 Nm
(159 lbfin)
6 Nm
(53 lbfin)
21
Engine oil
15
13
10 Nm
(89 lbfin)
6 Nm
(53 lbfin)
Grease Klueber
Isoflex Topas NB52
7
Loctite 243
14
12
25
22
20 Nm (14.5 lbfft) + 90°
smr2004-Complete Line Up 255
www.SeaDooManuals.net

SeaDoo GTX 4-TEC Supercharged Specifications

General

Seating Capacity	3
Model	GTX 4-TEC Supercharged
Displacement	1494 cc
Manufacturer	Sea-Doo
Category	Personal Watercraft
Fuel Type	Unleaded gasoline
