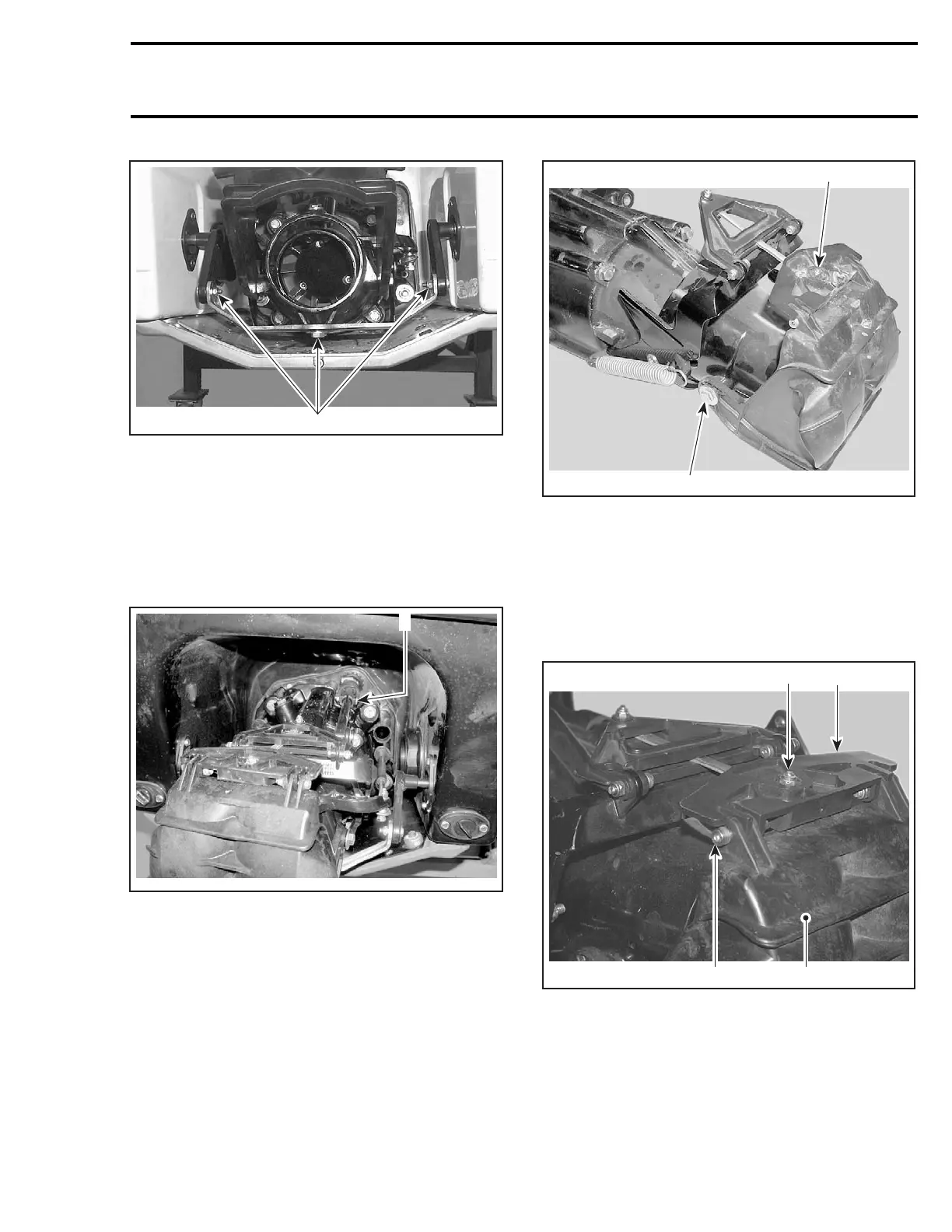

Section13PROPULSION
Subsection 01 (JET PUMP)
1
F18J0DB
TYPICAL
1. “U” lever screws
Disconnect steering and reverse cables.
Disconnect O.P.A.S. hose from top of pump (if ap-
plicable).
RXP Models
Disconnect VTS link rod.
F19J05A
1
1. Link rod
All Models
Remove pump retaining nuts/screws.
Pull out pump.
Reverse Gate
To remove reverse gate no. 31, put shift lever in
reverse position.
Unscrew pivot bolt no. 33.
F16J04A
2
1
1. Pivot bolt
2. Screw
Remove both reverse gate screws no. 32.
Pivot Support
Remove reverse gate.
Unscrew pivot support bolts no. 34.
1
F18J0JA
2
34
1. Pivot bolt
2. Pivot support
3. Reverse gate
4. Pivot support bolt
Withdraw pivot support.
smr2004-Complete Line Up 639
www.SeaDooManuals.net

SeaDoo GTX 4-TEC Supercharged Specifications

General

Seating Capacity	3
Model	GTX 4-TEC Supercharged
Displacement	1494 cc
Manufacturer	Sea-Doo
Category	Personal Watercraft
Fuel Type	Unleaded gasoline
