Section 13 PROPULSION
Subsection 01 (JET PUMP)
Connecting Rod
Remove:
– reverse gate
– pivot bolt no. 38.
Withdraw connecting rod.
Pivot Triangle
Remove:
– reverse gate
– connecting rod
– pivot triangle bolts no. 39.
Withdraw pivot triangle no. 37.
Pivot Arm
Position shift lever in forward.
Remove:
– reverse gate
– connecting rod
– spring no. 17
– reverse cable
– pivot arm bolts no. 17. Take note of bushing
size for reinstallation.
Withdraw pivot arm no. 25.

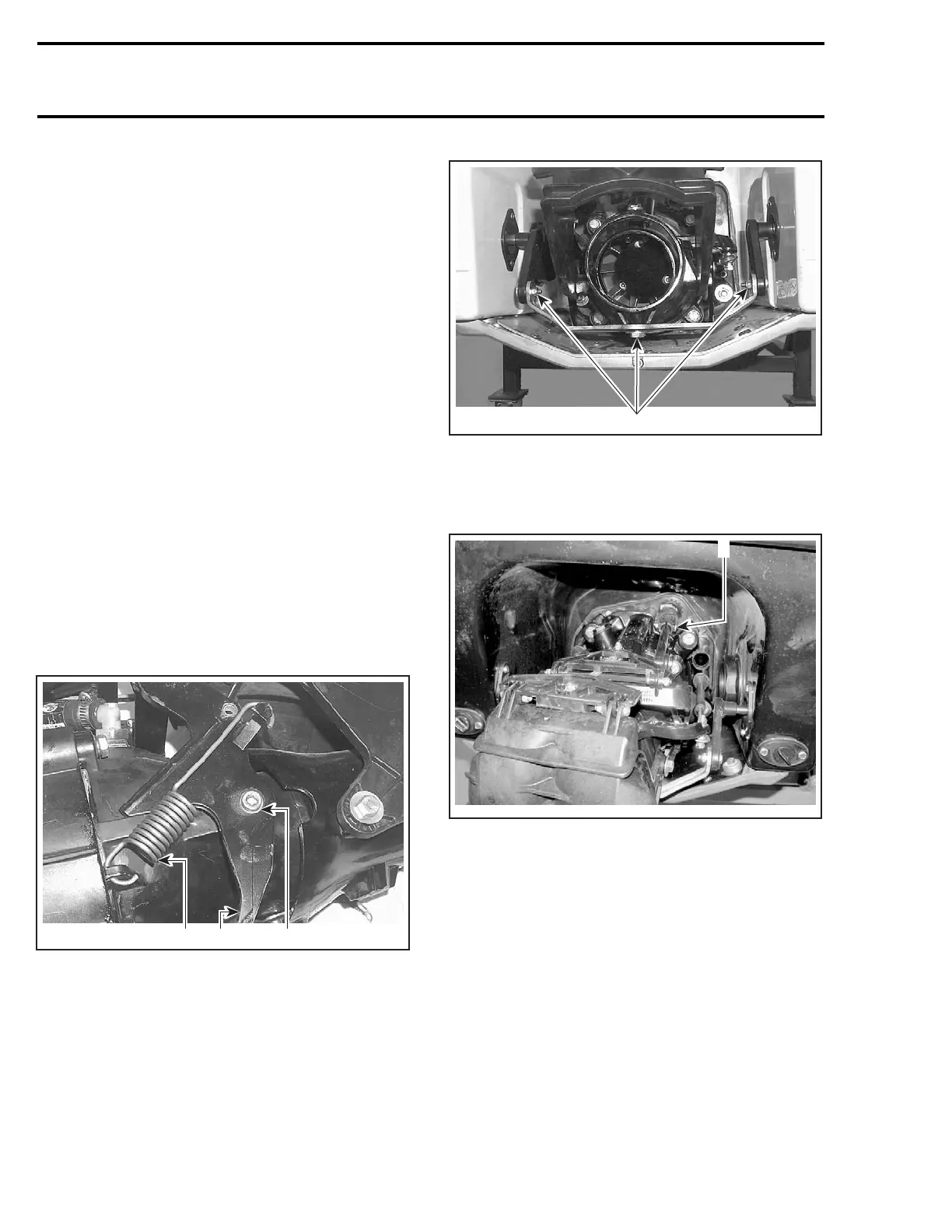

2
F18J1AA
31
1. Pivot bolts (each side)
2. Spring
3. Pivot arm
Nozzle
Remove reverse gate.
Disconnect steering cable from jet pump nozzle.
Remove O.P.A.S. “U” lever screws and pull out
lever.
1
F18J0DB
TYPICAL
1. “U” lever screws
RXP Models
Disconnect VTS link rod.
F19J05A
1
1. Link rod
Remove side screws no. 37 from nozzle.
Pull out nozzle and VTS ring.
Remove VTS ring.
Other Models
Remove 2 retaining screws no. 30, 2 sleeves
no. 28, 2 washers no. 29.
Remove nozzle.
Venturi
Remove:
– reverse gate
– nozzle
