SeaDoo GTX 4-TEC Supercharged User Manual

Section 05 ENGINE (4-TEC)
Subsection 06 (LUBRICATION SYSTEM)

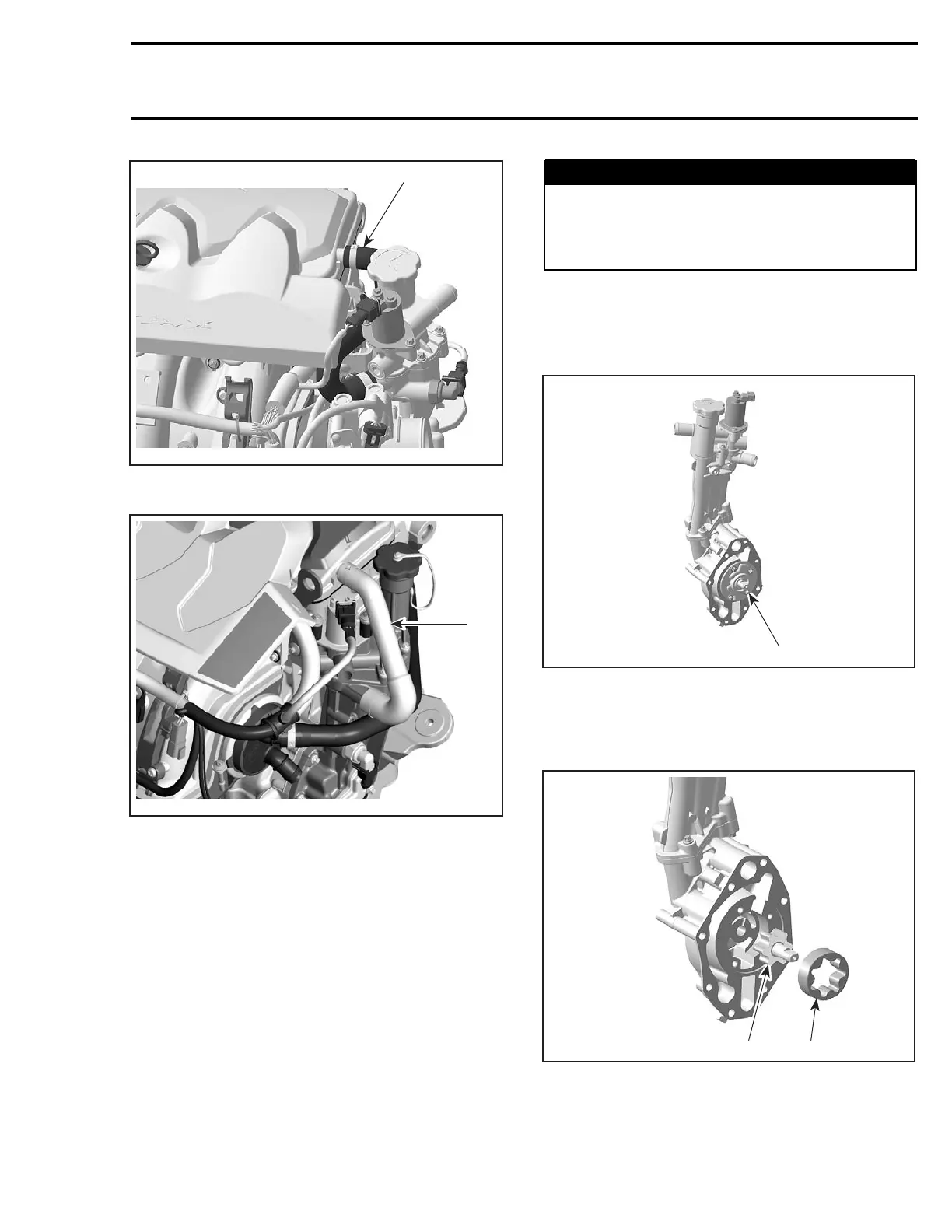

1
R1503motr133A
TYPICAL — GTX 4-TEC ENGINES
1. TOPS ventilation hose
R1503motr374A
1
RXP 4-TEC ENGINES
1. TOPS ventilation hose
– Disconnect wiring harness from OSPS no. 9
and TOPS valve no. 8.
– Detach air silencer from throttle body.
– Disconnect battery cables and vent tube then
remove battery. Refer to BATTERY in CHARG-
ING SYSTEM section for proper procedures.
– Remove retaining screws no. 42.
– Place rags under cover to prevent spillage. If
spillage occurs, clean immediately with the pul-
ley flange cleaner (P/N 413 711 809) to prevent
stains.

WARNING
Wear safety glasses and work in a well venti-
lated area when working with strong chem-
ical products. Also wear suitable non-ab-
sorbent gloves to protect your hands.
– Remove oil suction pump housing with oil sep-
arator.
– Remove oil pump screws no. 27 and cover
no. 28.
1
R1503motr135A
TYPICAL
1. Oil pump cover
– Remove oil pump shaft ass'y no. 29.
– Remove outer rotor no. 30.
1
R1503motr136A
2
TYPICAL
1. Oil pump shaft ass'y
2. Outer rotor
smr2004-Complete Line Up 249
www.SeaDooManuals.net

SeaDoo GTX 4-TEC Supercharged Specifications

General

Seating Capacity	3
Model	GTX 4-TEC Supercharged
Displacement	1494 cc
Manufacturer	Sea-Doo
Category	Personal Watercraft
Fuel Type	Unleaded gasoline
