Section 11 LUBRICATION SYSTEM (2-STROKE)
Subsection 02 (OIL INJECTION PUMP)
1
F07F0WB
2

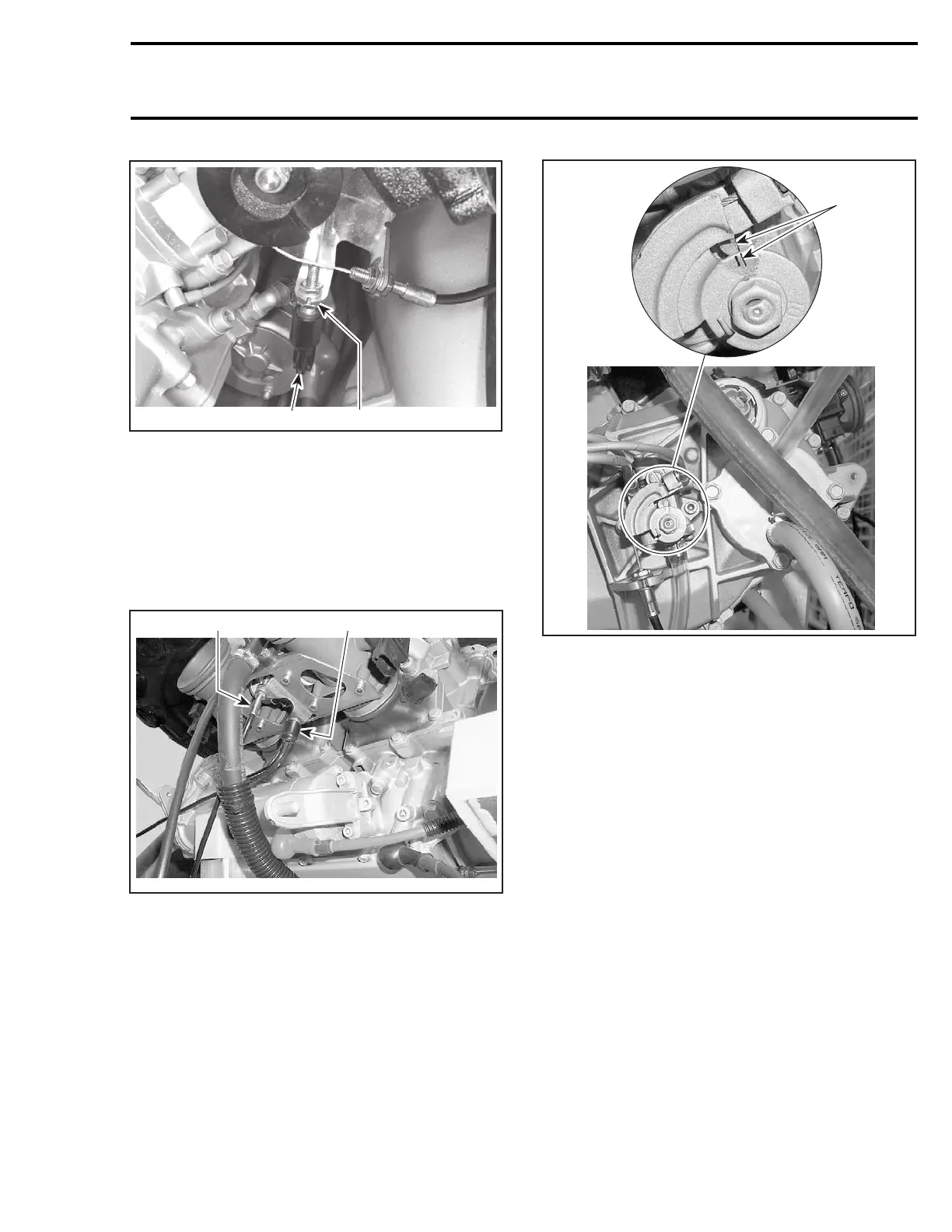

1. Oil pump cable
2. Adjustment nut
947 DI Engines
Loosen jam nut and turn cable adjustment nut to
obtain pump mark alignment. Refer to following
photos.
The adjustment is located under the throttle body
bracket.
1
F16F01A
2
1. Oil pump cable adjustment
2. Throttle cable
Adjust the cable to the rich position. Use the
longest mark.
F16G03B
1
1. Mark on pump must be facing longest mark on lever
All Engines
Start and bring engine to normal operating temper-
ature.
CAUTION: If watercraft is out of water, engine
must be cooled using the flush kit. If air bub-
bles are present in the oil injection system,
bleed system before operating engine.
Adjust idle speed to specification on 717 Engines.
Refer to CARBURETOR.
NOTE: On RFI and DI engines, there is no idle
speed adjustment to perform.
Stop engine.
Final Synchronization
Eliminate throttle cable free-play by depressing
throttle lever until a slight resistance is felt. In
this position, marks on pump body and lever must
align.
If necessary, turn cable adjustment nut to obtain
pump mark alignment. Refer to above illustra-
tions.
Tighten jam nut and recheck alignment marks.
smr2004-Complete Line Up 539
