| 4 - Instruction manual

▷ Screw the mounting frame to the ceiling using four suitable screws and anchors.

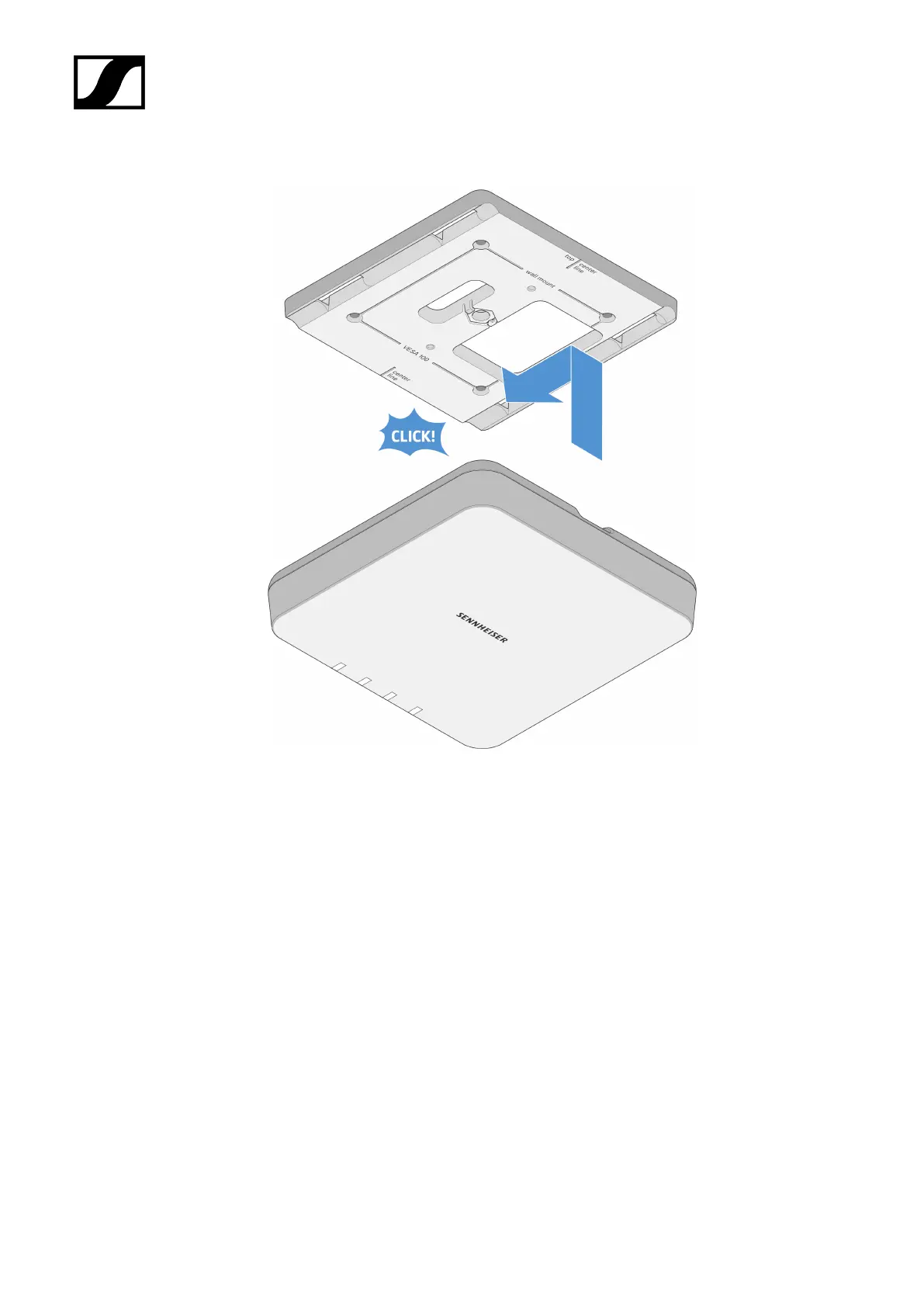

▷ Insert the receiver into the mounting frame as shown until you hear it click into place.

112
