| 4 - Instruction manual
To install the antenna splitter in a rack:
▷ Screw the front panel from the GA 4 mounting kit onto the antenna splitter’s mounting
angle using the two included recessed head screws as shown in the figure.
➥ Make sure to use the correct side (the one with the round holes) of the blanking
plate to secure it to the mounting angle.
▷ Insert the two small blanking plugs into the unused antenna holes.
▷ Screw the unit consisting of antenna splitter and mounting accessories into a 19"
rack.

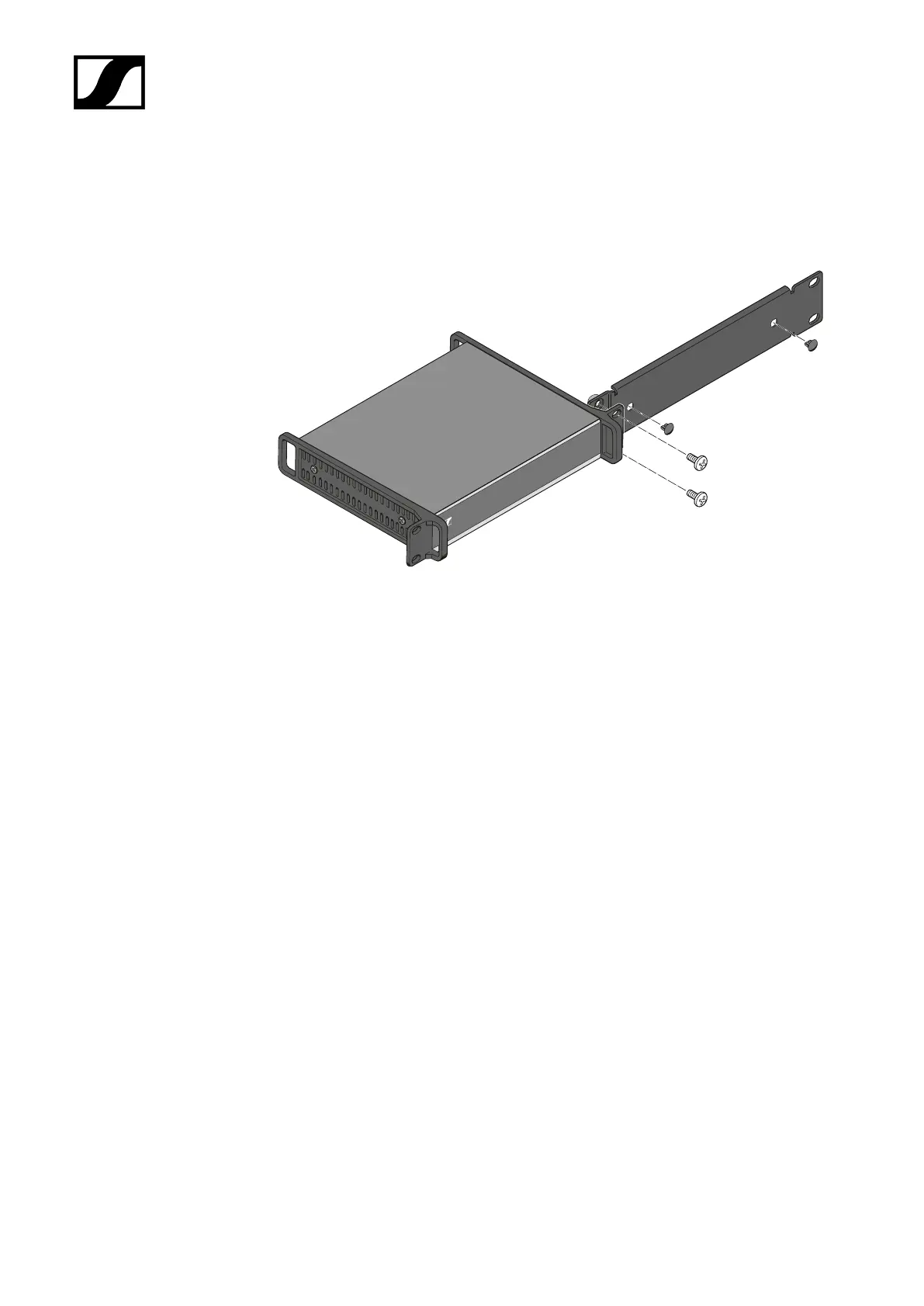

To fasten the mounting angles: (to install two antenna splitters side by side):
▷ Remove the two recessed head screws on both outer-facing sides of the antenna
splitters.
▷ Fasten the mounting angles to the outer-facing sides of the antenna splitters using
the previously removed recessed head screws.
257
