| 4 - Instruction manual
To mount the jointing plate:
▷ Place the two antenna splitters side by side on a flat surface with the undersides
facing upward.

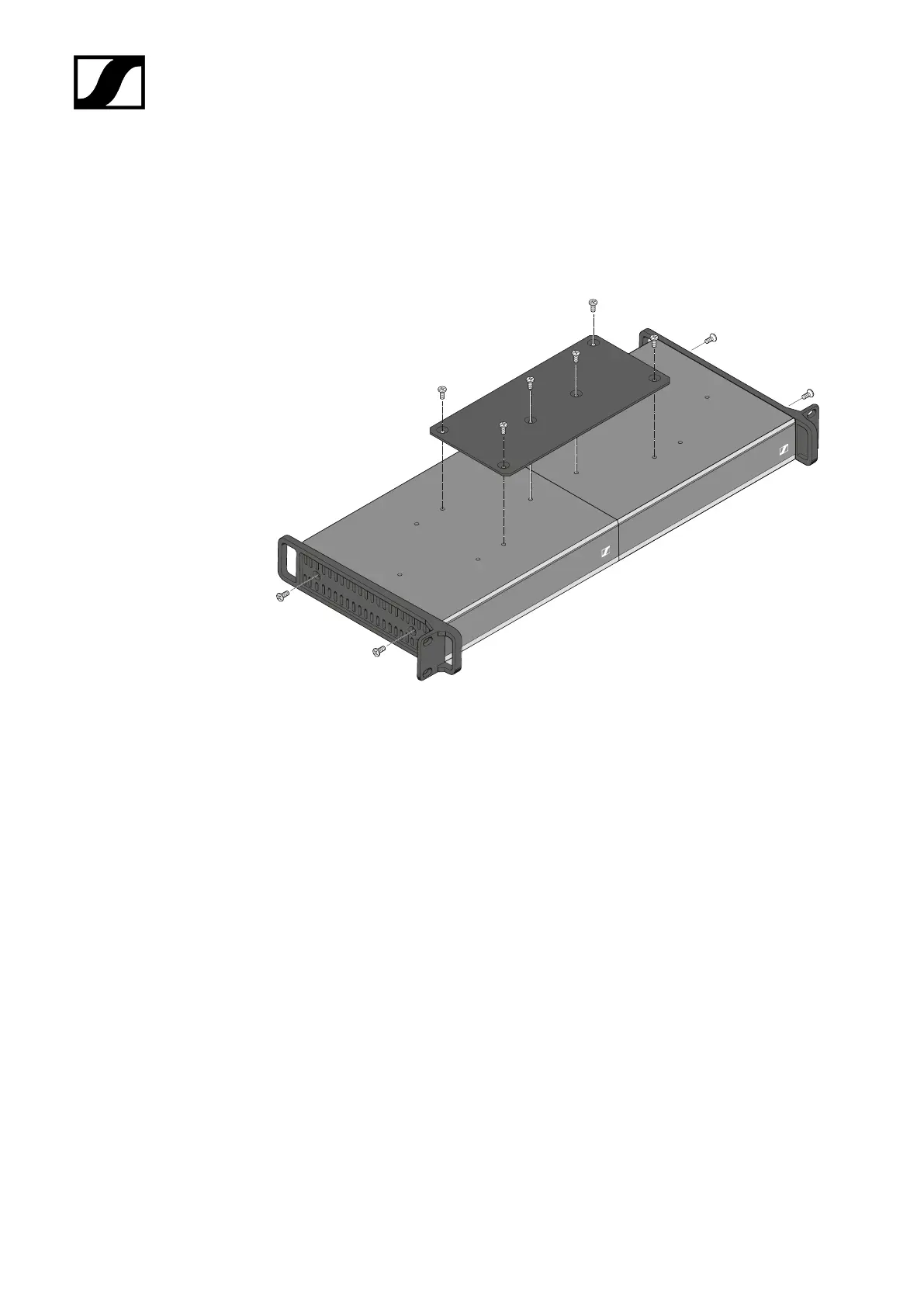

▷ Screw the two antenna splitters together using the jointing plate and the six recessed
head screws, as shown in the figure.
▷ Screw the unit consisting of the two antenna splitters into a 19" rack.
258
