| 3 - System planning
Combining up to 4 links using the AWM 2 and the SL PASC 4

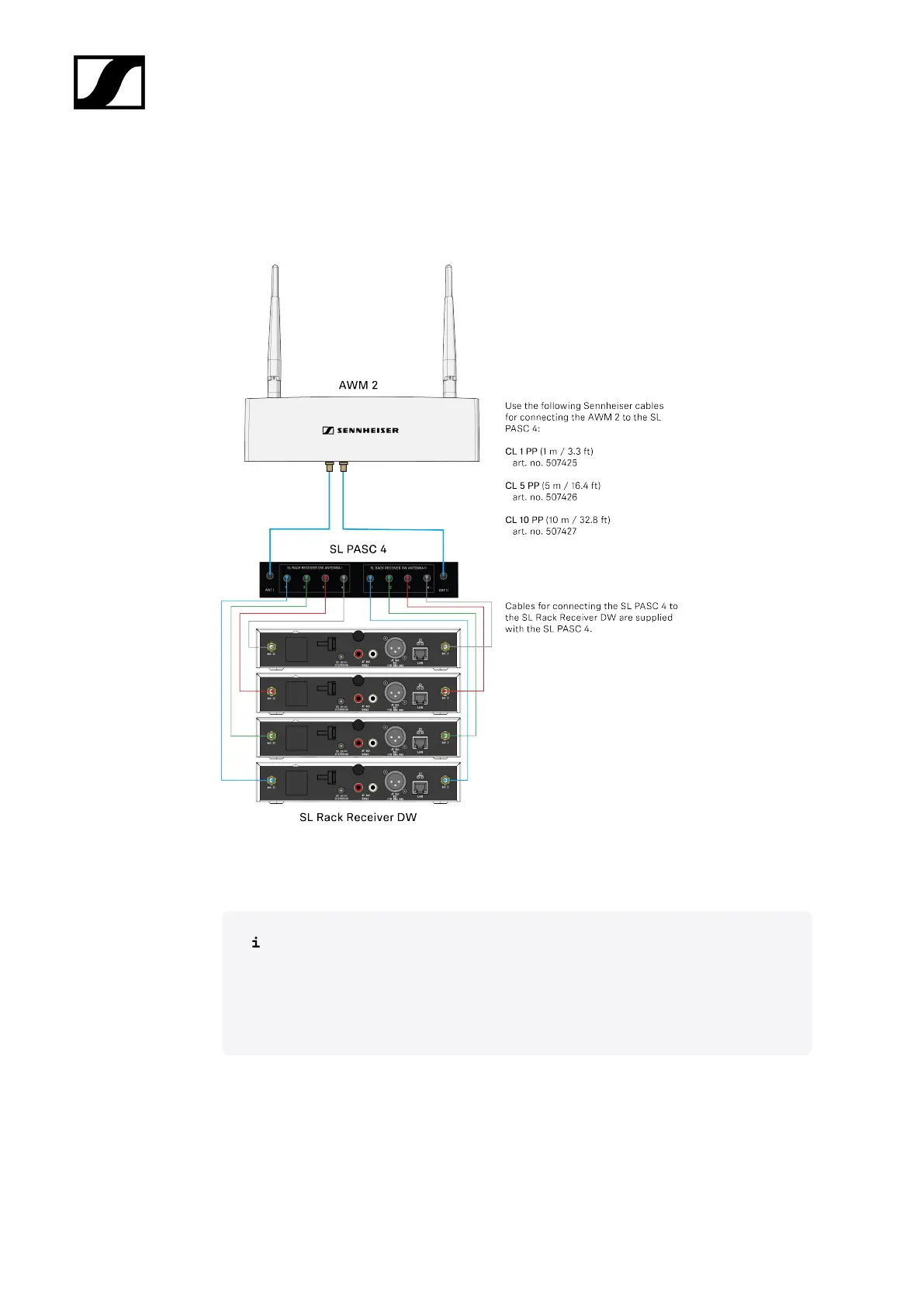

The following illustration shows an example of how to combine up to 4 links with one AWM 2
antenna wall mount. This reduces the number of antenna cables required from 8 to 2.
• Please observe the information below on the length of the extension cables (Signal
loss due to extension cables and antenna splitters).
Always combine all antenna sockets ANT I of all receivers and all antenna sockets
ANT II of all receivers respectively to one of the two antennas of the AWM 2. If
you are using only 3 of the 4 connections on the antenna splitter, you should close
the unused connection with a terminating resistor (50 Ω) to minimize interfering
signals and maximize transmission power.
54
