| 3 - System planning
Combining up to 8 links using the AWM 4 and two SL PASC 4 units

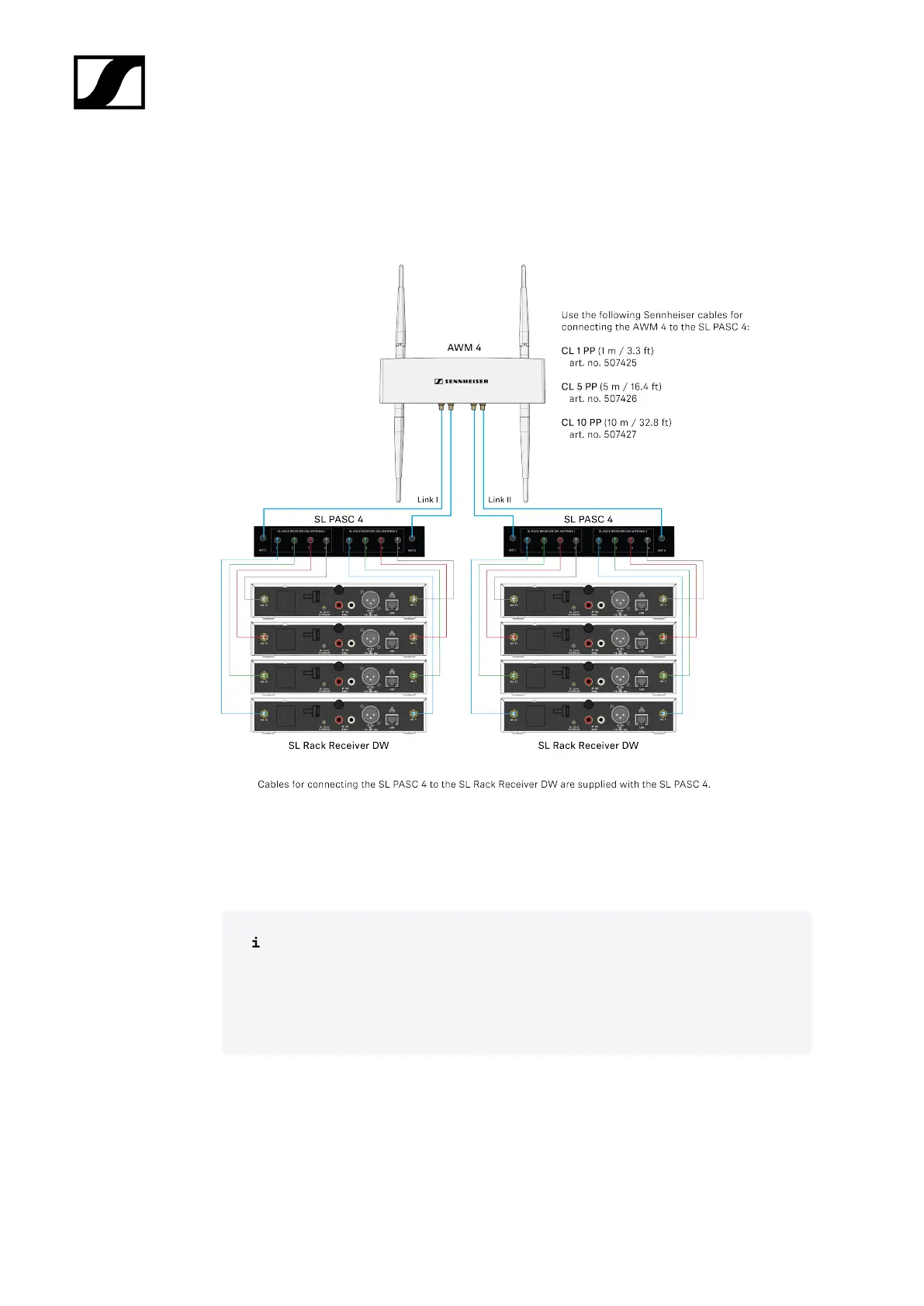

The following illustration shows an example of how to combine up to 8 links with one AWM 4
antenna wall mount. This reduces the number of antenna cables required from 16 to 4.
• Please observe the information below on the length of the extension cables (Signal
loss due to extension cables and antenna splitters).
Always combine all antenna sockets ANT I of up to four receivers and all antenna
sockets ANT II of up to four receivers respectively to the two sockets of one
link of the AWM 4. If you are not using all connections on the antenna splitter,
you should close the unused connections with a terminating resistor (50 Ω) to
minimize interfering signals and maximize transmission power.
Signal loss due to extension cables and antenna splitters
In this scenario, the use of extension cables and antenna splitters with a remotely mounted
antenna may result in loss of transmission power, depending on the cable length.
55
