Attaching the mounting angles
The mounting angles are designed to help protect the operating elements from
damage or deformation, e.g. if the receiver is dropped. We therefore recommend
always attaching the mounting angles, even if you do not want to mount the
receiver into a rack.

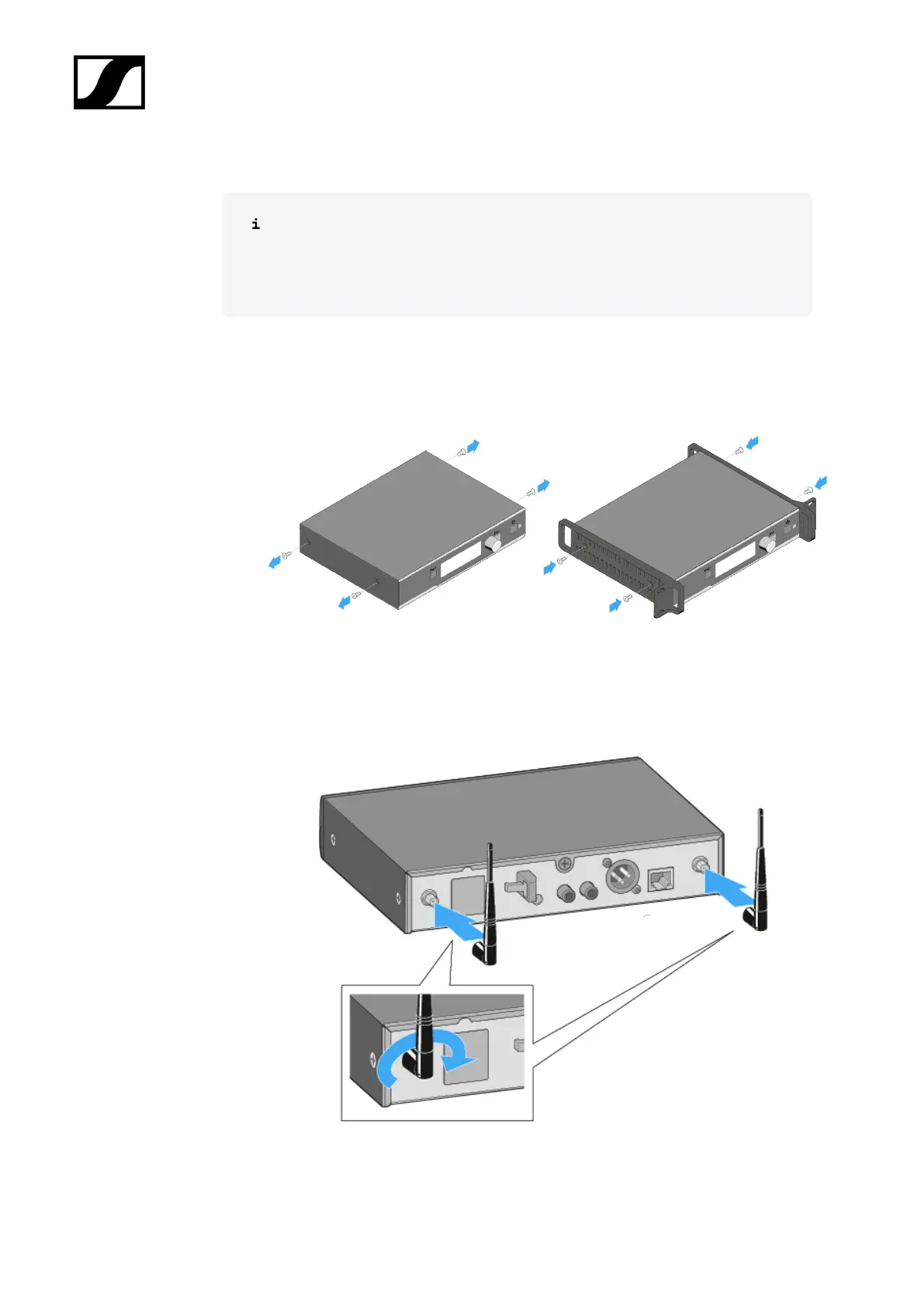

▷ Unscrew and remove the two recessed head screws on each side of the receiver.
▷ Secure the mounting angles to the sides of the receiver using the previously removed
recessed head screws.
➥ Make sure that the angled ends of the mounting angles point forward.
Connecting the rod antenna to the receiver
▷ Screw the two rod antennas into the receiver’s two antenna sockets ANT I and ANT II,
as shown.
▷ Align the rod antenna vertically.
