| 4 - Instruction manual
Installing the receiver in a rack

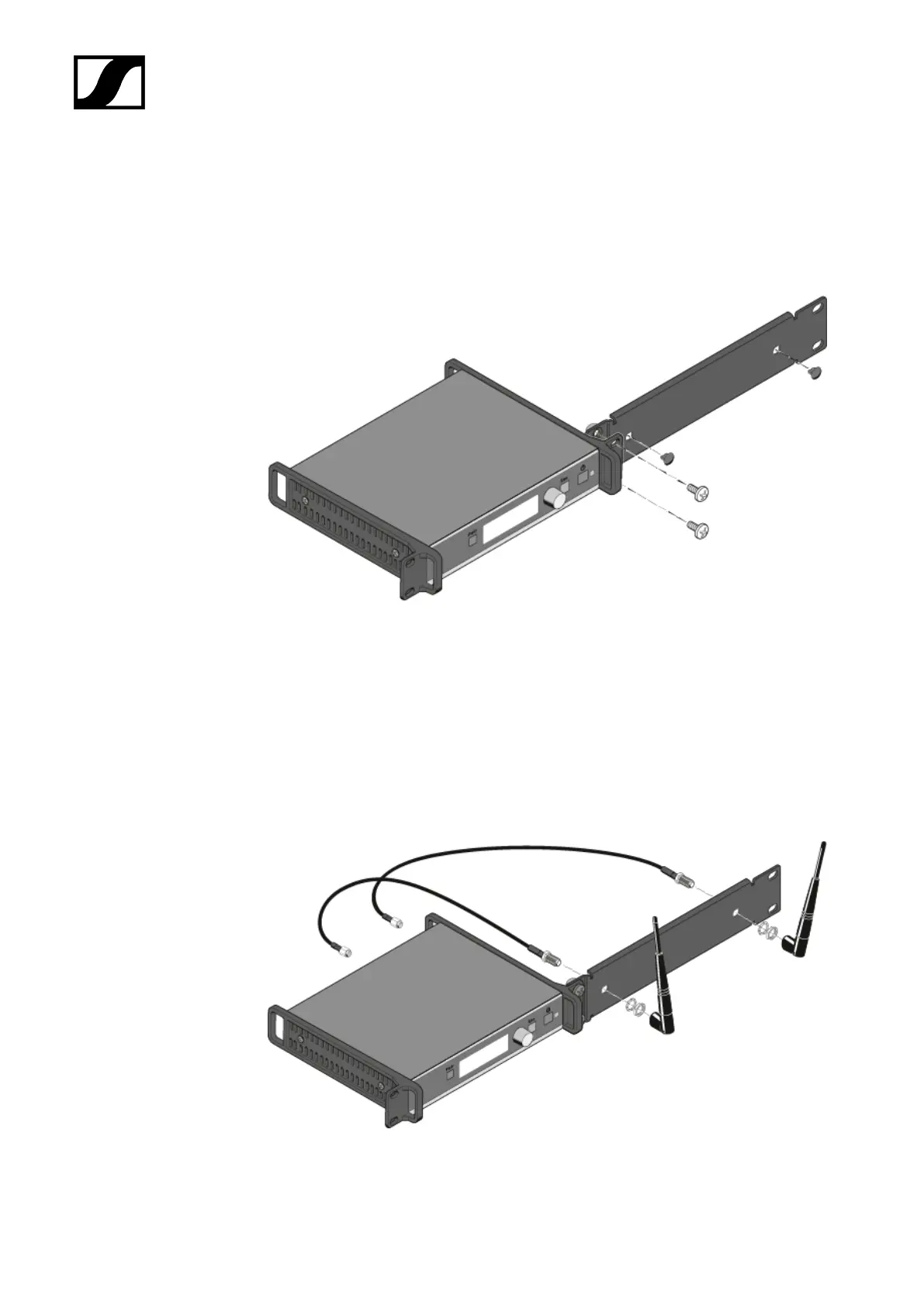

▷ Use the two supplied recessed head screws to secure the blanking plate from the GA
4 mounting kit to the mounting angle of the receiver as shown.
➥ Make sure to use the correct side (the one with the round holes) of the blanking
plate to secure it to the mounting angle.
▷ Only insert the two small covering caps into the antenna holes if you do not wish to
install the rod antenna at the front of the rack.
▷ Slide the receiver with the attached mounting accessories into a 19" rack.
Mounting the rod antenna to the front of the rack
▷ Connect the included antenna cables to the antenna sockets at the rear of the
receiver.
▷ Pass the other ends of the antenna cables through the antenna holes in the blanking
plate and screw them to the rod antenna as shown.
