Mounting the jointing plate and fastening the mounting angles (to install two receivers
side by side)
▷ Unscrew and remove the two recessed head screws on the outward-facing sides of
the receiver.
▷ Secure the mounting angles to the outward-facing sides of the receiver using the
previously removed recessed head screws.
▷ Place the two receivers side by side upside-down onto a flat surface.

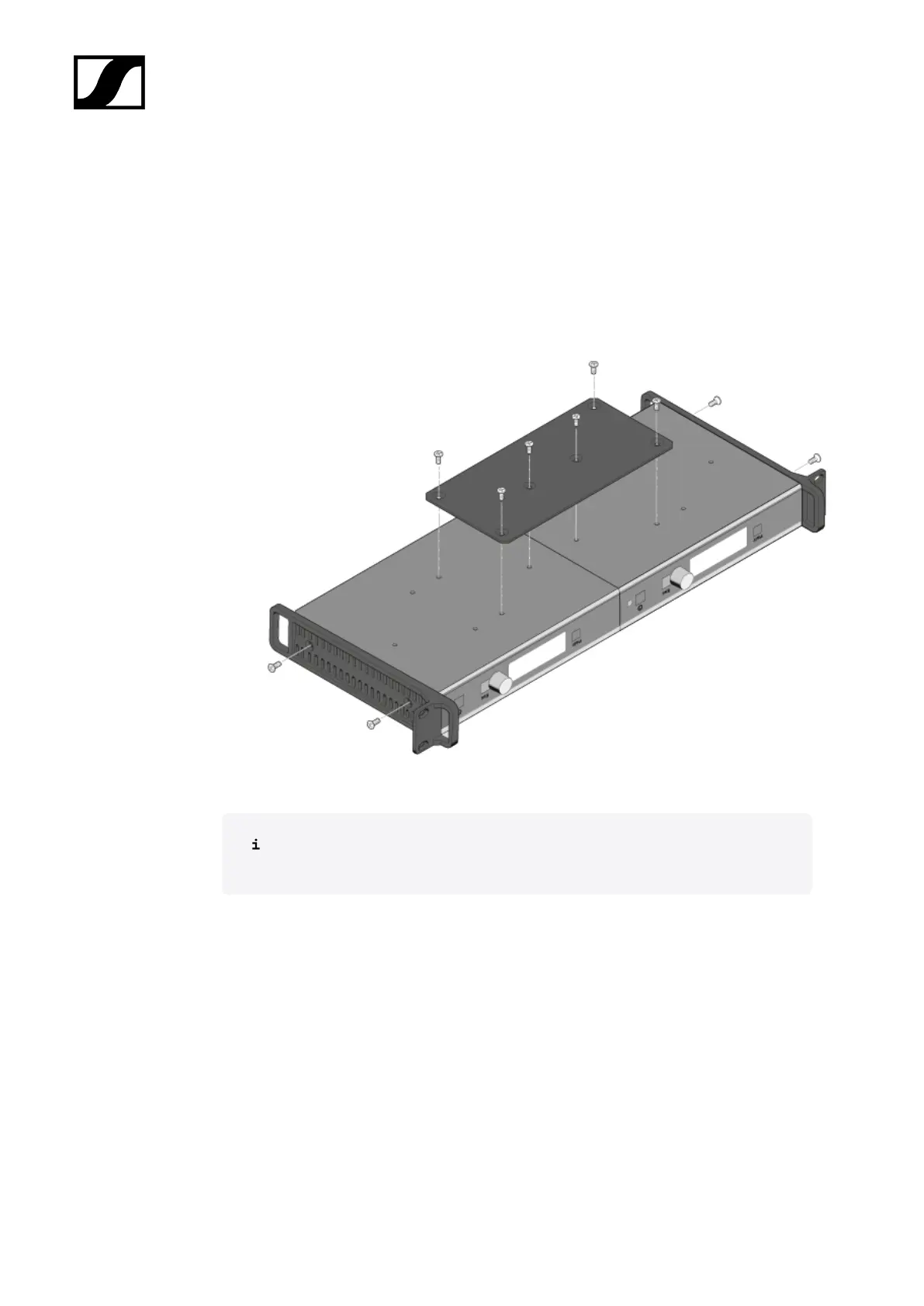

▷ Secure the jointing plate to the receiver using the six recessed head screws as shown.
Connecting the AWM 2 / AWM 4 remote antenna to the receiver
Instead of the supplied rod antenna, you can also connect a remote antenna to
the receiver. For more information, see AWM 2 / AWM 4 remote antennas.
▷ Pay attention to the notes about antenna installation under Recommendations on
antenna mounting.
