| 4 - Instruction manual
9 Expected remaining battery life of the received transmitter
• Displays the remaining battery life of the received transmitter in hours
(only when the original Sennheiser BA 10, BA 30 and BA 40 accupacks
are used).
• The remaining battery life is not displayed when batteries or
rechargeable AA size batteries are used.
10 7-step display of the accupack or battery capacity
• Graphically displays the current charge status of the accupack or the
batteries.

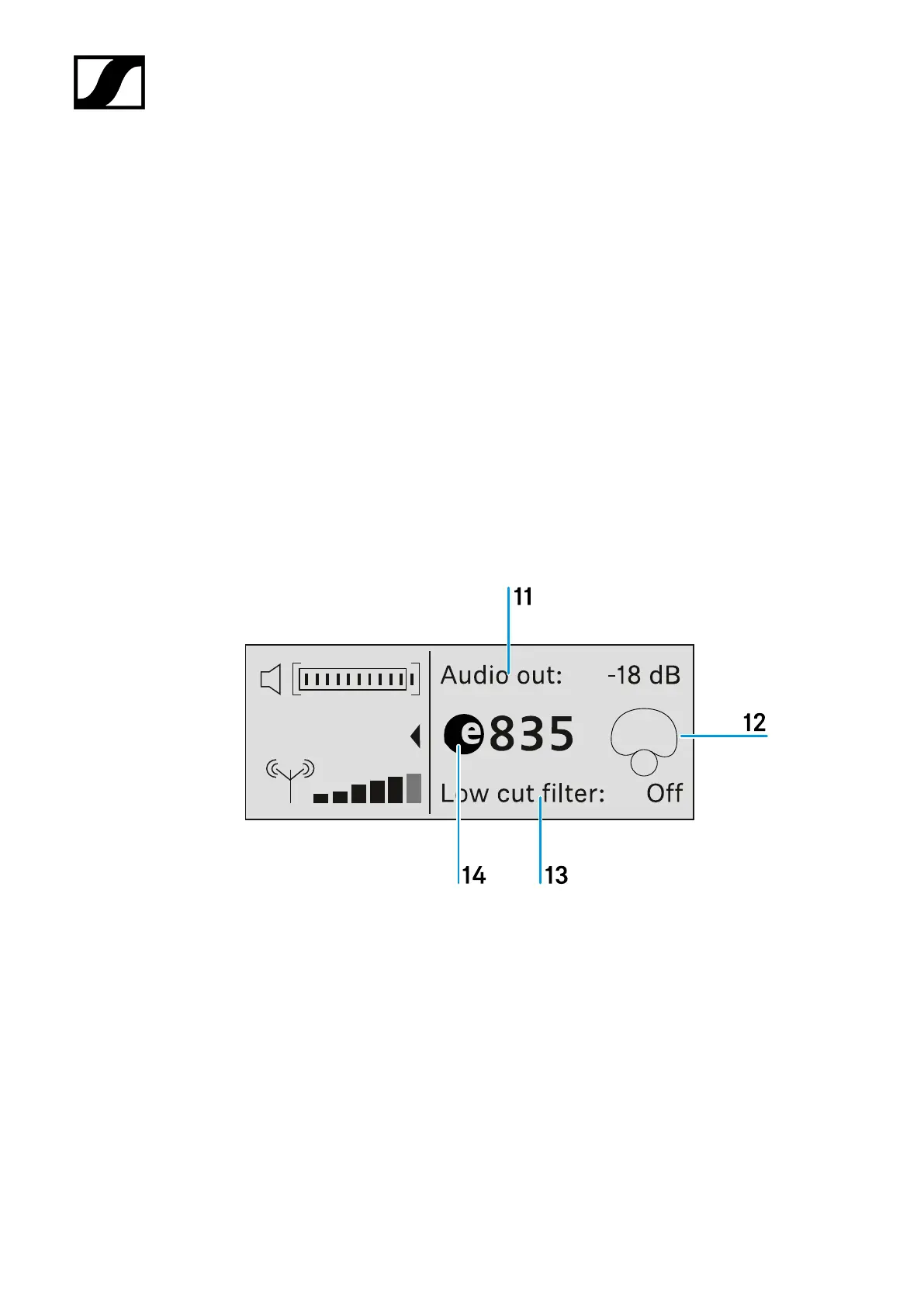

Secondary Home Screen
When you turn the jog dial to the left from the home screen, the secondary home screen
appears.
11 Audio output level of the receiver
12 Pick-up pattern of the microphone used
13 Status of the low-cut filter (ON/OFF)
14 Product name of the microphone capsule used
93
