Nameplates
Unit Structure
4.2 Nameplates
MOVIDRIVE
®
MDX61B with installed DCS..B option is supplied with two nameplates.

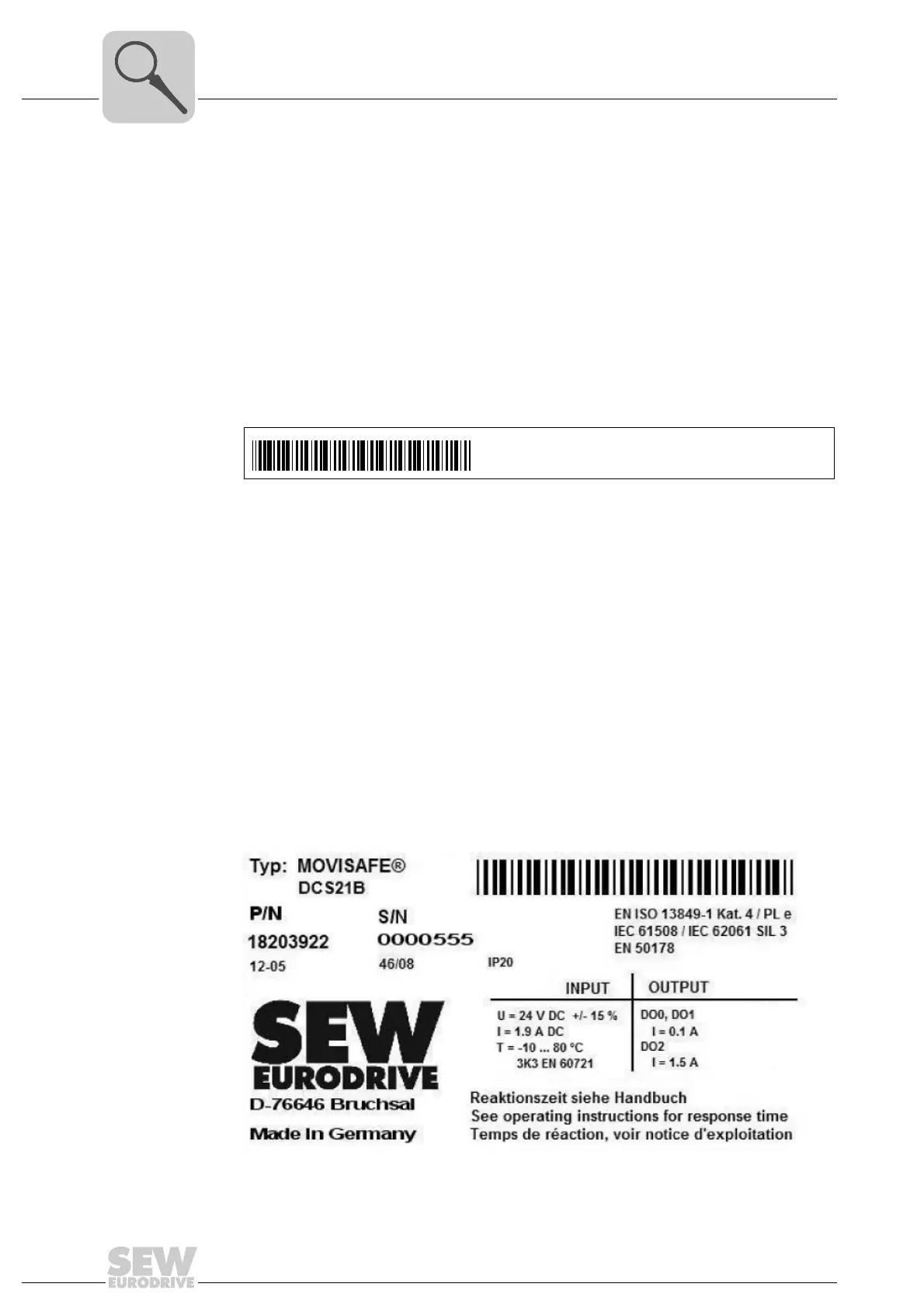

4.2.1 1st nameplate: DCS..B
• The first nameplate (see following figure) is attached to the contact spring strip of the
DCS..B option. It contains the following data:
– Part number (P/N)
– Serial number (S/N)
– Production date (here: 46/08)
– Version (here: 12-05)
4.2.2 2nd nameplate: MOVIDRIVE
®
B
• The second nameplate (see following figure) is attached to MOVIDRIVE
®
MDX61B.
It contains the following information:
– Type designation
– Part number (P/N), serial number (S/N)
– Input data, output data
– Degree of protection (here: IP20)
– Production date (here: 46/08)
– Version (here: 12-05)
– Permitted standards
– Reference to the response times in the manual
9007201225846795
18209580 0000462
P/N: S/N:
12-05
46/08
1971108875
