Connecting binary inputs DI1 to DI8
Installation
5.8.4 Dual-channel sensor, not monitored
Using dual-channel homogeneous sensors without pulsing can lead to problems. Short
circuits cannot be detected in the supply line of the dual-channel sensor, e.g. in the
cable. Safe operation can only be achieved by routing the cables separately and making
sure the terminals cannot short circuit.

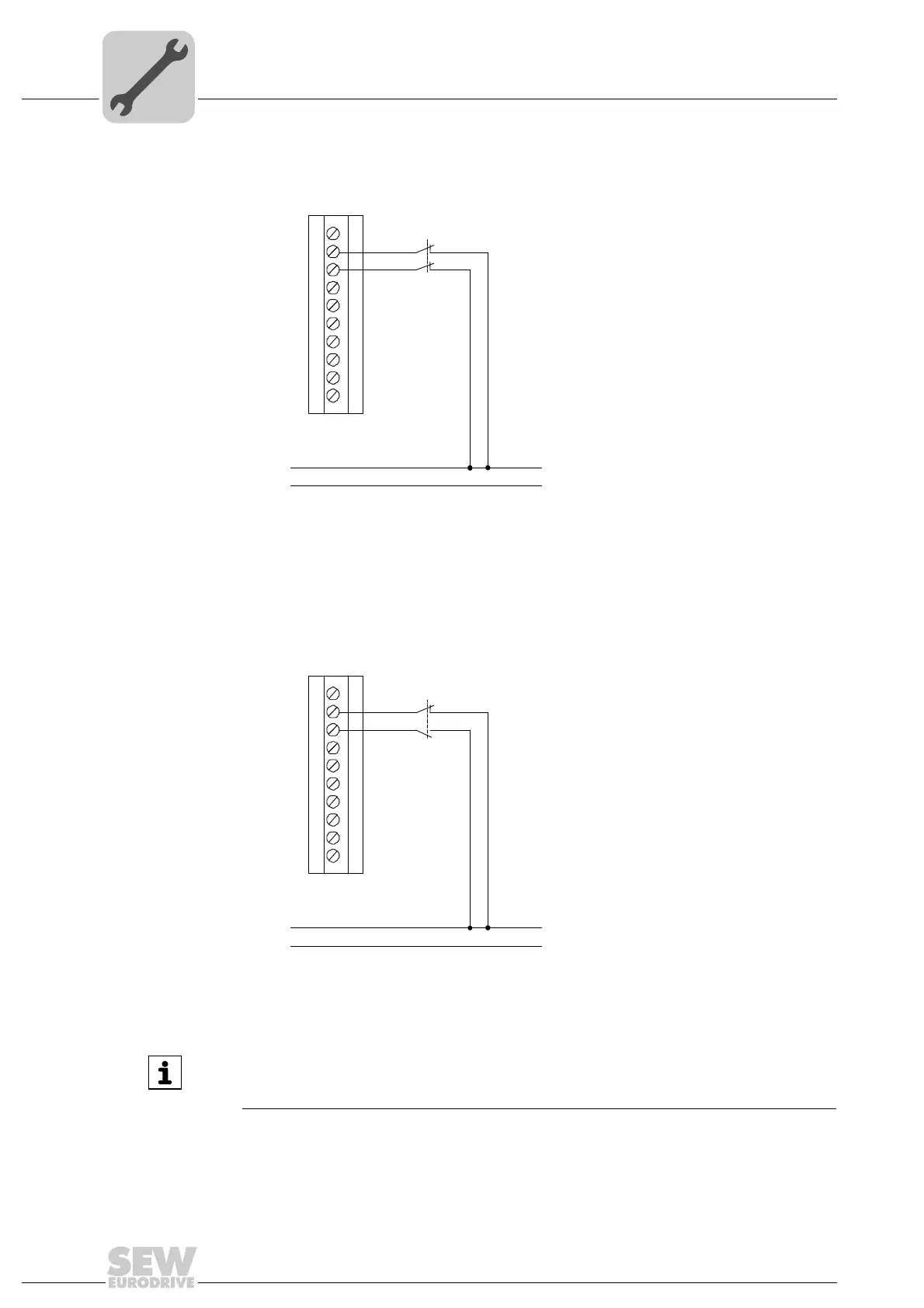

The DCS..B option can operate safely with dual-channel diversified sensors without
pulsing.
1971595787
1972457611
P1
P2
DI1
DI2
DI3
DI4
DI5
DI6
DI7
DI8
DC 24 V
X81
DC 0 V
1
6
2
3
4
5
7
8
9
10
P1
P2
DI1
DI2
DI3
DI4
DI5
DI6
DI7
DI8
DC 24 V
X81
DC 0 V
1
6
2
3
4
5
7
8
9
10
INFORMATION
A category 3 structure according to EN ISO 13849-1 can be achieved with both
circuits.
