Manual – MOVIDRIVE® MDX61B Safety Module MOVISAFE® DCS..B Option
5
Measures for electromagnetic compatibility (EMC)
Installation
5.6.1 Equipotential bonding

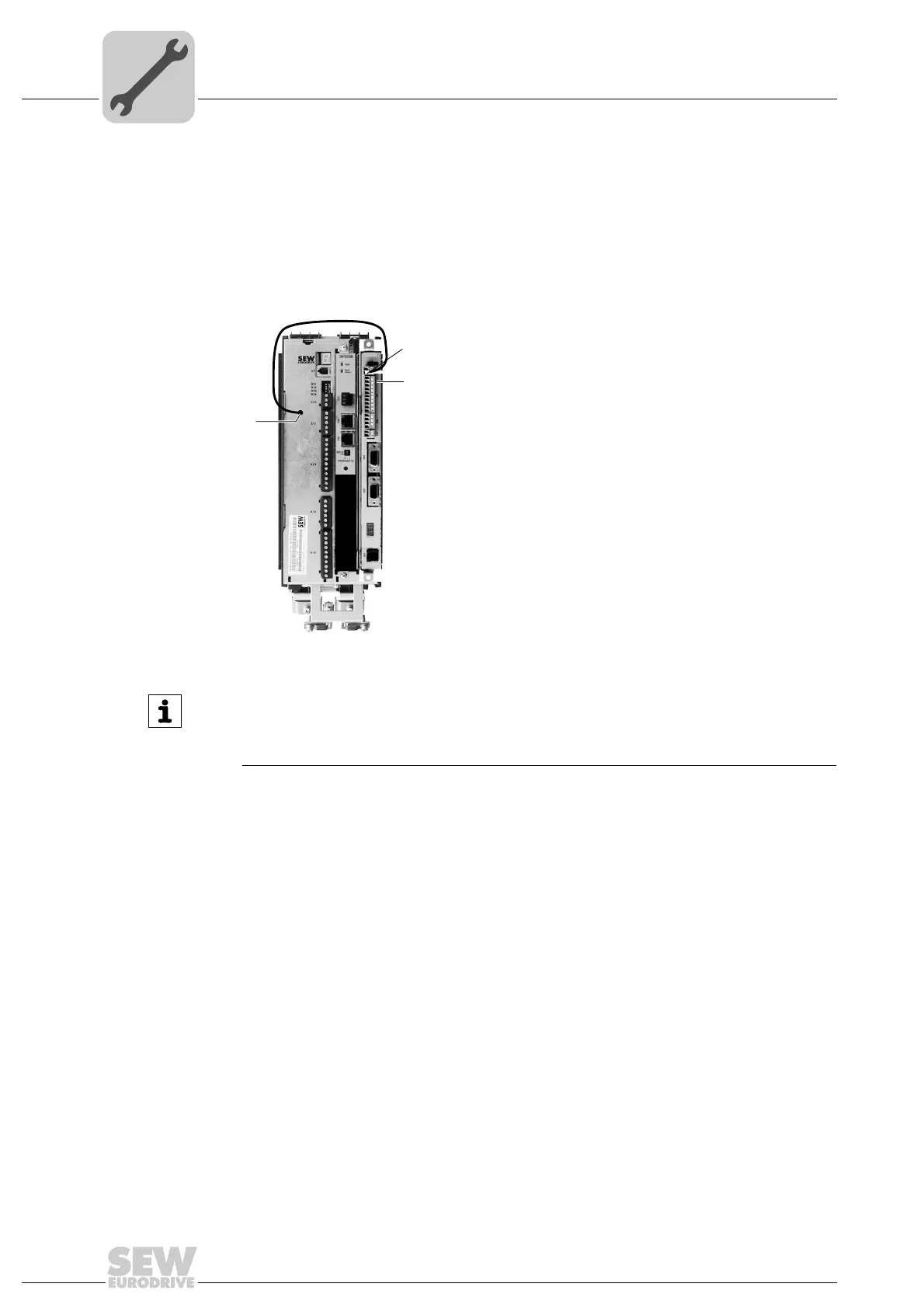

For equipotential bonding, the DCS..B option must be connected as follows after it has
been installed in MOVIDRIVE
®
B. Connect the tapped hole [1] with X80:2 of the DCS..B
option. For the tapped hole [1], use a grounding screw with tooth lock washer (included
in the scope of delivery) M4 x 8 or M4 x 10 (tightening torque: 1.4 - 1.6 Nm).
9007201226141323
X86
MOVIDRIVE
®
MDX61B
BG1 - 7
DCS21B/31B
DCS21B
X80 : 2
[1]
INFORMATION
Proper operation cannot be guaranteed when the DCS..B option is installed in a
MOVIDRIVE
®
B without tapped hole. SEW-EURODRIVE recommends to replace a
MOVIDRIVE
®
B without tapped hole with a MOVIDRIVE
®
B with tapped hole.
