Unit structure of DCS21B
Unit Structure
4.3 Unit structure of DCS21B
INFORMATION
If the DCS..B option is delivered separately, you must attach the supplied nameplate
onto the outside of MOVIDRIVE
®
MDX61B.
1971124363

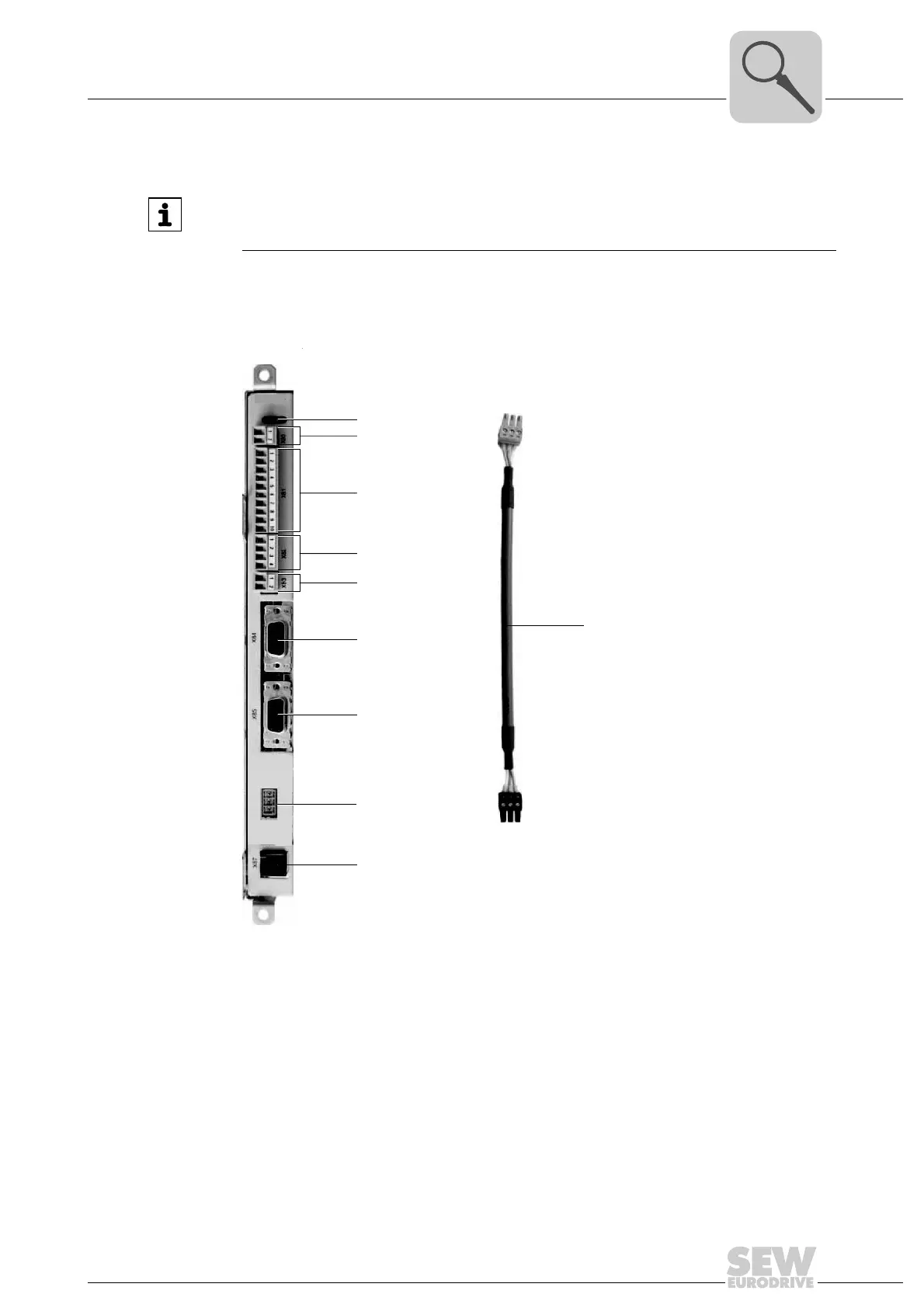

[1] Status LEDs
[2] X80: Terminal for DC 24 V voltage supply
[3] X81: Terminal for binary inputs DI1 - DI8 and pulse signals P1, P2
[4] X82: Terminal for binary outputs DO0 / DO1
[5] X83: Terminal for binary output DO2
[6] X84: Socket for TTL incremental, SIN/COS or SSI absolute encoder
[7] X85: Socket for TTL incremental, SIN/COS or SSI absolute encoder
[8] X86: Socket for CAN interface
[9] X87: Socket for parameter setting and diagnostic interface
[10] Prefabricated cable DAE34B (part number: 1821 307 3) for CAN bus connection
between DCS21B X86 and X31 of the DFS12B/DFS22B option.
