SEW-Eurodrive MOVISAFE DCS B Series

Manual – MOVIDRIVE® MDX61B Safety Module MOVISAFE® DCS..B Option
73
5
Connection options of an encoder system
Installation

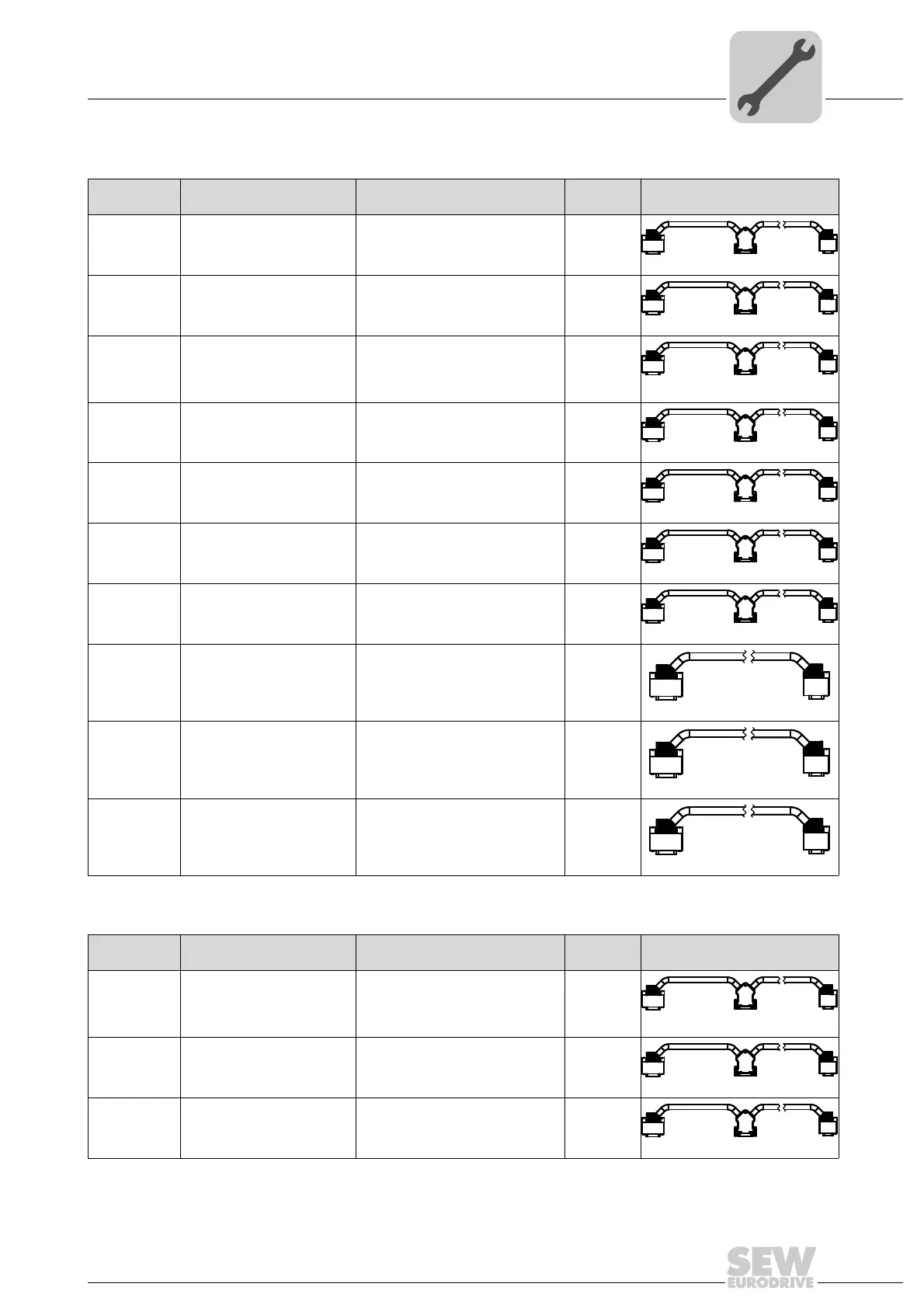

5.11.5 Split cables for MOVISAFE
®
DCS..B with serial number ≥ 1500
5.11.6 Split cables for MOVISAFE
®
DCS..B with serial number ≤1499
Designation Description Connection Part
number
Symbol
DAE40B Connection of SIN/COS and
TTL encoders
(asynchronous motor)
MOVIDRIVE
®
B:
• DEH11B:X14
• DER11B:X14
1811 447 4
4262727435
DAE41B Splitting of SIN/COS and TTL
encoders
(synchronous motor)
MOVIDRIVE
®
B:
• DEU11B:X14
• DEU21B:X14
1811 468 7
4262727435
DAE42B Splitting of SIN/COS and TTL
encoders
(asynchronous motor)
MOVIDRIVE
®
B:
• DEH11B:X15
• DER11B:X15
• DEU21B:X15
1811 602 7
4262727435
DAE43B Splitting of SIN/COS and TT
encoders
(synchronous motor)
MOVIDRIVE
®
B:
• DEH11B:X15
• DEH21B:X15
1811 467 9
4262727435
DAE44B Splitting of SSI encoders MOVIDRIVE
®
B:
•DIP11B:X62
• DEH21B:X15
1810 625 0
4262727435
DAE45B Splitting of SSI encoders MOVIDRIVE
®
B:
• DEU21B:X15
1811 709 0
4262727435
DAE46B External encoder (built-in
encoder EI7C, 15-pole)
Cable with D-sub 9 plug connectors
with resistor network for level
adjustment to TTL
1812 104 7
4262727435
DAE47B Adapter for SIN/COS and
TTL encoders
Cable (D-sub 15 to D-sub 9) with
resistors
1811 604 3
4262731403
DAE48B Adapter for SSI encoder Cable (D-sub 9 to D-sub 9) with
resistors
1811 917 4
4262731403
DAE49B Adapter for SSI encoder Cable (D-sub 15 to D-sub 9) with
resistors
1811 710 4
4262731403
Designation Description Connection Part
number
Symbol
DAE31B Splitting of SIN/COS and TTL
encoders
(asynchronous motor)
MOVIDRIVE
®
B:
• DEH11B:X14
• DER11B:X14
• DEU21B:X14
1810 053 8
4262727435
DAE32B Splitting of SSI encoders MOVIDRIVE
®
B:
•DIP11B:X62
• DEH21B:X62
1810 625 0
4262727435
DAE33B Adapter for SIN/COS and
TTL encoders
Cable (D-sub 15 to D-sub 9) with
resistors
1821 307 3
4262727435
