Manual – MOVIDRIVE® MDX61B Safety Module MOVISAFE® DCS..B Option
5
Installing the option MOVISAFE
®
DCS..B
Installation
5.4 Installing the option MOVISAFE
®
DCS..B
INFORMATION
• Option DCS..B can only be installed in MOVIDRIVE
®
MDX61B sizes 1 to 7 but not
in size 0.
• Option DCS21B can only be used in combination with the DFS12B/22B fieldbus
interface option. Option DCS21B must be installed in the expansion slot, and

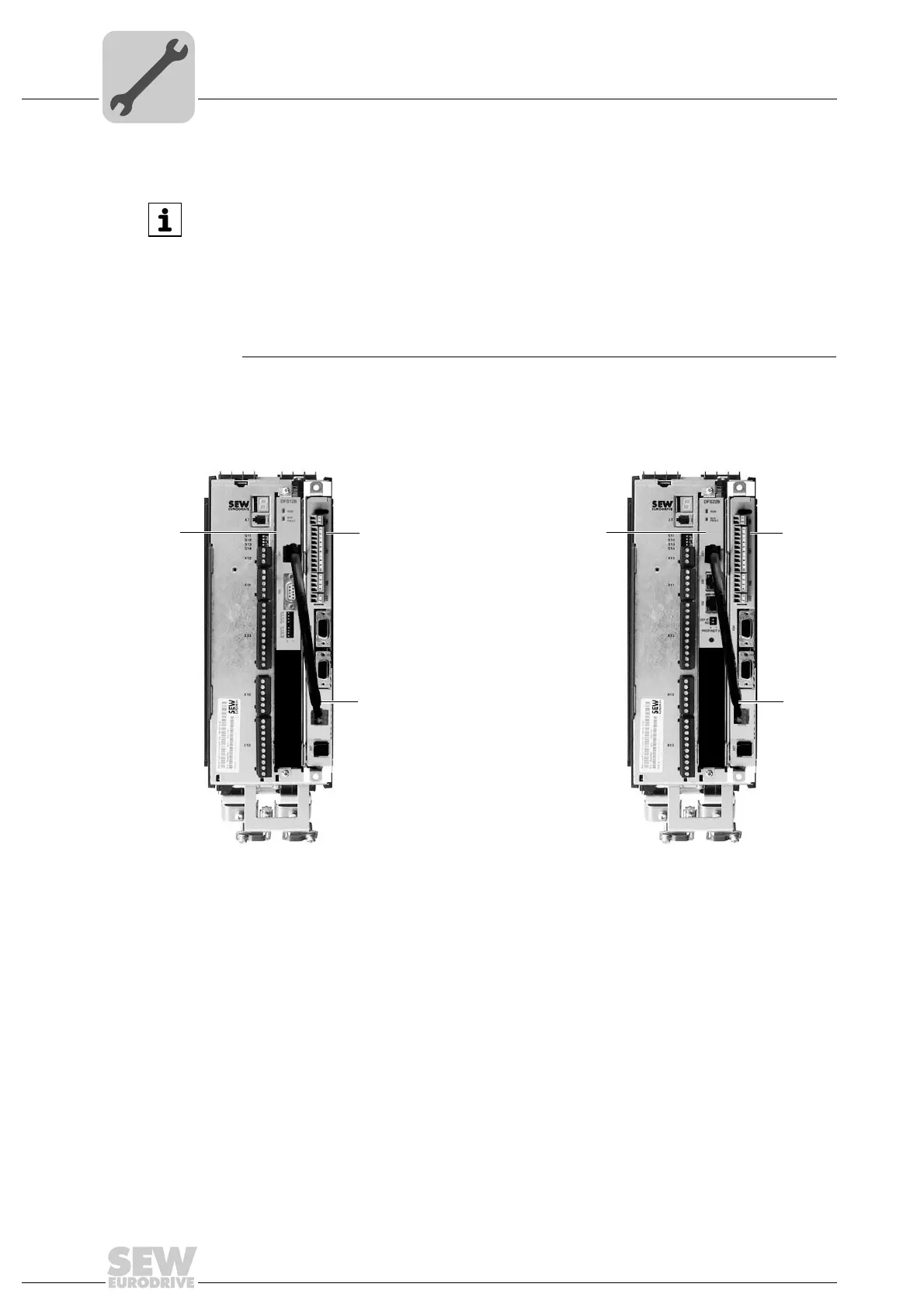

option DFS12B/22B in the fieldbus slot (see following figure).
• The prefabricated cable DAE34B (part number 1821 307 3) is used for CAN bus
connection between DCS21B X86 and X31 of the DFS12B/22B option.
The scope of delivery of the DCS21B option includes the DAE34B.
1991015307
DFS22B
MOVIDRIVE
®
MDX61B
BG1 - 7
DCS21B
DCS21B
X86
DFS12B
DCS
21B
DCS21B
DCS21B
DAE34B
X86
DAE34B
