Connecting binary outputs
Installation

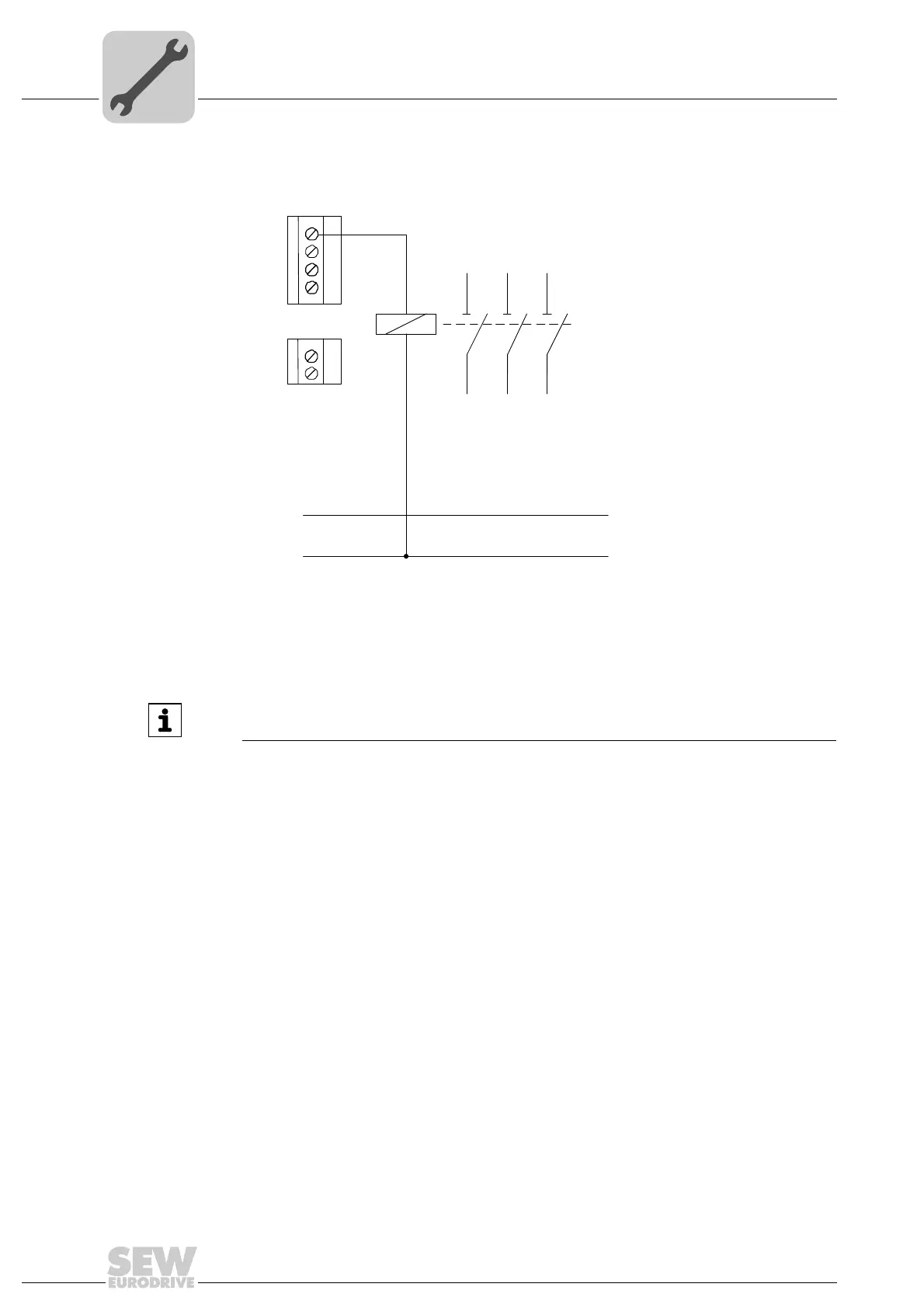

5.9.1 Single-pole switching binary output not monitored
You can use external contactors to connect multi-phase applications or in applications
with an increased current consumption. Note that with single-pole connection without
external monitoring, welding of one or more external contacts will not be detected by the
DCS..B option.
1973470091
DC 24 V
DC 0 V
1
2
3
X82
4
DO0_P
1
2
X83
DO2_P
DO2_M
DO0_M
DO1_P
DO1_M
INFORMATION
The following sample circuit is not suitable for safety applications.
