Connection options of an encoder system
Installation
5.11.4 Split cables and adapter cables
The length of adapter cables and the B-side of the split cable can be configured from 0.6
to 6 m.
1982596747

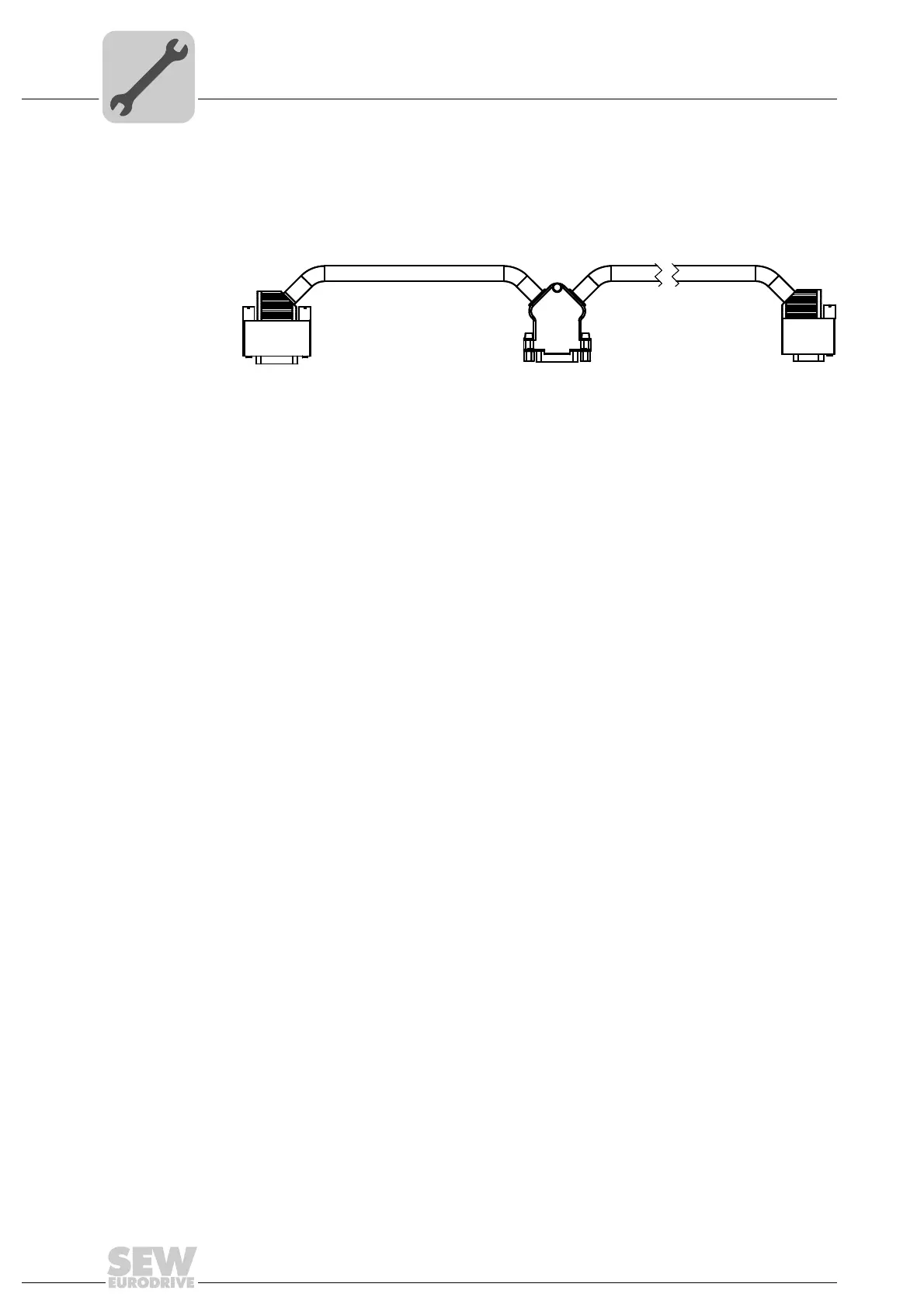

[A] A-side with fixed length (0.2 m)
[B] B-side with variable length (0.2 m to 6 m)
[I] Encoder card connection
[II] Encoder connection
[III] Connection of MOVISAFE
®
UCS..B
[II]
[I]
[III]
[A]
[B]
