Manual – MOVIDRIVE® MDX61B Safety Module MOVISAFE® DCS..B Option
5
Connecting binary outputs
Installation
5.9.3 Using binary outputs for switching safe stop of MOVIDRIVE
®
B
Binary outputs DO2_P and DO2_M can be used for control of the safe stop function
(X17) of MOVIDRIVE
®
B.

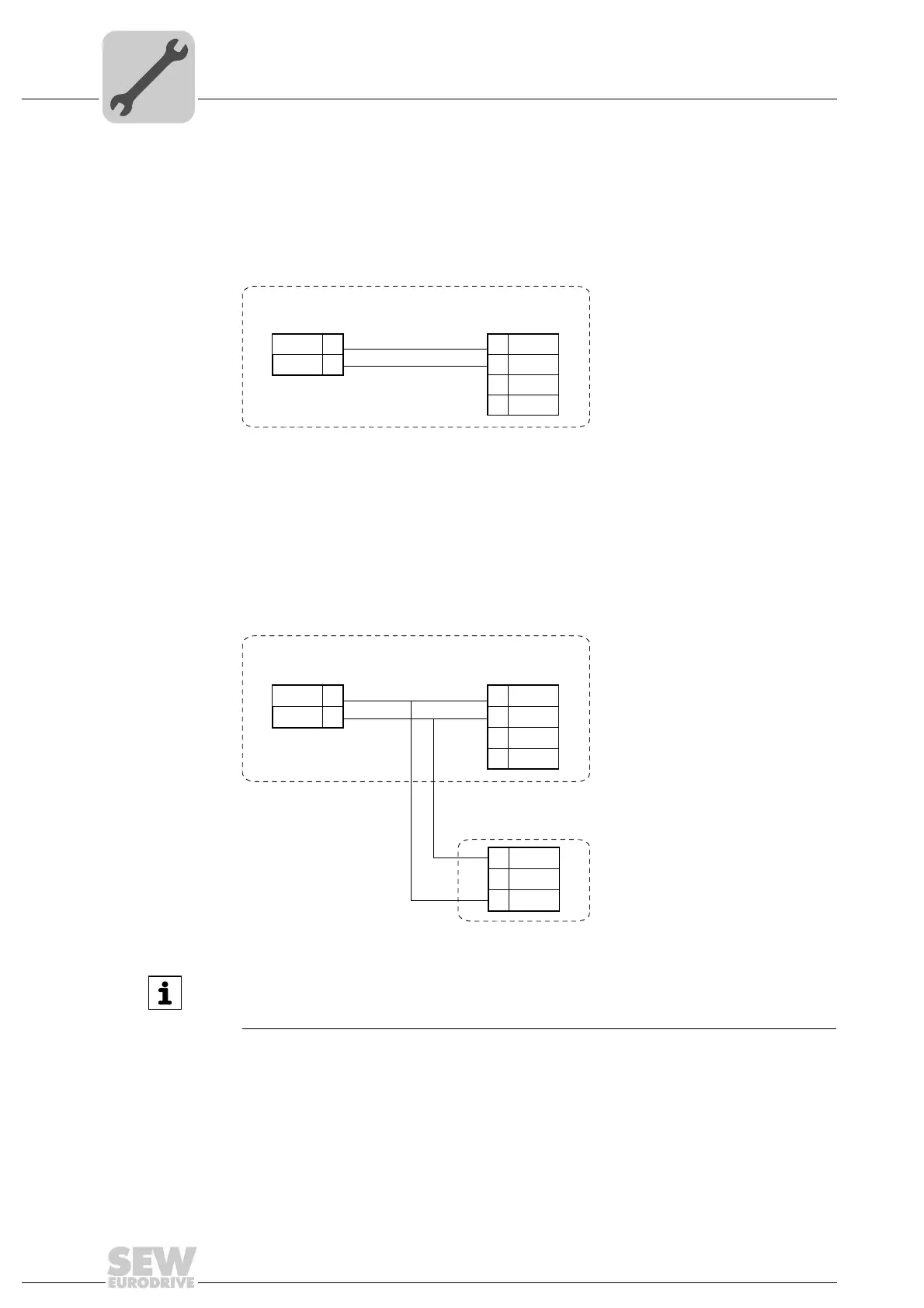

The following wiring diagram shows the wiring of MOVIDRIVE
®
B with installed DCS..B
option and safety-relevant BST brake module. For more detailed information about the
BST option, refer to the document "Safety-Relevant BST Brake Module for Control
Cabinet Installation".
2060220171
2060768779
MOVIDRIVE
®
MDX61B
DGND
DO2_P
VO24
SOV24
SVI24
1
2
3
4
X17
X83
DCS 21B/31B
1
DO2_M
2
MOVIDRIVE
®
MDX61B
DGND
DO2_P
VO24
SOV24
SVI24
1
2
3
4
X17
X83
DCS 21B/31B
1
DO2_M
2
N.C.
S0V24
SVI24
5
6
BST
●
●
INFORMATION
The output X83 of the DCS..B option can drive a maximum of two MOVIDRIVE
®
B and
two safety-related BST brake modules independent of the required current.
