Manual – MOVIDRIVE® MDX61B Safety Module MOVISAFE® DCS..B Option
61
5
Connecting binary outputs
Installation
Category 3 and 4
structures

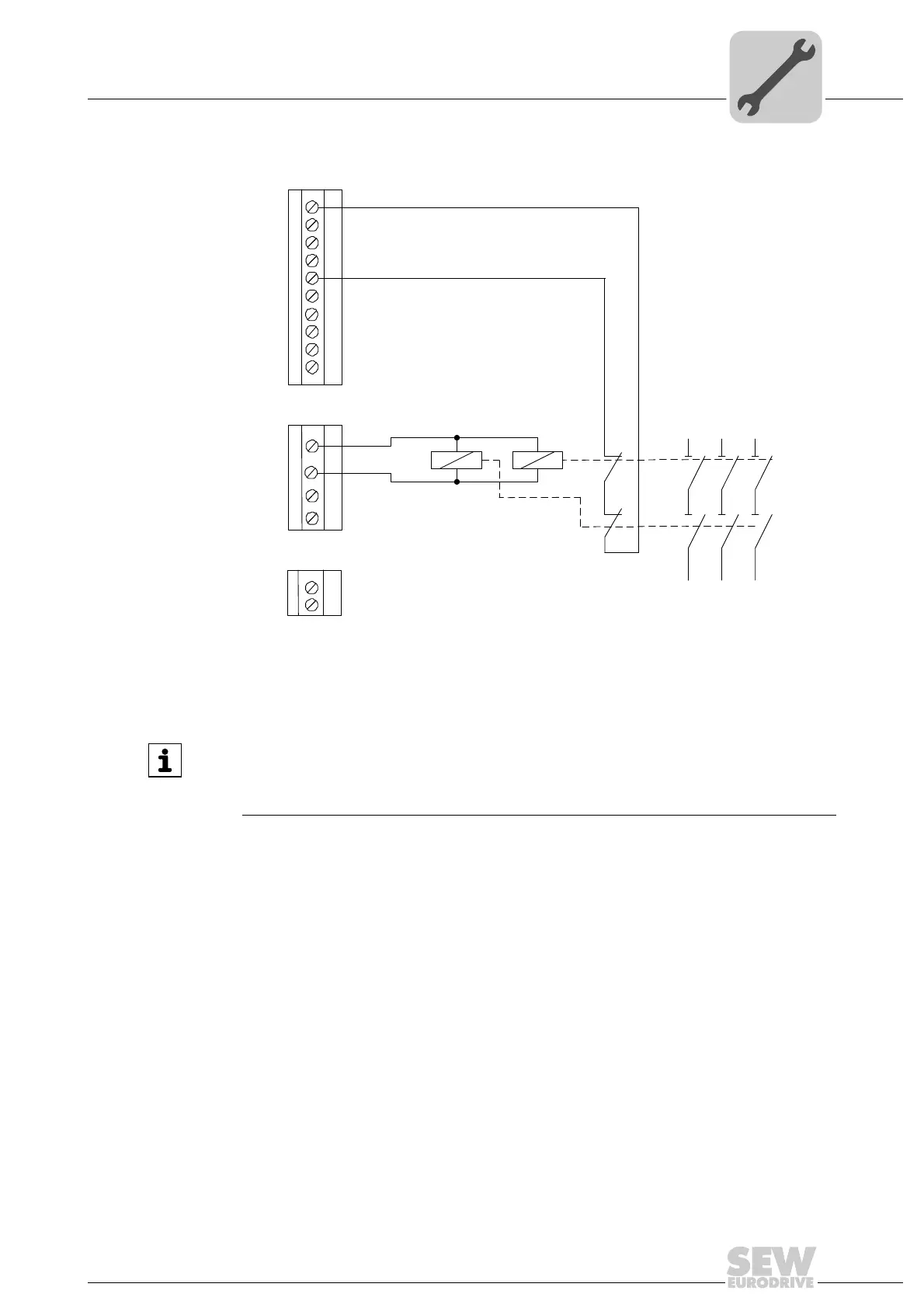

To control several switching elements, two complementary binary outputs are
connected as a group and control two external power contactors.
1973619467
X82
1
2
3
4
DO0_P
DO0_M
1
2
X83
DO2_P
DO2_M
P1
P2
DI1
DI2
DI3
DI4
DI5
DI6
DI7
DI8
X81
1
2
3
4
5
6
7
8
9
10
INFORMATION
Take into account the maximum output current of the binary outputs and the maximum
current consumption of the contactors. A category 4 structure according to
EN ISO 13849-1 can be achieved with the circuit.
