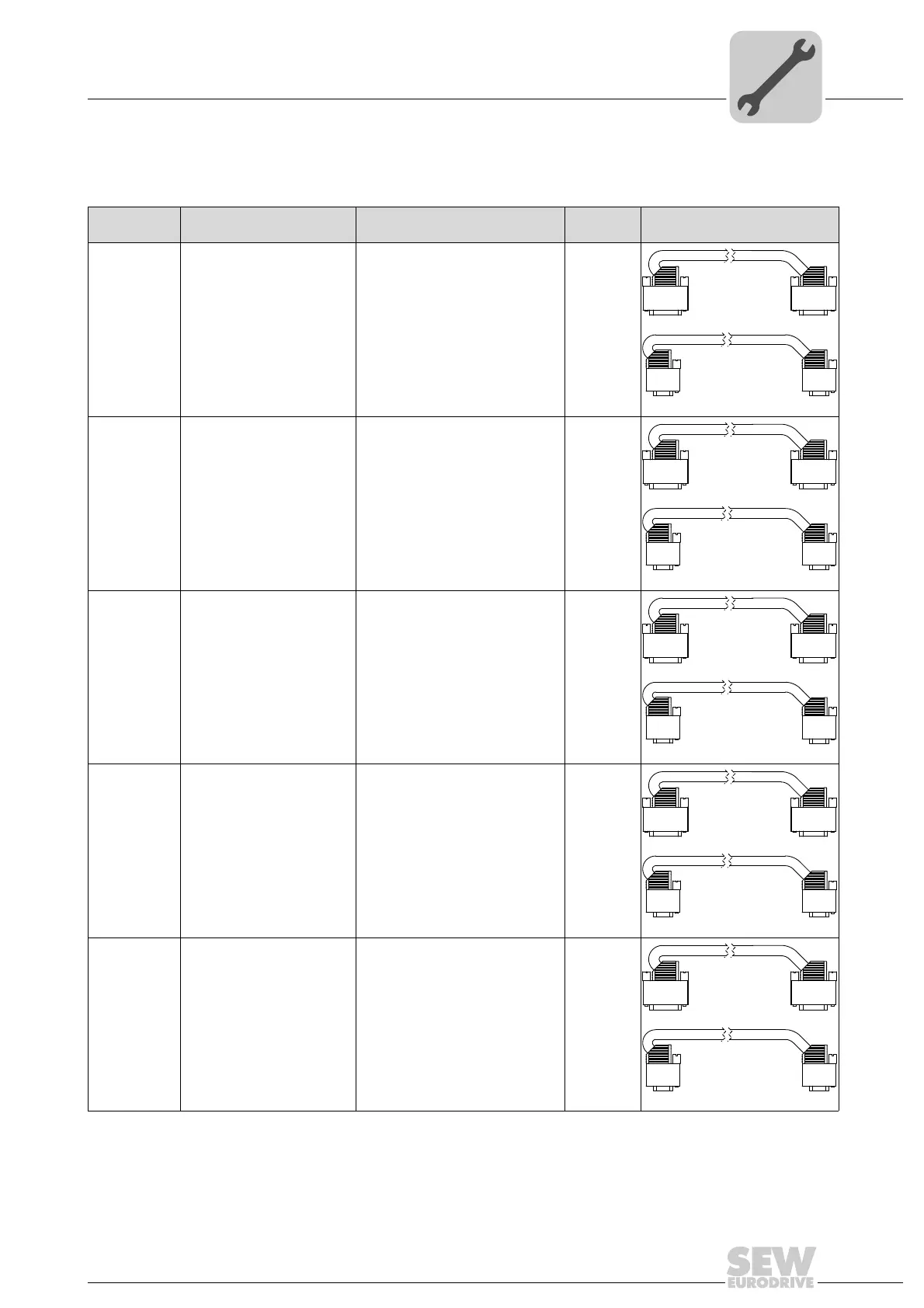

Connection options of an encoder system
Installation
5.11.3 Cable sets for encoder signal split boxes
The connection cables for the cable sets are delivered with a fixed length of 1.5 m.
Designation Description Connection Part
number
Symbol
Cable set 1 Cable set for encoder signal
split box for MOVIDRIVE
®
B
with DEH11B, DEH21B and
DEU21B and MOVISAFE
®
UCS..B for splitting SIN/COS
and TTL signals; with
DEU21B also SSI signals
Includes following cables:
• DAE80B
• DAE82B
1824 690 7
4925961867
Cable set 2 Cable set for encoder signal
split box for MOVIDRIVE
®
B
with DEH11B, DEH21B and
DEU21B and MOVISAFE
®
DCS..B for splitting SIN/COS
and TTL signals; with
DEU21B also SSI signals
Includes following cables:
• DAE80B
• DAE83B
1824 691 5
4925961867
Cable set 3 Cable set for encoder signal
split box for MOVIAXIS
®
and
MOVISAFE
®
UCS..B for
splitting SIN/COS, TTL and
SSI signals
Includes following cables:
• DAE81B
• DAE82B
1824 692 3
4925961867
Cable set 4 Cable set for encoder signal
split box for MOVIDRIVE
®
B
with DIP11B and DEH21B
and MOVISAFE
®
DCS..B for
splitting SSI signals
Includes following cables:
• DAE84B
• DAE83B
2820 303 8
4925961867
Cable set 5 Cable set for encoder signal
split box for MOVIDRIVE
®
B
with DIP11B and DEH21B
and MOVISAFE
®
UCS..B for
splitting SSI signals
Includes following cables:
• DAE84B
• DAE82B
2820 304 6
4925961867
