SGM Technology for lighting GB
Pilot 3000 Us
er’s Manual 1.00
- 103 -
As you can notice in the figure in the previous page, there are two columns of Palettes where each of them
has the same keys sequence. This is due to the fact that the choice of a Palette from the left column effects
the oscillator’s starting point (A), whilst the choice of a Palette from the right column effects the oscillator’s
arrival point (B). The selection of two Palettes defines the range that will be applied to the Attribute.

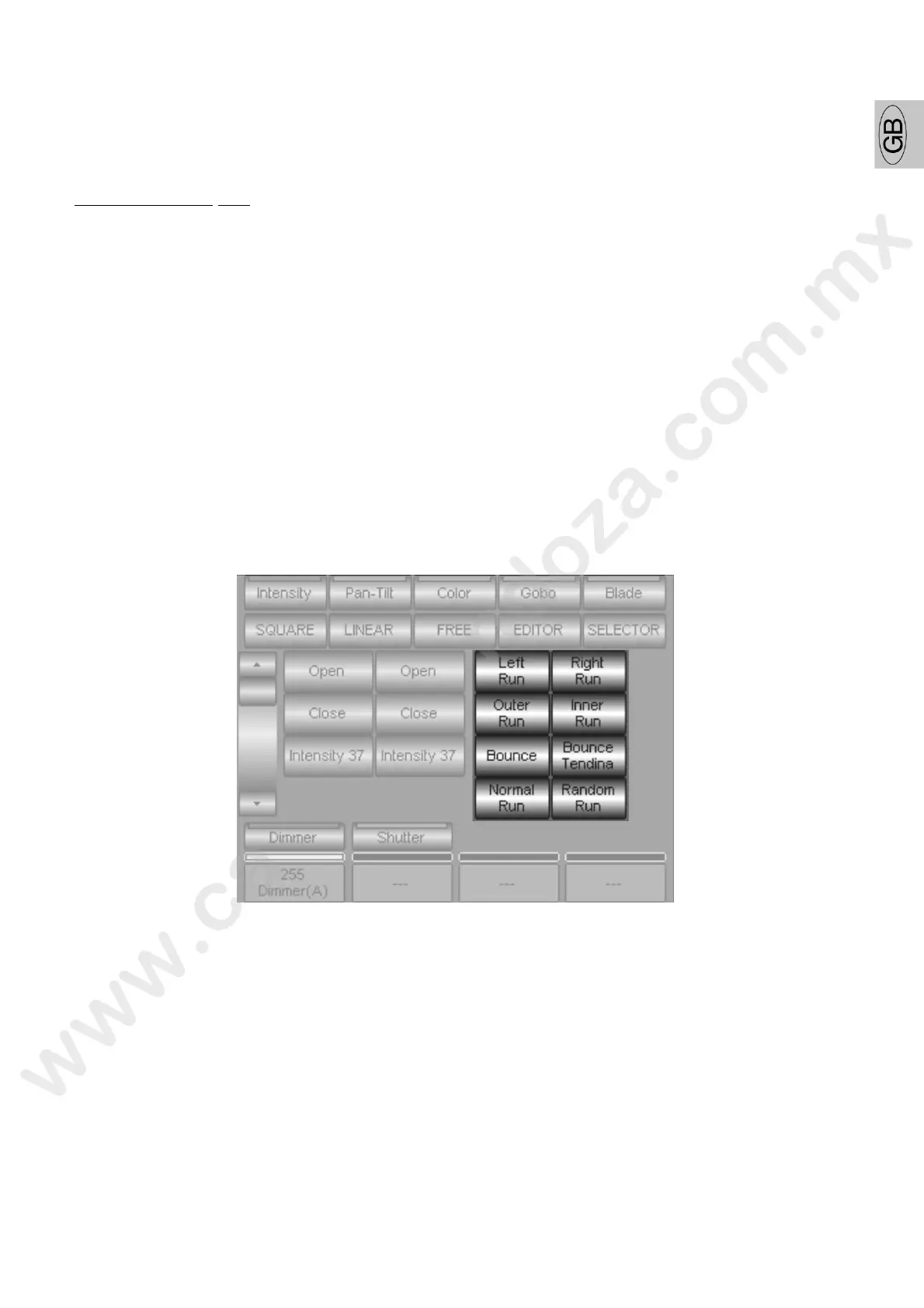

Phase displacement keys
By means of the phase displacement keys you can delay an effect related to a group of fixtures.
The phase displacement types which can be applied to an effect are:
Left Run: The phase displacement moves the effect applied in a sequential way from the left to the
right.
Right Run: The phase displacement moves the effect applied in a sequential way from the right to th
left.
Outer Run: The phase displacement moves the effect applied in sequential a sequential wa from the
centre to the external.
Inner Run: The phase displacement moves the effect applied in a sequential way from the external to
the centre.
Bounce: The phase displacement moves the effect applied bouncing back and f rth.
Bounce Tendina: The phase displacement moves the effect applied bouncing from the centre
outwards in both directions.
Normal Run: All the fixtures selected are re-phased so that they move al t gether at the same time.
Random Run: The phase displacement moves the effect applied random
