By means of the second Encoder Wheel “Patch Scroll” it is now possible o go through the fixtures
already patched.
The fixture list for the selected Brand is still active and it will be po s ble o add other fixtures to the
patch, different from the ones already patched.
In addition is also possible to return to the Brand list by pushin t e and touch key, and patch new
fixtures included with other manufacturer brand names.

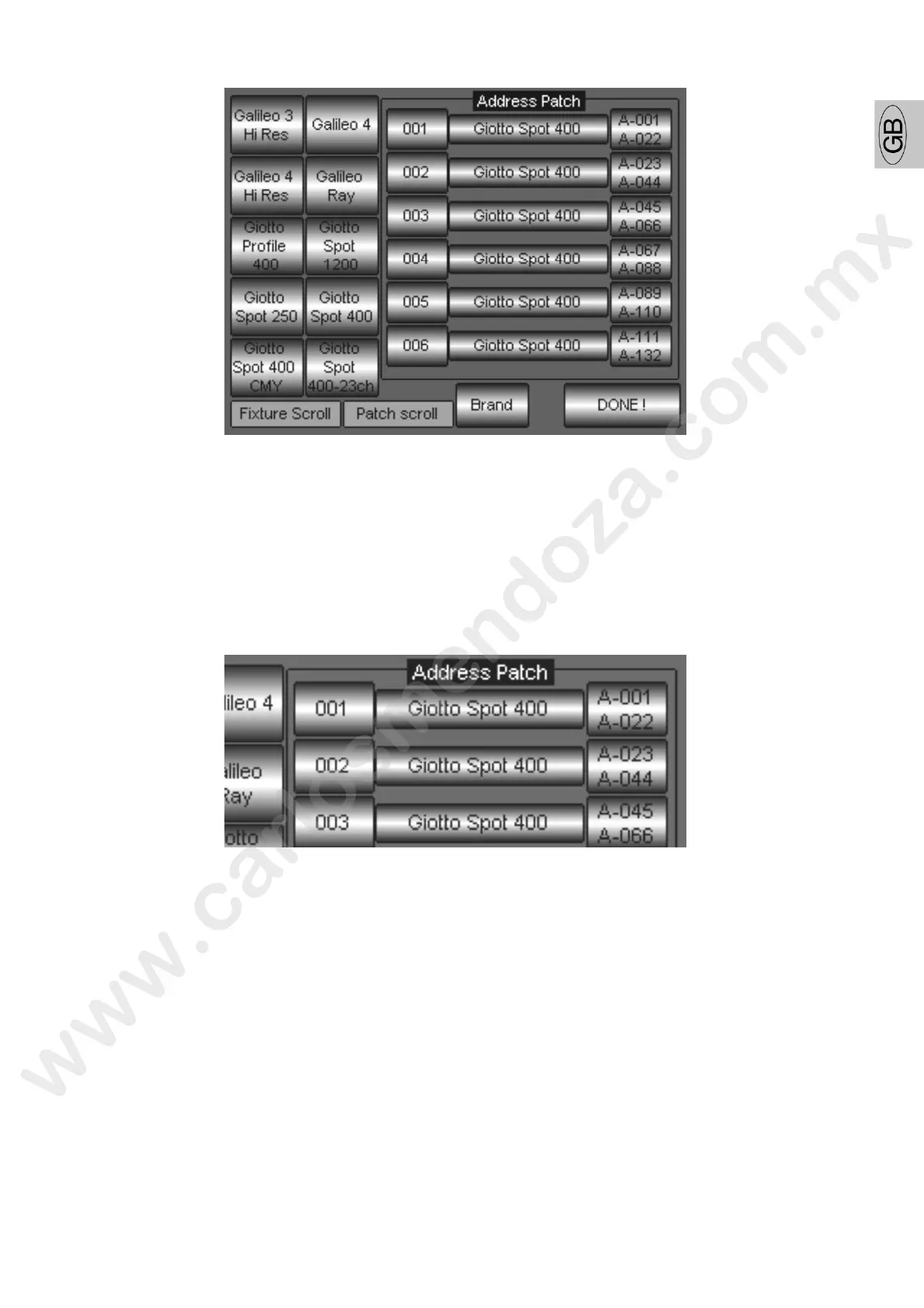

Each single line within the “Address Patch” field gives t e p ssibility to access to functions which
allow changing and “re-patching” the selected fixture.
ID Keys Fixture name Keys Address Keys
Each single line is ade of three touch keys which can be named as (left to right):
1. ID Keys (001, 002…)
2. Fix ure name Keys (Giotto Spot 400)
3. Address Keys (A-001 A-022)
Foll wing a description of the capability available for each single touch key.
