Projector and PC Connections
This software requires the use of an RS-232C serial cable, LAN cable
or infrared communications. For details on PC connections, refer to the
projector’s operation manual.
CAUTION
Before connecting, be sure to turn both the projector and the computer
off. After making all connections, turn the projector on first. The computer
should always be turned on last.
● Please read the computer’s instruction manual carefully.
● If you use the NV5/6/7 projector, image transfer by using infrared
communications can be available.
Connecting Multiple Projectors with PC

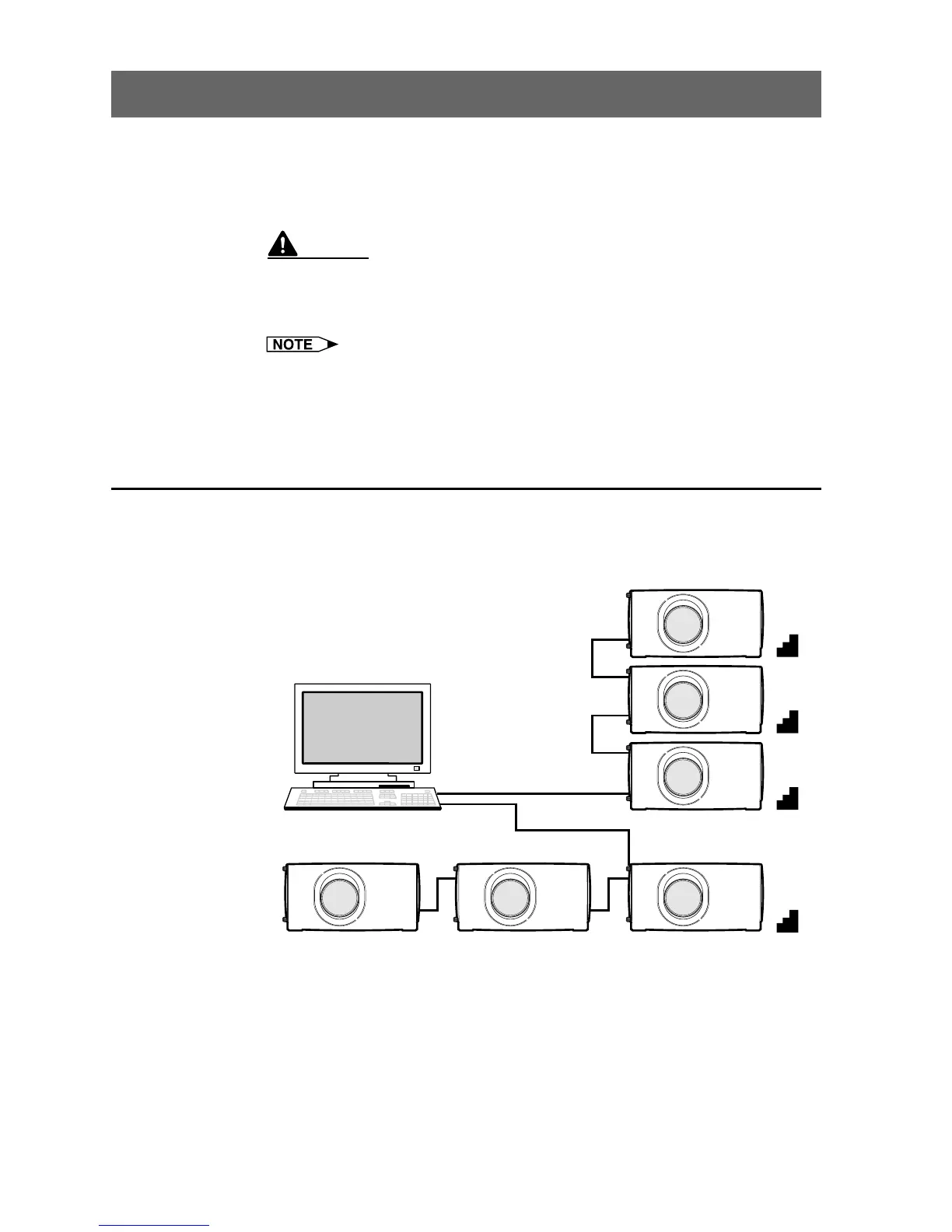

When connecting multiple projectors using ID numbers
(when forming a network system consisting only of XG-V10
Series and XG-P20X and XG-P25X projectors)
PC
OUT
OUT
OUT
IN
IN
IN
IN
IN
OUT
IN
3F
2F
1F
B1
● The connection between PC and the Projector or the Projector and
the Projector is possible by using the projector’s RS-232C IN/OUT
terminal.
● Up to 250 projectors can be connected.
● Up to 99 COM ports can be used.
● Daisy chain connections are possible.
● LAN connections are possible only with models from the XG-V10
series with the optional extension board (AN-L10T) installed.
● See “Table of Functions by Model” (page 92) about the projector’s
available functions.
