Chapter 2 Configuration of GC-2014

GC-2014 Service Manual

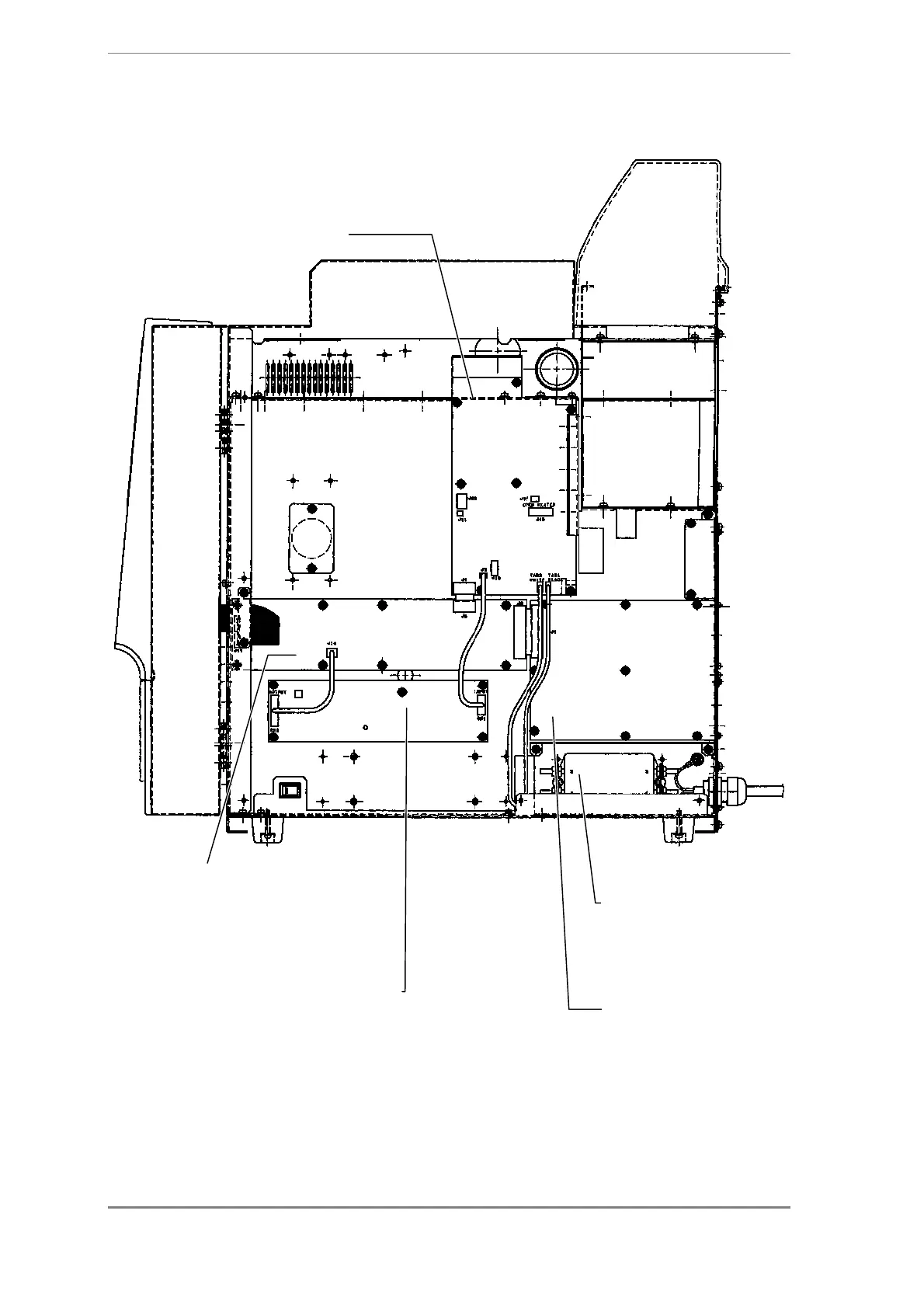

2.2.3 Structure Diagram 2

POWER UNIT, 2014+, 100 V (100-V system)

S221-48460-42

POWER UNIT, 2014+, 230 V (200-V system)

S221-48460-49

PCB DET I/F, GC2014+

S221-75120-41

POWER SUPPLY, VS100B-24 (100-V system)

S074-80654-77

POWER SUPPLY, LEA100F-24 (200-V system)

S074-80427-61

FILTER, SUPF-EX30-ER-6

S075-00179-03 (100-V system)

FILTER, SUPF-EX20-ER-6

S075-00179-02 (200-V system)

PCB CPU ASSY GC2014+

S221-73277-43
