Shimadzu GC-2014 Service Manual

Chapter 5 Detector Unit
GC-2014 Service Manual
54

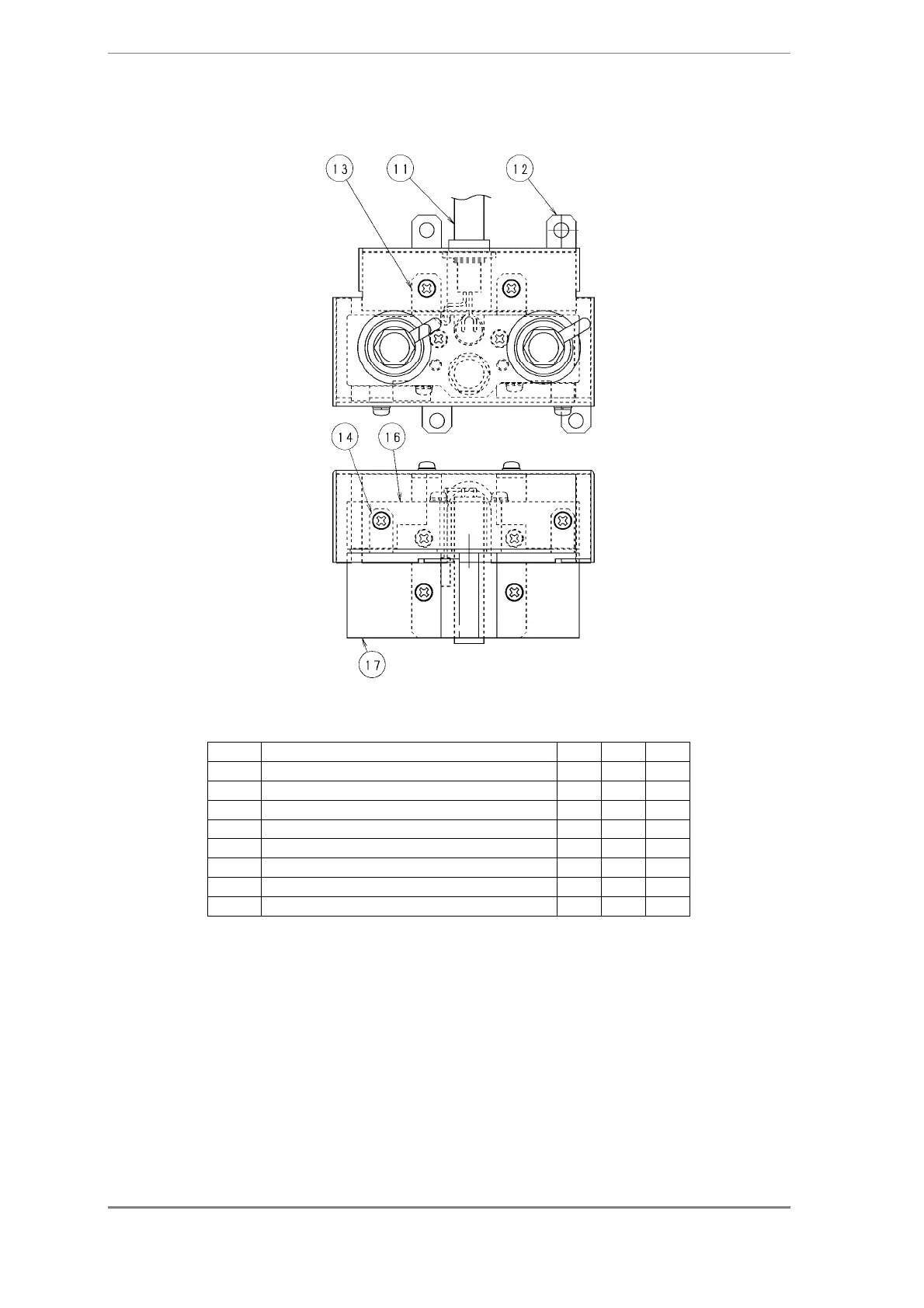

5.2.1 DET HEATER ASSY, F
Parts List for DET HEATER ASSY, F, S221-75085-44 (230 V), -41 (100 V), -42 (115 V)
No. Part Name 230 V 100 V 115 V
11 HEATER, PT ASSY, D-FID 230 1
11 HEATER, PT ASSY, D-FID 100 1
11 HEATER, PT ASSY, D-FID 115 1
12 DET, DUAL, UPPER COVER, FID 1 1 1
13 DET, DUAL, BLOCK PLATE A 1 1 1
14 LOCK RING, DET, DUAL 1 1 1
16 DET, DUAL, BLOCK, UPPER 1 1 1
17 DET, DUAL, BLOCK, LOWER 1 1 1

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
