Shimadzu GC-2014 Service Manual

Chapter 4 Sample Injection Unit
GC-2014 Service Manual
49

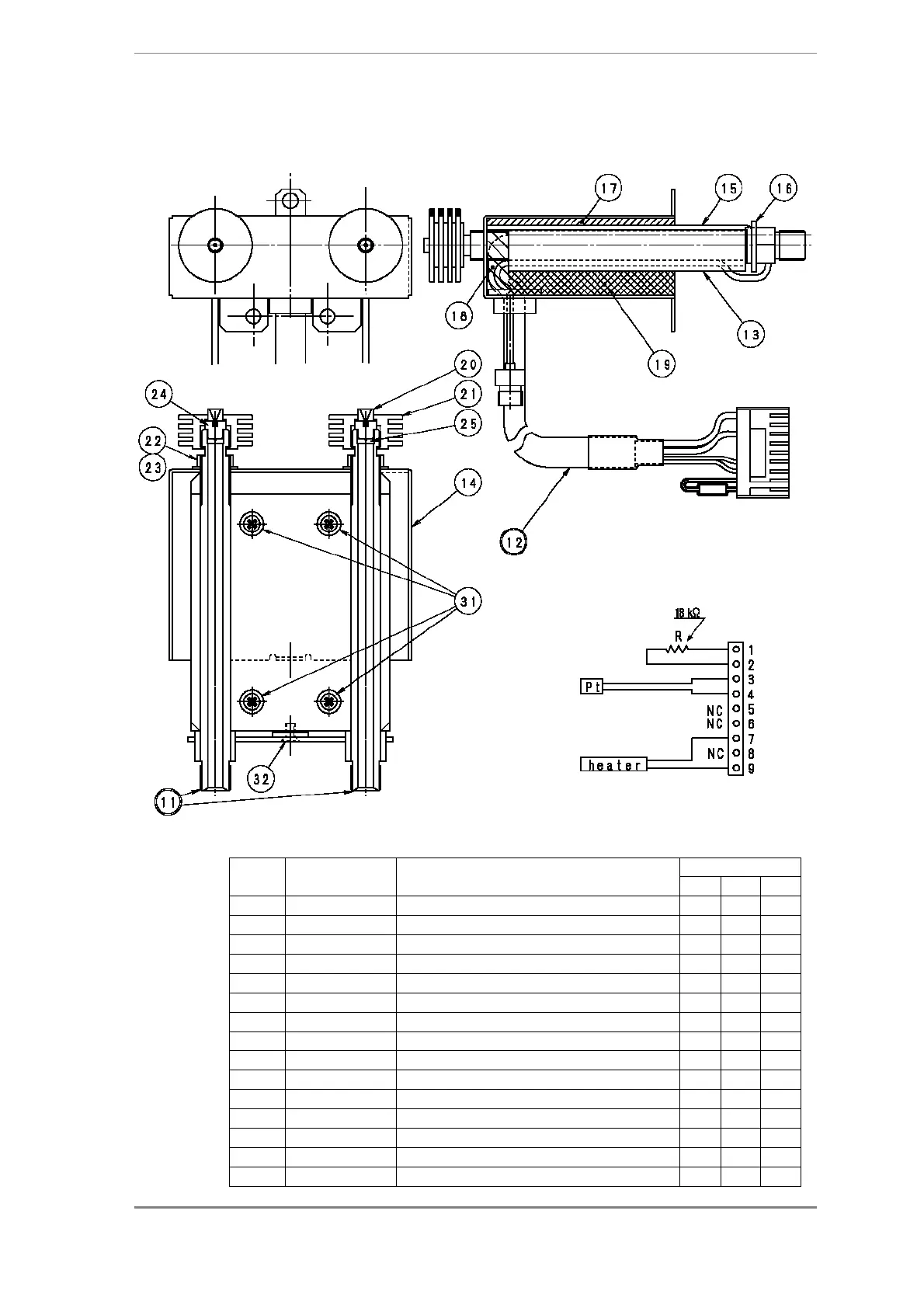

4.4 Packed Dual Injector
Parts List for Packed Dual INJ, S221-75080-84 (230 V), -81 (100 V), -82 (115 V)
Quantity
No. P/N Part Name
230 V 100 V 115 V
11 S221-70189-91 INJECTION UNIT ASSY, 122 2 2 2
12 HEATER, PT ASSY, P-INJ230 1
12 HEATER, PT ASSY, P-INJ100 1
12 HEATER, PT ASSY, P-INJ115 1
13 HEATER BLOCK, DUAL INJ 1 1 1
14 COVER, PACKED DUAL INJ 1 1 1
15 HOLDING PLATE, HEATER 1 1 1
16 LOCK RING 1 1 1
17 HEAT SENSITIVE MATERIAL, PACKED 1 1 1 1
18 HEAT SENSITIVE MATERIAL, PACKED 2 1 1 1
19 HEAT SENSITIVE MATERIAL, PACKED 3 1 1 1
20 S221-44584 NEEDLE GUIDE, AOC 2 2 2
21 S221-70466 FIN, 2014 2 2 2
24 RUBBER PLUG, INJ PORT, SILICONE 2 2 2
25 S221-22206 SPACER, INJ 2 2 2

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
