Shimadzu GC-2014 Service Manual

Chapter 2 Configuration of GC-2014
GC-2014 Service Manual
25

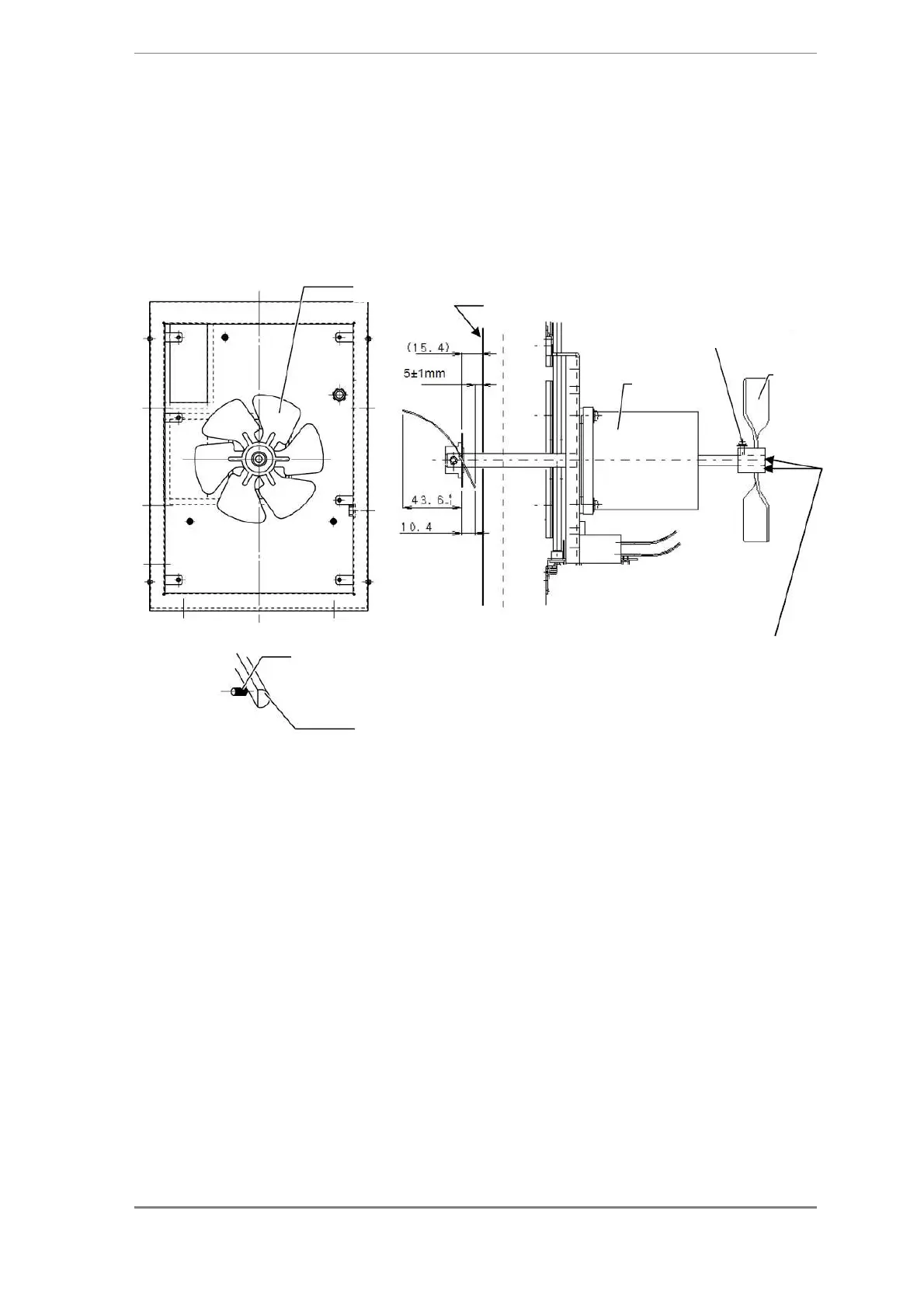

2.2.8 Fan
Fit the fan (P/N S221-73600) to the motor shaft, attaching it at a position 5 mm  1 mm
from the back.
In this configuration, fasten the fan with the set screw included with the fan.
S221-73600
SILENT FAN
Back of the oven
Fan
FAN MOTOR
ASSY
The screw approaches the motor side.
S221-12949
COOLING FAN
Make the fan boss flush with
the fan motor shaft (back
side).
Fan set screw
Motor shaft
When fastening the fan to the
motor shaft, the set screw
must touch the flat surface of
the shaft.

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
