Shimadzu GC-2014 Service Manual

Chapter 8 Service Window
GC-2014 Service Manual
81
Chapter 8 Service Window
This chapter describes the service window that is displayed by pressing the [FUNC] key,
selecting [7. Service/Maintenance]  [5. Service], and entering the correct password in the
resulting password entry window.

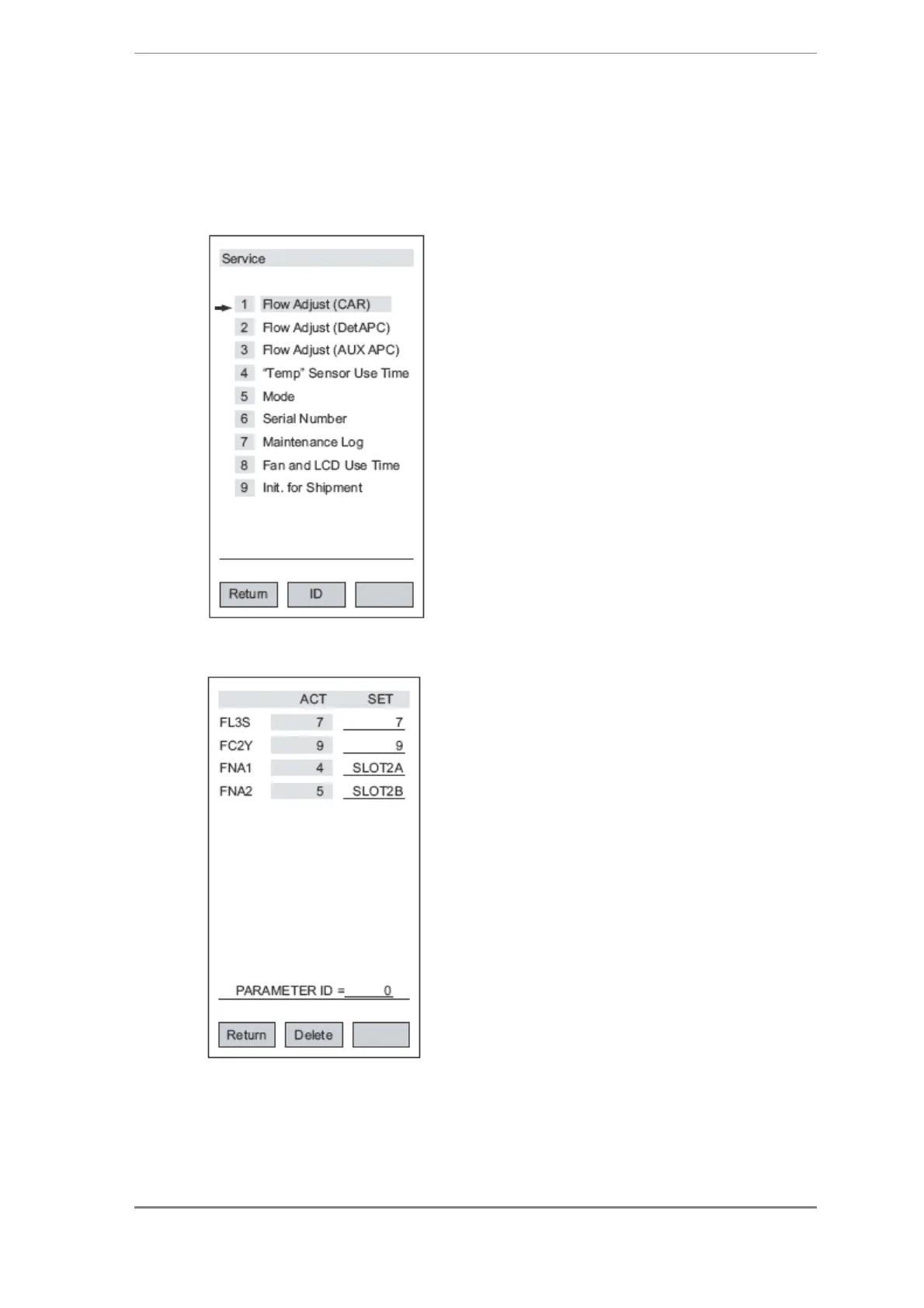

Pf2: ID Window
pf2: Displays the ID window.
This single window can be used to check all the
parameters.
Entering a PARAMETER ID makes it possible to check the
value of the corresponding parameter. When the cause of a
fault is unknown, this function can be used to respond to
requests such as "Check the value set for No. XXXX with
the ID window" issued from our Quality Assurance
Department.
It is planned that this window will be used for remote
maintenance in the future.

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
