Shimadzu GC-2014 Service Manual

Chapter 2 Configuration of GC-2014
GC-2014 Service Manual
28
2.3 Electric Circuits
2.3.1 Block Diagram



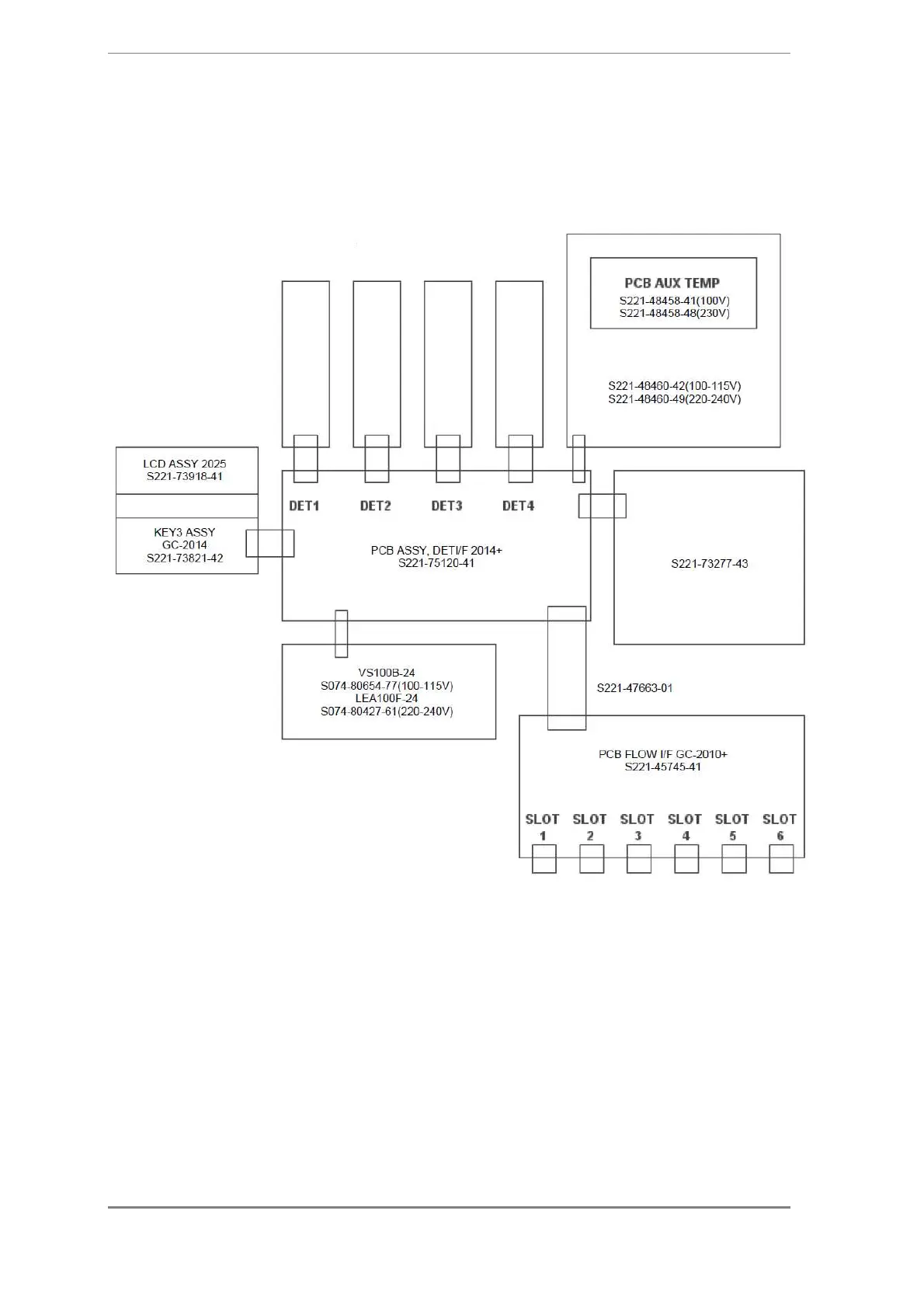

Fig. 2.3.1 Block Diagram
Note:
 One AFC can be mounted to one odd-numbered slot and one even-numbered slot.
 The AFCs are recognized as CAR1 and CAR2 in order of increasing slot number.
Controller for detectors
Power unit
CPU unit, GC-2014+
Flat cable 34P

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
