Shimadzu GC-2014 Service Manual

Chapter 2 Configuration of GC-2014
GC-2014 Service Manual
27

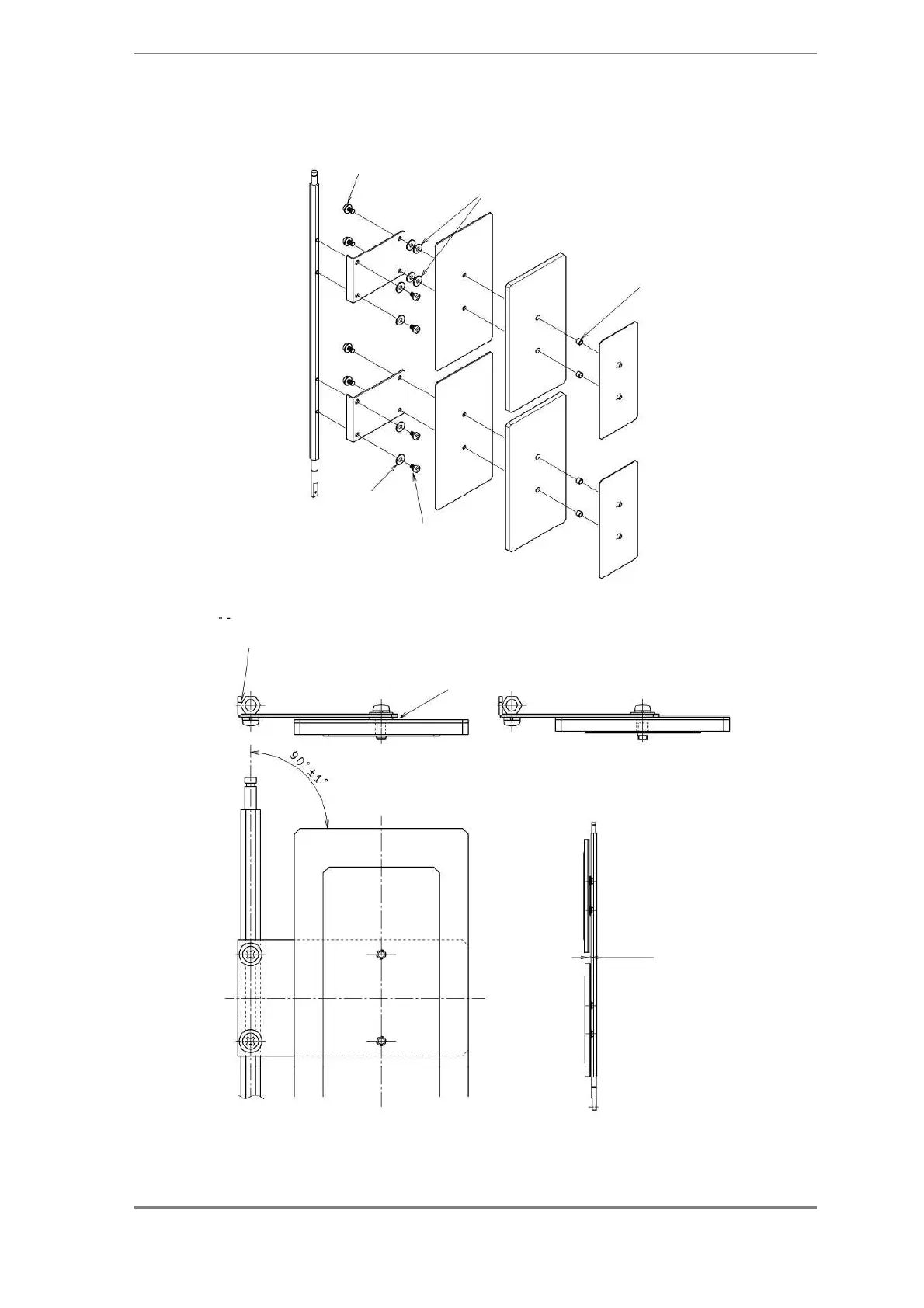

Detailed Drawing of the Flap
P3 M3

10
4 PIECES
CROSS PAN WASHER SCREW M3

12
4 PIECES
W M3
2 PIECES EACH (4 PIECES IN TOTAL)
SPACER SPC 3

3
4 PIECES
W M3
4 PIECES
PLAIN
WASHER M3
4 PIECES
P2 M3

6
4 PIECES
CROSS PAN
WASHER
SCREW M3

6
4 PIECES
Touch and fasten
Two washers are inserted at
the top of the flap.
Top of the flap
Bottom of the flat
1 to 2
mm
The top flap must protrude
ahead by at least 2 washer
widths (approx. 1 mm).
Drawing of the
Back Surface

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
