Chapter 2 Configuration of GC-2014
GC-2014 Service Manual
23

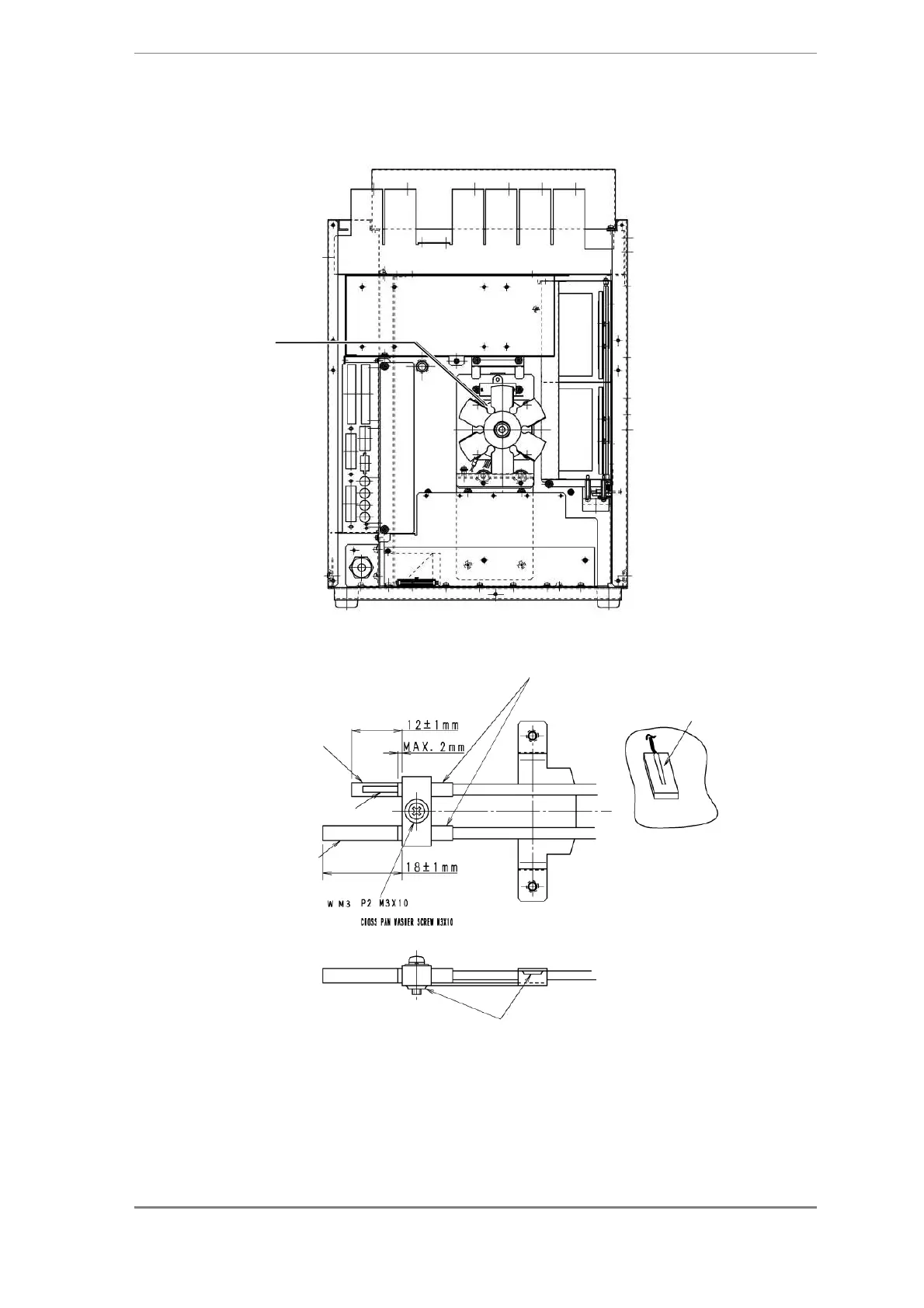

2.2.4 Structure Diagram 3
2.2.5 PT Sensor and Thermocouple
MOTOR ASSY
S221-73248-41
MOTOR ASSY, 115
S221-73248-42
MOTOR ASSY, 230
S221-73248-48
Silicon glass tube
PT SENSOR ASSY+
(S221-43695-41)
The top of the element
must face front.
Top of the element
Element
Thermocouple
(S221-43696-91)
1 pc. 1 pc.
The blurred surface
must
be on this side.
