Chapter 5 Detector Unit
GC-2014 Service Manual
53
5.2 FID

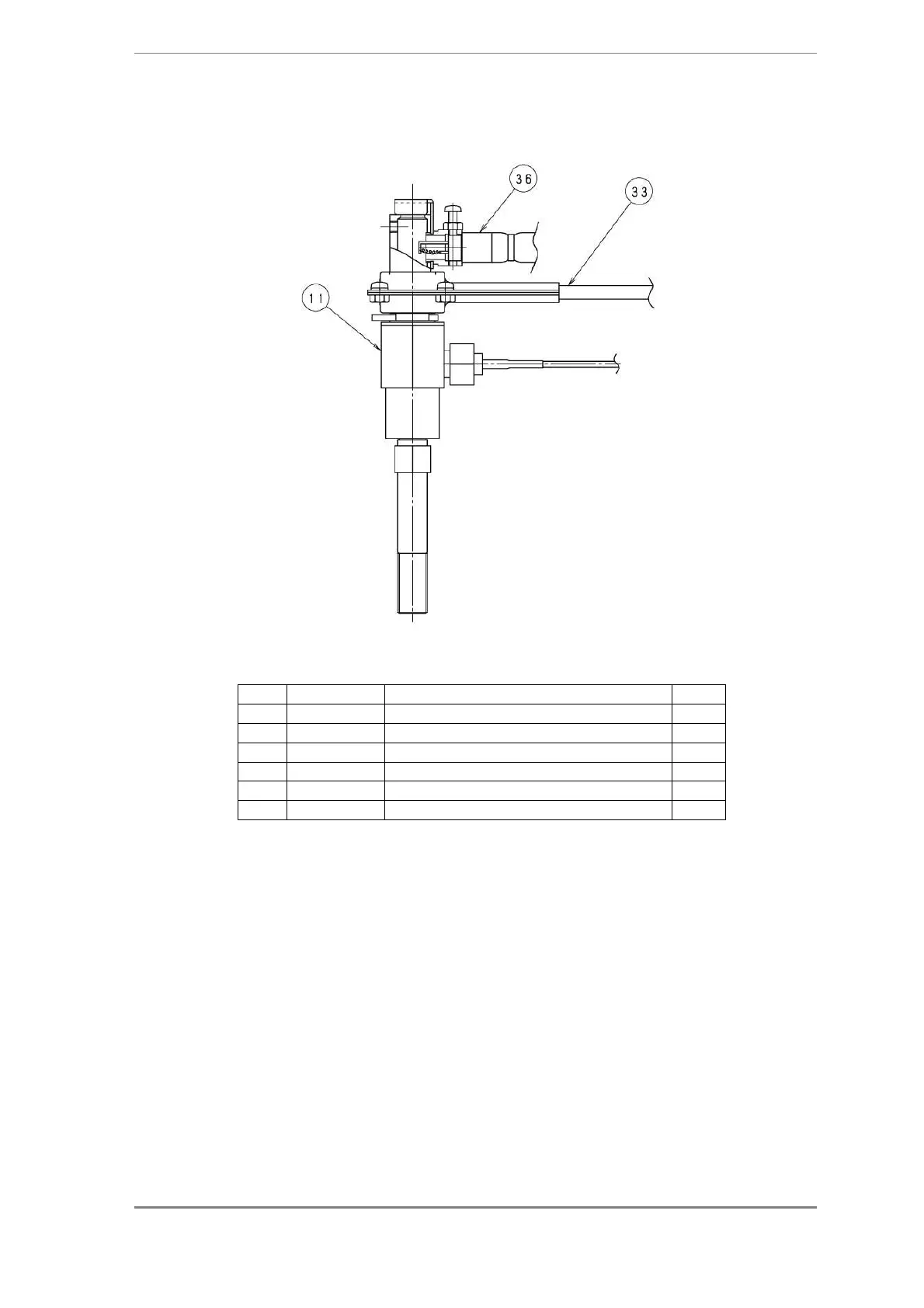

Parts List for FID-2014 CELL ASSY, S221-70090-91
No. P/N Part Name Quantity
11 S221-70630-91
FID-2014 CELL BASE ASSY 1
11-1
S221-70298-91
BASE UNIT, ASSY, FID 1
11-2
S221-70162-92
NOZZLE ASSY, PACKED 1
11-3
S221-47146-92
HIGH VOLTAGE ELECTRODE, FID-2014 1
33 S221-47659-92
COLLECTOR ASSY, FID, 600MM 1
36 S221-41847-93
FILAMENT ASSY, 180MM 1
