Shimadzu GC-2014 Service Manual

Chapter 4 Sample Injection Unit
GC-2014 Service Manual
48
4.3.1 Heater Resistance Values for HEATER, PT ASSY, SPL, 100 and
HEATER, PT ASSY, SPL, 230
Model name Heater resistance values
HEATER, PT ASSY, SPL, 100
90.0 to 99.3

HEATER, PT ASSY, SPL, 230
429.8 to 484.0

4.3.2 Recognized Resistance Values for HEATER, PT ASSY, SPL, 100 and
HEATER, PT ASSY, SPL, 230
As shown in the configuration diagrams and flow-line diagrams for SPL-2014 and
WBI-2014, the sample injection unit for SPL-2014 and WBI-2014 both use the SPL-2014
unit (for 100-120 V or 220-240 V), which has a recognized resistance value of 1 k,
regardless of the voltage type. For this reason, it is requested that the
temperature-control port name is set by the user when installing the WBI-2014 so that
SPL and WBI can be distinguished on the monitor screen.
4.3.3 Precautions for Replacing HEATER, PT ASSY, SPL, 100 and HEATER,
PT ASSY, SPL, 230

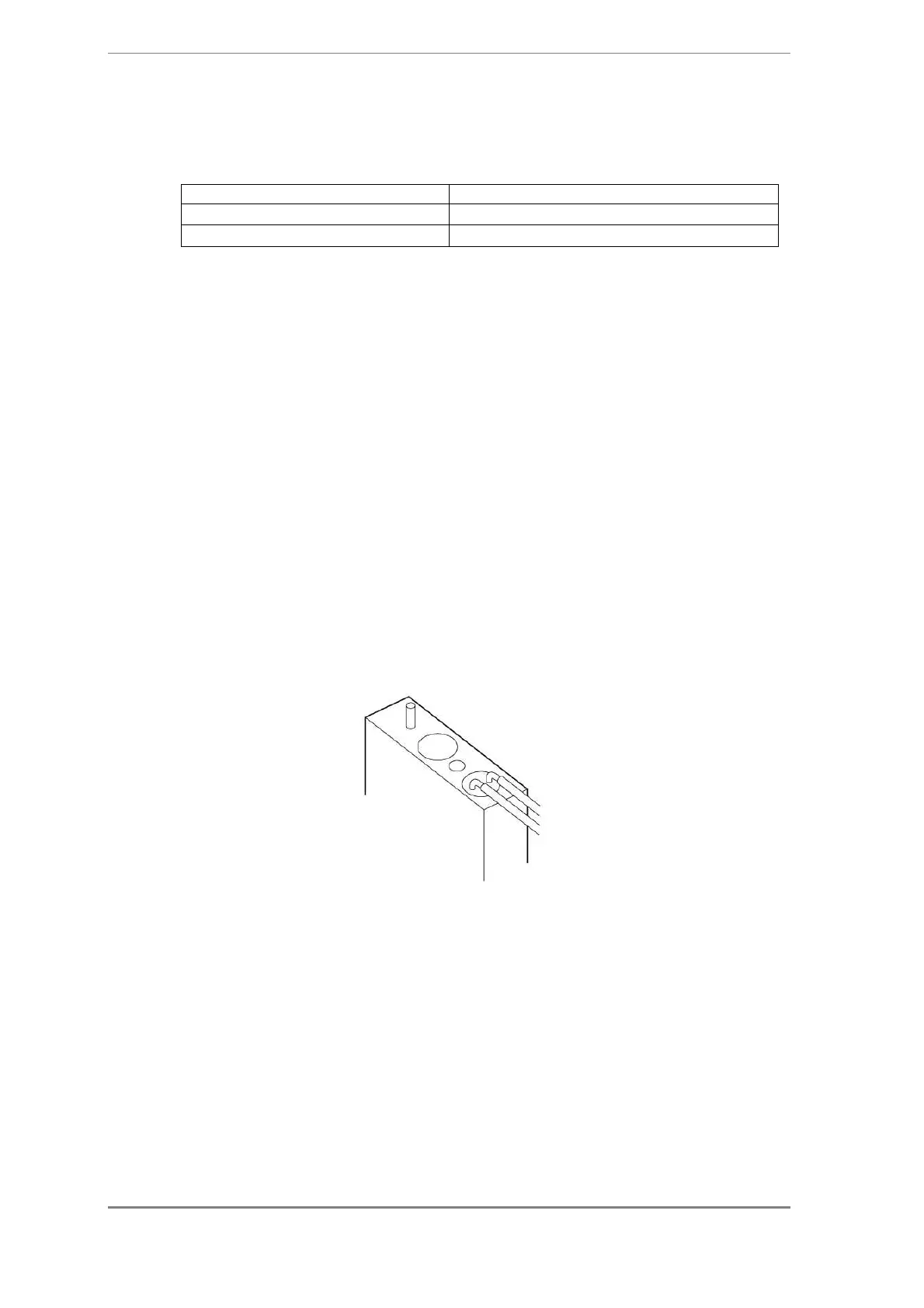

Insert the heat-sensitive material in the heater block until it hits the bottom (depth:
approx. 18 mm). Insert the heater in the heater block, with the orientation shown below,
until it hits the bottom. To prevent short-circuiting of the lead wires, bend them at points 1
to 2 mm from the bottom while pressing them so as not to apply stress to the heater
insulator.

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
