Chapter 2 Configuration of GC-2014
GC-2014 Service Manual
26

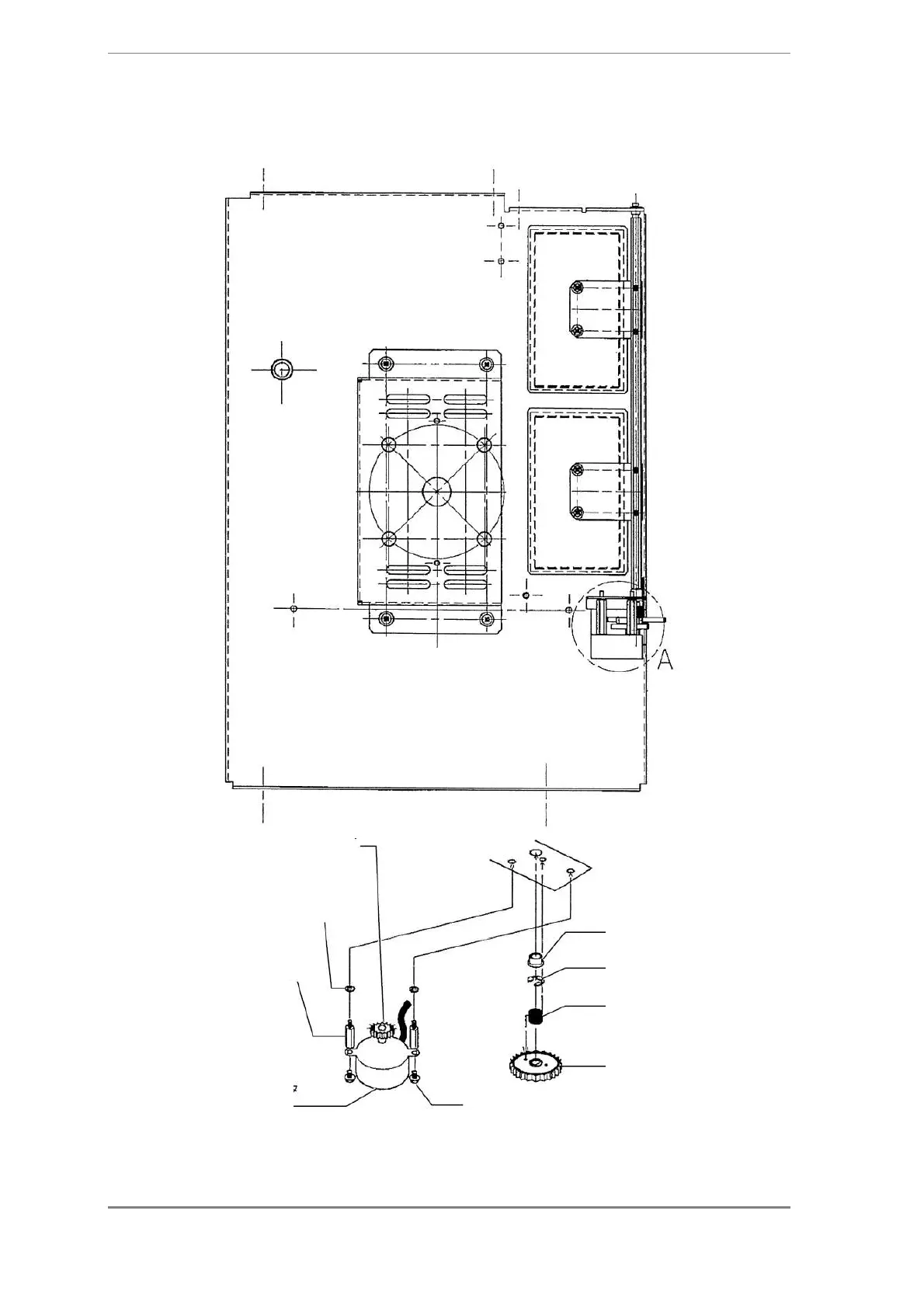

2.2.9 Structure of Oven Cooling Unit
GEAR, MOTOR, MODIFIED
S221-49480
WASHER, SUS, SPRING 2, M3
S023-77030
SPACER, SQ-25
S037-38858-65
FLAP MOTOR
S221-47652
SCREW, SUS, SEMS P3, M3
10
S020-46536
BRG, R-ARF0508
S031-40232
RETAINING RING, E
-
SHAPED, SUS 4.0
S026-66204
SPRING, FLAP GEAR
S221-49694-03
GEAR, SHAFT, MODIFIED
S221-49695
